Gel Filled 12 Core Single Mode Armoured Fiber Optic Cable GYXTA

Place of Origin China
Brand Name YUANTONG
Certification ROSH ,TLC, CCC, ISO
Model Number GYXTA 12 Core
Minimum Order Quantity 20KM
Price Negotiable
Packaging Details Wooden Drum
Delivery Time 7 days
Payment Terms L/C, D/P, T/T, Western Union
Supply Ability 500km per week
Product Details
Product Name 12 Core Metallic Strength Member Central Tube Filling-Type,Aluminium-PE Outer Jacket Fiber Optic Cable GYXTA Fiber Count 12 Core
Fiber Type G652D Cable Sheath Aluminium-PE
Cable Color Black Strength Member Metallic Strength Member
Cable Use Outdoor Loose Tube PBT
High Light

GYXTA single mode fiber optic cable

,

Gel filled fiber optic cable

Leave a Message
Product Description

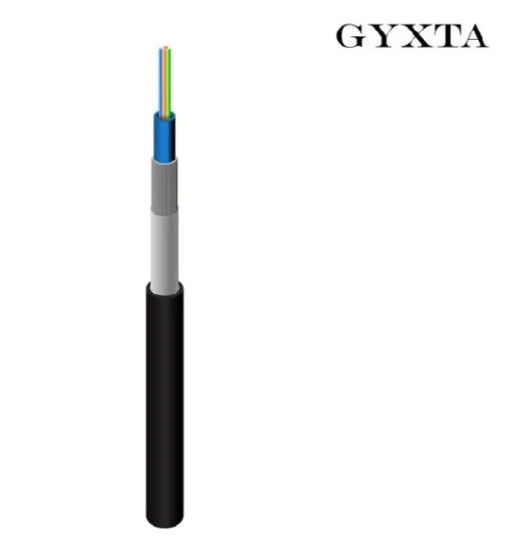

12 Core Metallic Strength Member Central Tube Filling-Type,Aluminium-PE Outer Jacket Fiber Optic Cable GYXTA



DESCRIPTION:

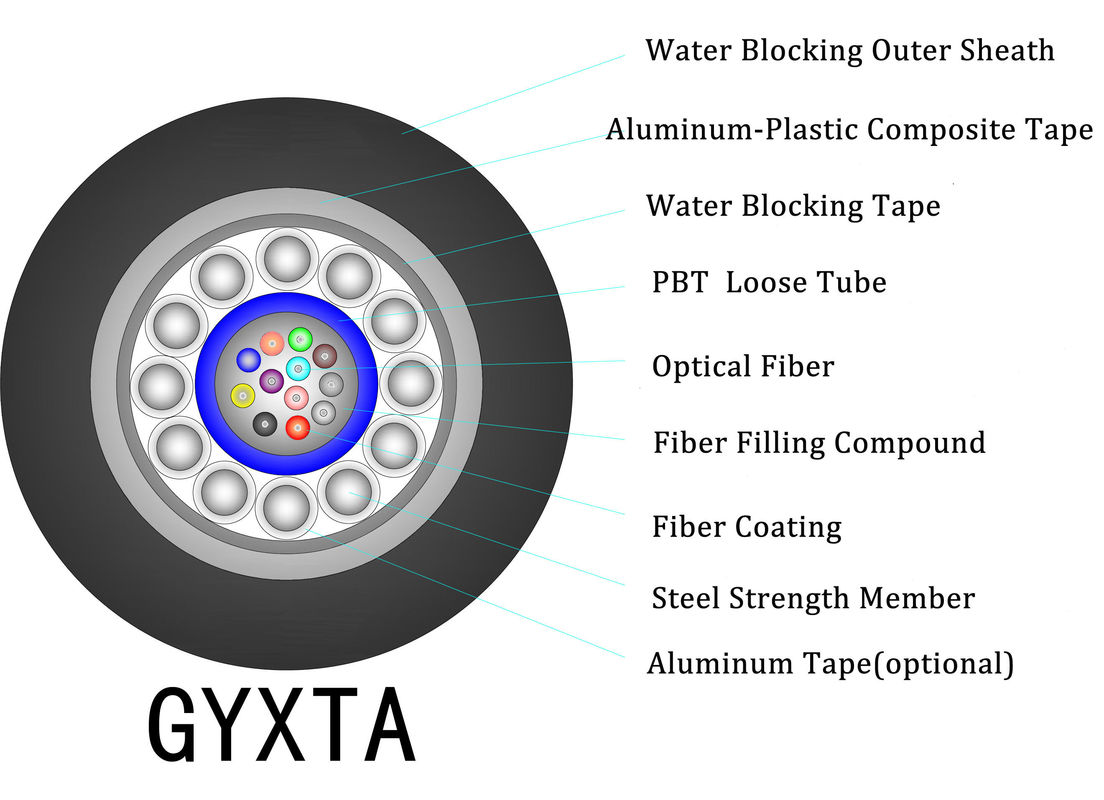

The product is a single mode or multimode optical fiber set into a loose sleeve made of high-modulus plastic, filled with water-blocking compounds. 12 Phosphating steel wires armor windings outside the loose tube and the water-blocking ointment between the twisted steel wire and the loose sleeve ensures the compact and longitudinal resistance Finally, the aluminum plastic composite belt is folded and the MDPE sheath is extruded into a cable.

FEATURES:
Excellent environment and mechanical performance
Gel-filled loose tube for better protection of fiber
12 twisted steel wires to ensure cable tensile strength and anti-gas bullets and rodent performance
Aluminum Belt Armor improves the moisture resistance of products
Good water resistance performance

APPLICATIONS:
Duct and Aerial
Telecommunication,power supply and radio&television departments
Self and Non-Self Supporting





Model Description Applications
GYXTA Metallic strength member,Central tube,Filling-type,Aluminium-PE outer jacket Overhead laying&Pipeline laying





Tensile Strength (N) Crush Resistance (N/100mm) Bned Radius
(mm)
Working Temperature(℃) Max. attenuation (dB/km) fibers OD(mm) weight kg/km
Long term short term Long term short term Static(D) Dynamic (D) Min.TA Max.TB 1310μm 1550μm
600 1500 300 1000 10 D 20 D -40℃ +60℃ ≤0.36 ≤0.22 2~24 16.0~18.0 230~270



Category Description Specifications
G.652D
Optical Specifications Attenuation @1310nm ≤0.36dB/km
@1550nm ≤0.22dB/km
Attenuation discontinuity ≤0.05 dB
Attenuation vs. Wavelength @1285~1330nm ≤0.05 dB/km
@1525~1575nm ≤0.05 dB/km
Zero Dispersion Wavelength 1300~1324nm
Zero Dispersion Slope ≤0.092ps/(nm2.km)
Dispersion @1310nm ≤3.5 ps/nm.km
@1550nm ≤18 ps/nm.km
Polarization Mode Dispersion(PMD) ≤0.2ps/km1/2
Cable Cutoff Wavelength(λcc) ≤1260nm
Effective Group Index of Refraction @1310nm 1.4675
@1550nm 1.4681
Macro bend loss (30mm radius,100turns) 1625nm ≤0.1 dB
Geometric
Specifications
Mode Field Diameter @1310nm 9.2±0.6μm
@1550nm 10.4±0.8μm
Cladding Diameter 125±1μm
Cladding Non-Circularity ≤1.0%
Coating Diameter 245±7μm
Coating/Cladding Concentricity Error ≤8μm
Core/Cladding Concentricity Error ≤0.8μm
Mechanical
Specifications
Proof Test level ≥1.0%
Fiber Curl Radius ≥4.0m
Peak Coating Strip Force 1.3~8.9N



FAQ
1. Are you the real manufacturer?
Yes. We are the real manufacturer with 18 years' history.

2. What is your fiber brand ?
Corning, SEI, YOFC, FiberHome, etc

3. Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.
4.What is your warranty period?
25 years for fiber optic cable

5. Which kind of certification you have ?
ISO9001, SGS, 3C Anatel.

6. What is your delivery time?
Usually within 2-3 working days

7. What about your annual production capacity?
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.

8. What is your payment way?
T/T, L/C, Western Union and Paypal.

9. Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.

10. Can you supply your cable test value form?
-Yes. After finishing production , we can supply if you ask.

11. Do your factory inspect every roll of cables?
-Yes. we factory do 100% inspection per order.
