Outdoor Frp Ftth 2 Core Fiber Drop Cable Non Metallic G657a2

Place of Origin china
Brand Name YUANTONG
Certification ISO,ANATEL,ROSH,TLC,CCC
Model Number GJYXFCH-2B
Minimum Order Quantity 20km
Price negotiated
Packaging Details wooden drum plus carton box
Delivery Time within 7 working days
Payment Terms L/C, T/T, Western Union
Supply Ability 1000km per week
Product Details
Product Name 2 Core Outdoor Optical Fiber Cable Non Metallic Frp Ftth Drop Cable Fiber Count 2 Core
Fiber Type G657a2 Fiber Color Blue
Strengtg Member FRP Messenger 1.0/1.2mm Steel Rod
Cable Color Black Cable Sheath LSZH
Cable Size 5mm*2mm OEM Supported
High Light

Ftth 2 core fiber drop cable

,

frp 2 core fiber drop cable

,

frp fiber optic cable

Leave a Message
Product Description

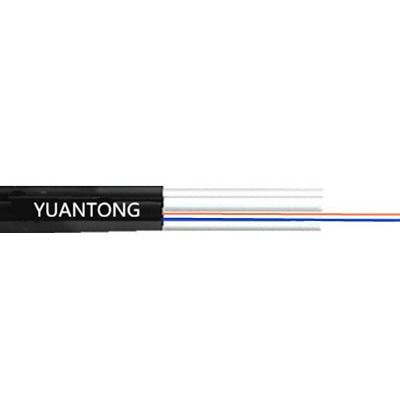

2 Core Outdoor Optical Fiber Cable Non Metallic Frp Ftth Drop Cable





Product Description

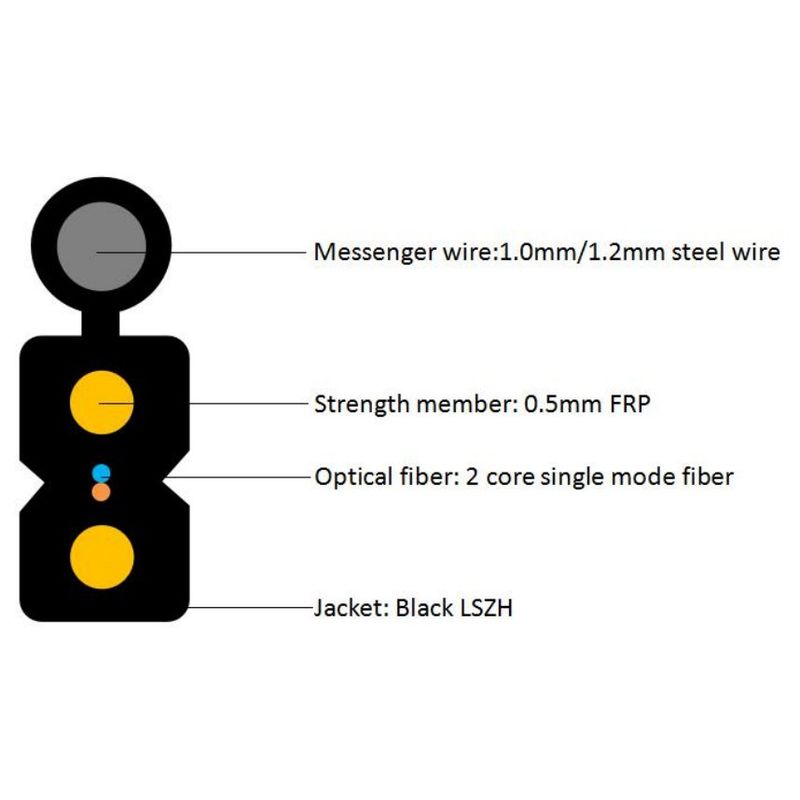

Two optical fiber unit is positioned in the center . Two parallel FRP are placed at the two sides. one steel wires as the additional strength member is also applied. Then the cable is completed with a black or color LSZH sheath.The cable is widely use in FTTH project.


Characteristics
1. special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property;
2. Two parallel steel strength members ensure good performance of crush resistance to protect the fiber;
3. Single steel wire or messengers as the additional strength member ensures good performance of tensile strength;
4. Simple structure, light weight and high practicability;
5. Novel flute design, easily strip and splices implify the installation and maintenance;
6. Low smoke, zero halogen and flame retardant sheath.


Applications
1. Used in access network or as access cable from outdoor to indoor in customer premises network;
2. Used as access building cable in premises distribution system, especially used in indoor or outdoor aerial access cabling.


structure and technical parameters



Item   Description
Fiber count 01/02 Fiber 04 fiber
Fiber type G657A1/A2
Messenger 1.0/1.1/1.2mm steel/FRP
Strength member 2*0.45mm FRP/Steel
Dimension of cable 2.0(±0.1)mm/5.0(±0.2)mm 2.2(±0.1)mm/5.5(±0.2)mm
Cable weight 22kg+1kg





Item
Installation temperature -20/+60°C
Operation and transport temperature -40/+70°C
Min Bending Radius(mm) Long term: 15D
Short term: 30D
Allowable Tensile Strength(N) Long term: 300
  Short term: 600
Crush Lord(N/100mm) Long term: 1000
  Short term: 2200



Item Unit Description
Fiber model -- SM- G657a2
Condition nm 1310 /1550
Attenuation Db/km ≤3.5/ 0.21
Dispersion 1310nm ≤ 18
1550nm ≤ 22
Zero dispersion wavelength nm 1300 -1324
Zero dispersion slope Ps/(nm²xkm) ≤ 0.092
PMD Maximum individual fiber [ps/√km] ≤ 0.2
PMD Design link value ps/(nm²xkm) ≤ 0.08
Fiber cutoff wavelength λC nm 1180 ≤1330
Cable cutoff wavelength λcc nm ≤ 1260
MFD 1310nm(μm) 8.6 ±0.4
1550nm(μm) 9.8 ±0.5
Step(mean of bidirectional measurement) dB ≤ 0.05
Irregularities over fiber length and point discontinuity dB ≤ 0.05
Difference backscatter coefficient dB/km ≤ 0.03
Attenuation uniformity dB/km ≤ 0.01
Cladding diameter μm 125.0 ±0.1
Cladding non-circularity % ≤ 0.7
Coating diameter μm 242 ±7


Outdoor Frp Ftth 2 Core Fiber Drop Cable Non Metallic G657a2 0

Outdoor Frp Ftth 2 Core Fiber Drop Cable Non Metallic G657a2 1

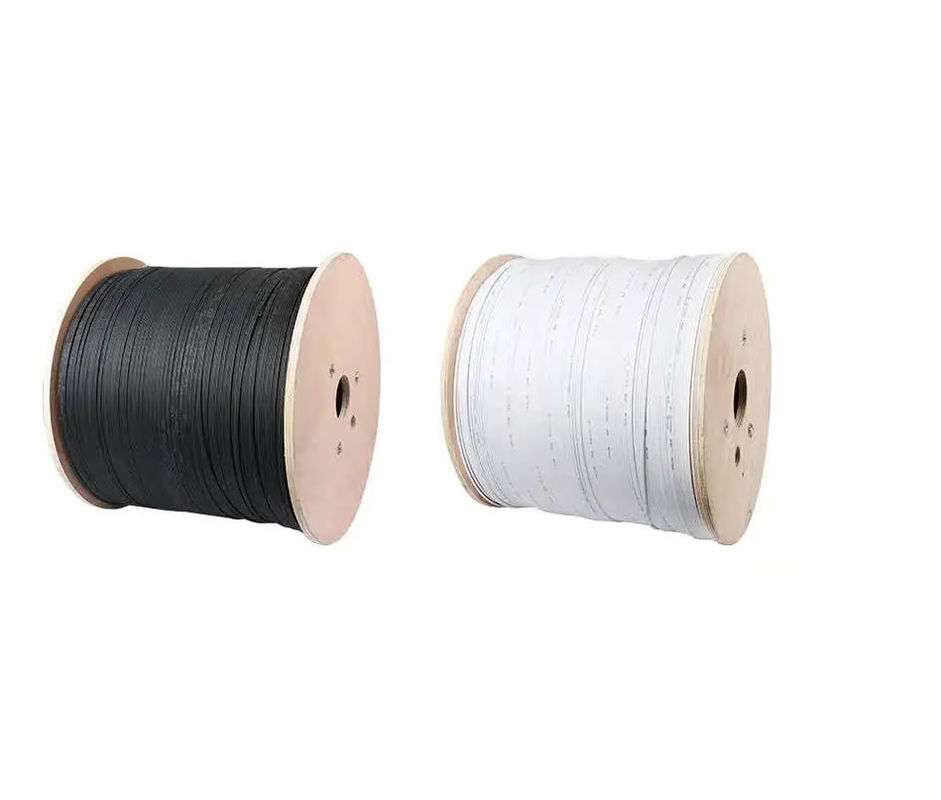

Packing and Length
Length :1000m/roll and 2000m/roll; Other length available on request.
Packing:

Drum: can be customized
Outdoor Frp Ftth 2 Core Fiber Drop Cable Non Metallic G657a2 2

Factory Introduction
Outdoor Frp Ftth 2 Core Fiber Drop Cable Non Metallic G657a2 3

Certifiacte

Outdoor Frp Ftth 2 Core Fiber Drop Cable Non Metallic G657a2 4


Exhibition home and abroad
Outdoor Frp Ftth 2 Core Fiber Drop Cable Non Metallic G657a2 5


FAQ

1. Are you the real manufacturer?

Yes. We are the real manufacturer with 18 years' history.



2. What is your fiber brand ?

Corning, SEI, YOFC, FiberHome, etc



3. Can you accept small order?

Yes, small order is available .We support new project of our customers as we know business is always from small order.

4.What is your warranty period?

25 years for fiber optic cable



5. Which kind of certification you have ?

ISO9001, SGS, 3C Anatel.



6. What is your delivery time?

Usually within 2-3 working days



7. What about your annual production capacity?

Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;

FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;

Patch Cord/Pigtails, it is 12,400,000 Pieces per year.



8. What is your payment way?

T/T, L/C, Western Union and Paypal.



9. Can you supply customized products and logo?

-Yes. We supply OEM&ODM service. You can send us your drawing.



10. Can you supply your cable test value form?

-Yes. After finishing production , we can supply if you ask.



11. Do your factory inspect every roll of cables?

-Yes. we factory do 100% inspection per order.
