GYXTA Outdoor Armored Fiber Optic Cable

GYXTA Outdoor Armored Fiber Optic Cable

GYXTA Outdoor Fiber Optic Cable

48C Outdoor Fiber Optic Cable

Place of Origin:

China

Brand Name:

YUANTONG

Certification:

ROSH ,TLC, CCC, ISO

Model Number:

GYXTA 48 Core

Contact Us

Request A Quote
Product Details
Product Name:
48 Core Metallic Strength Member Central Tube Filling-Type,Aluminium-PE Outer Jacket Fiber Optic Cable GYXTA
Fiber Count:
48 Core
Fiber Type:
G652D
Cable Sheath:
Aluminium-PE
Cable Color:
Black
Strength Member:
Metallic Strength Member
Cable Use:
Outdoor
Loose Tube:
PBT
Payment & Shipping Terms
Minimum Order Quantity
20KM
Price
Negotiable
Packaging Details
Wooden Drum
Delivery Time
7 days
Payment Terms
L/C, D/P, T/T, Western Union
Supply Ability
500km per week
Product Description

48 Core Metallic Strength Member Central Tube Filling-Type,Aluminium-PE Outer Jacket Fiber Optic Cable GYXTA

Specifications:

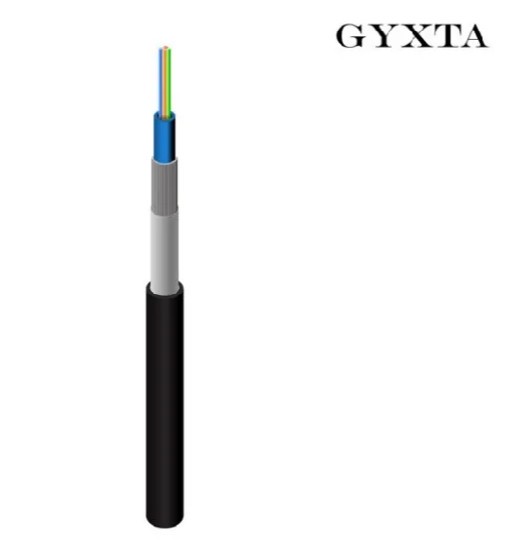

GYXTA optical fiber cable
Central tube,
AL-PE sheath
Used for aerial & duct outer door telecommunication optical fiber cabl
GYXTA optical fiber cable
Metal strength member, Central tube type, gelly filled, Polyethylene(PE) sheath, Outer door optical fiber cable for telecommunication
Technical characteristics:
The unique fiber excess length control method provides the cable with excellent tension and environmental properties
The loose tube material itself have good water-resistant properties of solution and higher intensity, Special jelly filled in the loose tube provides the fibers with critical protection
Excellent crush resistance performance and flexible performance
The out PE sheath provides good anti-UV radiation performance
Adopt the following measures to ensure the waterproof properties of optical fiber cable
Steel wires strengthen
The unique waterproof compounds filled in the loose tube
Safety-filled cable core
Double-sided plastic strip (PSP) moisture-proof layer




ModelDescriptionApplications
GYXTAMetallic strength member,Central tube,Filling-type,Aluminium-PE outer jacketOverhead laying&Pipeline laying



Tensile Strength (N)Crush Resistance (N/100mm)Bned Radius
(mm)
Working Temperature(℃)Max. attenuation (dB/km)fibersOD(mm)weight kg/km
Long termshort termLong termshort termStatic(D)Dynamic (D)Min.TAMax.TB1310μm1550μm
6001500300100010 D20 D-40℃+60℃≤0.36≤0.222~2416.0~18.0230~270



CategoryDescriptionSpecifications
G.652D
Optical SpecificationsAttenuation@1310nm≤0.36dB/km
@1550nm≤0.22dB/km
Attenuation discontinuity≤0.05 dB
Attenuation vs. Wavelength@1285~1330nm≤0.05 dB/km
@1525~1575nm≤0.05 dB/km
Zero Dispersion Wavelength1300~1324nm
Zero Dispersion Slope≤0.092ps/(nm2.km)
Dispersion@1310nm≤3.5 ps/nm.km
@1550nm≤18 ps/nm.km
Polarization Mode Dispersion(PMD)≤0.2ps/km1/2
Cable Cutoff Wavelength(λcc)≤1260nm
Effective Group Index of Refraction@1310nm1.4675
@1550nm1.4681
Macro bend loss (30mm radius,100turns) 1625nm≤0.1 dB
Geometric
Specifications
Mode Field Diameter@1310nm9.2±0.6μm
@1550nm10.4±0.8μm
Cladding Diameter125±1μm
Cladding Non-Circularity≤1.0%
Coating Diameter245±7μm
Coating/Cladding Concentricity Error≤8μm
Core/Cladding Concentricity Error≤0.8μm
Mechanical
Specifications
Proof Test level≥1.0%
Fiber Curl Radius≥4.0m
Peak Coating Strip Force1.3~8.9N


FAQ
1. Are you the real manufacturer?
Yes. We are the real manufacturer with 18 years' history.
2. What is your fiber brand ?
Corning, SEI, YOFC, FiberHome, etc
3. Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.
4.What is your warranty period?
25 years for fiber optic cable
5. Which kind of certification you have ?
ISO9001, SGS, 3C Anatel.
6. What is your delivery time?
Usually within 2-3 working days
7. What about your annual production capacity?
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.
8. What is your payment way?
T/T, L/C, Western Union and Paypal.
9. Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.
10. Can you supply your cable test value form?
-Yes. After finishing production , we can supply if you ask.
11. Do your factory inspect every roll of cables?
-Yes. we factory do 100% inspection per order.
