FRP 24core ADSS Fiber Optic Cable Arimid Yarn Member For Aerial

24core Arimid Yarn Member ADSS Fiber Optic Cable For Aerial

quick detail

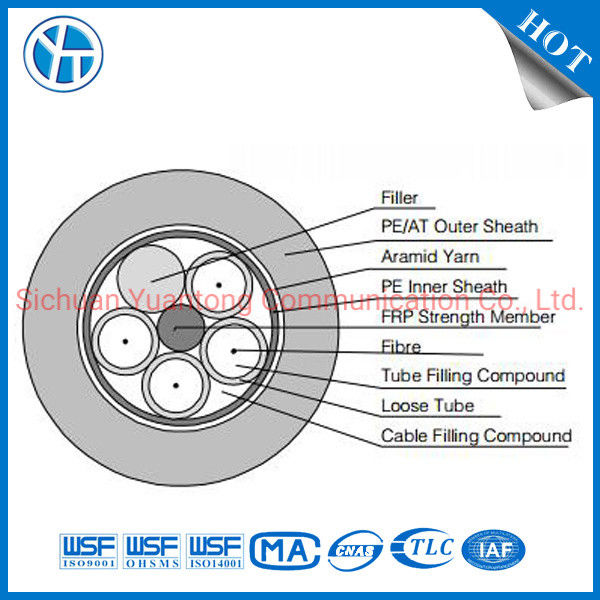

ADSS Cable (All Dielectric Self-supporting Aerial Cable) is loose tube stranded. Fibres are positioned into loose tube made of high modulus plastics. The tubes are filled with a water-resistant around FRP(Fibre Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound, it is covered witha thin polyethylene (PE) inner sheath. After two layers of Aramid yarns are applied in two directions over the inner sheath as strength member, the cable is completed with PE or AT outer sheath.After two layers of Aramid yarns are applied in two directions over the inner sheath as strength member, the cable is completed with PE or AT outer sheath.

Characteristics

1. Small cable diameter, light weight, 1500m span, low attached load on tower

2. Tensile strength is over 90KN

3. Non-metal structure, good insulation, anti-thunder

4. Fine production technology, even force for aramid fiber, with superior stress flexibility

5. Adapt for bad climate

6. May construct without power cut, a power line failure doesn’t influence cable’s normal transfer

7. Tensile units are elastic modulus aramid fiber

8. Electric trace resistant outer sheath is adopted to run safely under a circumstance of space electric

field (E)≤25KV/m

Application

1. Long distance communication and local area network, especially suitable for long span environment,complex area.

2. Erect on the same pole with power line in new and old power line.
