GYTS Single Mode Armored Fiber Optic Cable , 12-72 Anti Rodent Fiber Optic Cable

GYTS Single Mode Armored Fiber Optic Cable , 12-72 Anti Rodent Fiber Optic Cable

GYTS anti rodent fiber optic cable

72 Fiber Optic Cable

Place of Origin:

CHINA

Brand Name:

YUANTONG

Certification:

ROSH ,TLC, CCC, ISO

Model Number:

ADSS -24

Contact Us

Request A Quote
Product Details
Fiber Count:
24core
Fiber Type:
G652d
Loose Tube:
PBT
Cable Sheath:
HDPE
Cable Color:
Black
CSM:
FRP
Strength Member:
Steel Tape
Cable Use:
Aerial
Cable Type:
Armored Cable
Sheath:
Double Sheath
Payment & Shipping Terms
Minimum Order Quantity
20km
Price
usd 0.38/m
Packaging Details
wooden drum
Delivery Time
7 days
Payment Terms
L/C, D/P, T/T, Western Union
Supply Ability
500km per week
Product Description

GYTS Outdoor Armored Waterproof 12-72 Optical Fiber Cable anti-rodent



Characteristics
· Good mechanical and temperature performance
· High strength looes tube that is hydrolysis resistant
· Special tube filling compound ensure a critical protection of fiber
· Specially designed compact structure is good at preventing loose tubes from shrinking
· Crush resistance and flexibility
· PE sheath protects cable from ultraviolet radiation
· The following measures are taken to ensure the cable watertight:
- Steel wire used as the central strength member
- Loose tube filling compound
- 100% cable core filling
- PSP enhancing moisture-proof

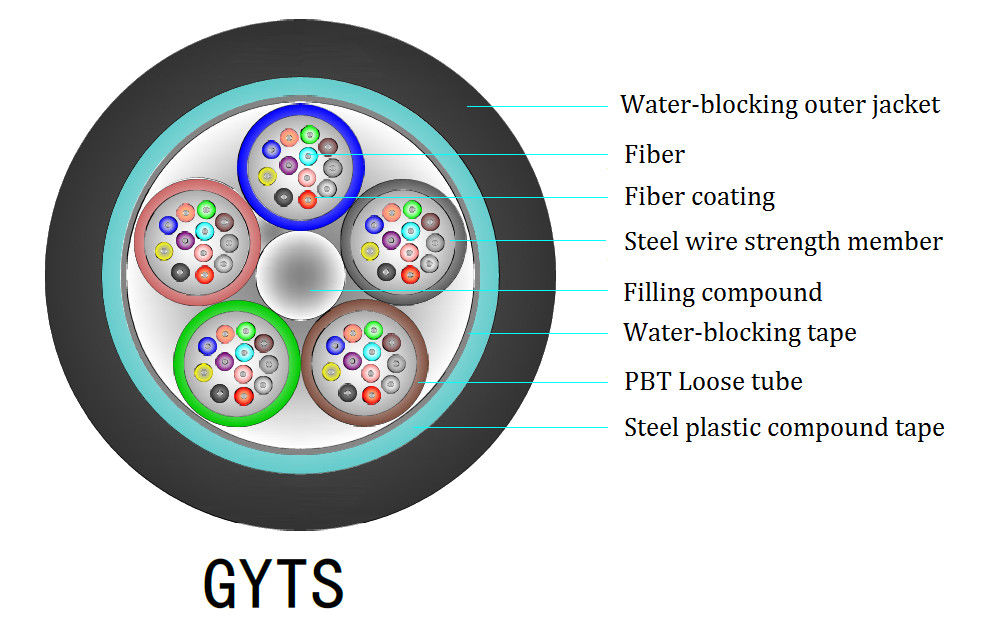

GYTS Single Mode Armored Fiber Optic Cable , 12-72 Anti Rodent Fiber Optic Cable 0

Description
The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. The PSP is longitudinally applied over the cable core, which is filled with the filling compound to protect it from water ingress. The cable is completed with a PE sheath.





Standards
GYTS cable complies with Standard YD/T 901-2001as well as IEC 60794-1.


Optical Characteristics

  G.652 G.655 50/125μm 62.5/125μm
Attenuation
(+20ºC)
@850nm     3.0 dB/km 3.0 dB/km
@1300nm     1.0 dB/km 1.0 dB/km
@1310nm 0.36 dB/km 0.40 dB/km
@1550nm 0.22 dB/km 0.23dB/km
Bandwidth (Class A) @850nm     500 MHz·km 200 MHz·km
@1300nm     1000 MHz·km 600 MHz·km
Numerical Aperture     0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelengthλcc 1260nm 1480nm



Technical Parameters

Cable Type Fiber Count Tubes Fillers Cable Diameter
mm
Cable Weight kg/km Tensile Strength
Long/Short Term N
Crush Resistance
Long/Short Term
N/100mm
Bending Radius
Static
/Dynamic
mm
GYTS-2~6 2~6 1 4 10.2 116 600/1500 300/1000 10D/20D
GYTS-8~12 8~12 2 3 10.2 116 600/1500 300/1000 10D/20D
GYTS-14~18 14~18 3 2 10.2 116 600/1500 300/1000 10D/20D
GYTS-20~24 20~24 4 1 10.2 116 600/1500 300/1000 10D/20D
GYTS-26~30 26~30 5 0 10.2 116 600/1500 300/1000 10D/20D
GYTS-32~36 32~36 6 0 10.6 129 1000/3000 300/1000 10D/20D
GYTS-38~48 38~48 4 1 11.2 141 1000/3000 300/1000 10D/20D
GYTS-50~60 50~60 5 0 11.2 141 1000/3000 300/1000 10D/20D
GYTS-62~72 62~72 6 0 12 159 1000/3000 300/1000 10D/20D
GYTS-74~84 74~84 7 1 13.6 209 1000/3000 300/1000 10D/20D
GYTS-86~96 86~96 8 0 13.6 209 1000/3000 300/1000 10D/20D
GYTS-98~108 98~108 9 1 15.4 232 1000/3000 300/1000 10D/20D
GYTS-110~120 110~120 10 0 15.4 232 1000/3000 300/1000 10D/20D
GYTS-122~132 122~132 11 1 17.2 280 1000/3000 300/1000 10D/20D
GYTS-134~144 134~144 12 0 17.2 280 1000/3000 300/1000 10D/20D

Storage/Operating Temperature : -40ºC to + 70ºC


Drum: can be customized

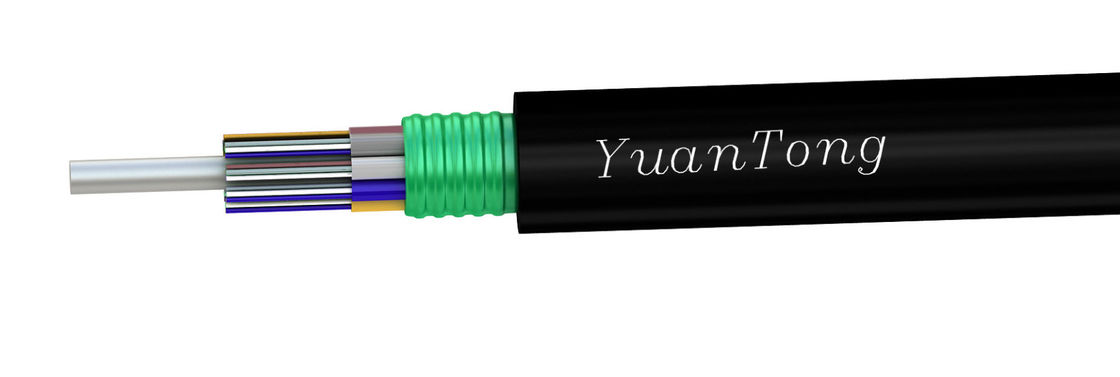

GYTS Single Mode Armored Fiber Optic Cable , 12-72 Anti Rodent Fiber Optic Cable 1

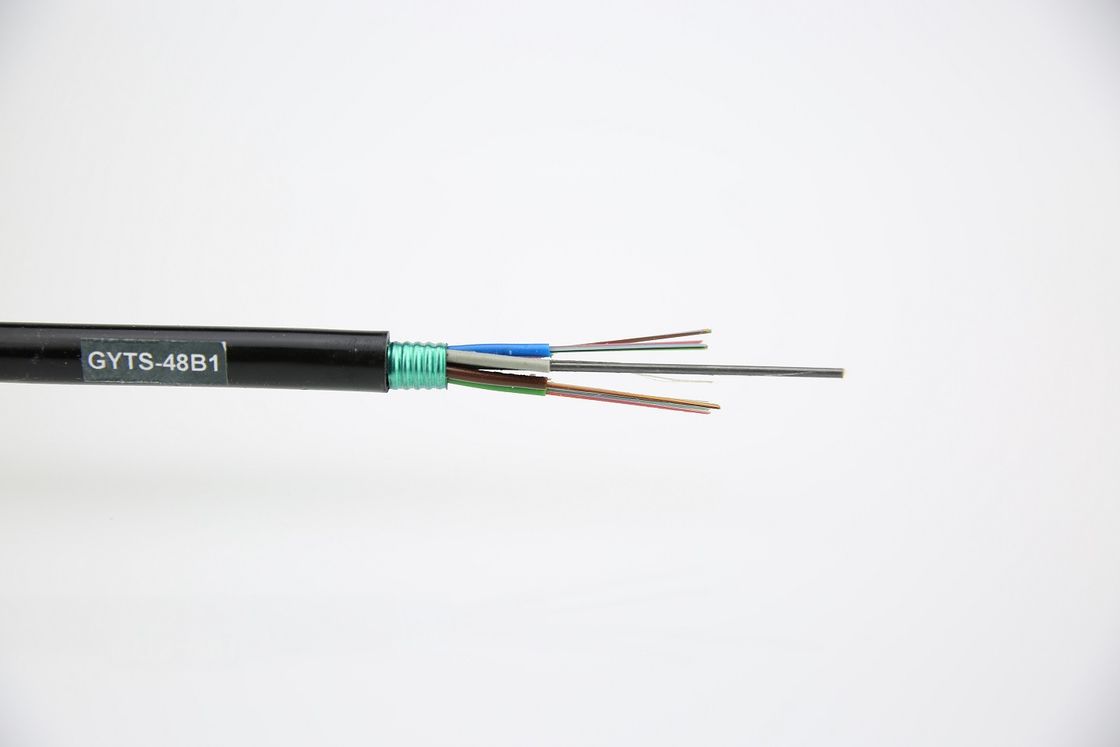

GYTS Single Mode Armored Fiber Optic Cable , 12-72 Anti Rodent Fiber Optic Cable 2
