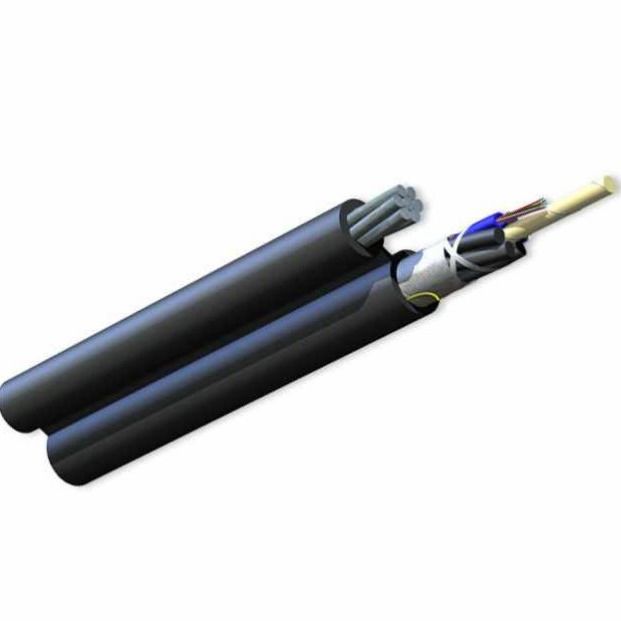

250um 12 Core GYXTC8S Figure 8 Fiber Optic Cable For Direct Buried

250um 12 Core GYXTC8S Figure 8 Fiber Optic Cable For Direct Buried

GYXTC8S Figure 8 Fiber Optic Cable

250um Figure 8 Fiber Optic Cable

Place of Origin:

China

Brand Name:

YUANTONG

Certification:

ROSH ,TLC, CCC, ISO

Model Number:

GYXTC8S 12 Core

Contact Us

Request A Quote
Product Details
Product Name:
12 Core Figure-8 Steel PE Sheath Communication Outdoor Fiber Optic Cable GYXTC8S
Fiber Count:
12 Core
Fiber Type:
G652D
Cable Sheath:
HDPE
Cable Color:
Blue Green Orange Brown
Strength Member:
Metallic Strength Member
Cable Use:
Outdoor
OEM:
Supported
Payment & Shipping Terms
Minimum Order Quantity
20KM
Price
Negotiable
Packaging Details
Wooden Drum Plus Carton
Delivery Time
7 days
Payment Terms
L/C, D/P, T/T, Western Union
Supply Ability
500km per week
Product Description

12 Core Figure-8 Steel PE sheath Communication Outdoor Fiber Optic Cable GYXTC8S



Description:

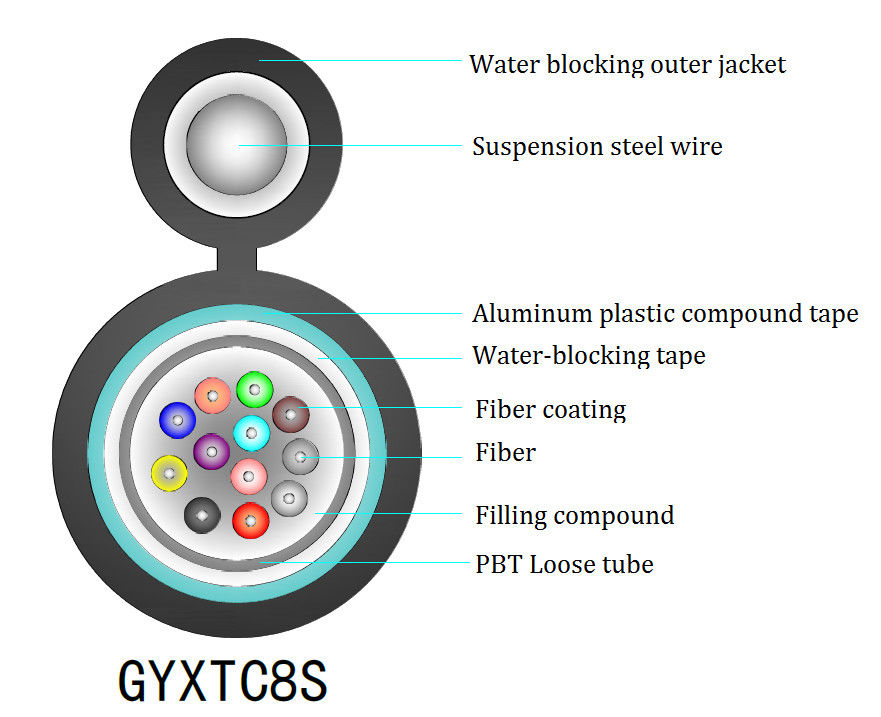

The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire locates in the center of core as a metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular cable core. After an Aluminum Polyethylene Laminate (APL) moisture barrier is applied around the cable core, this part of cable accompanied with the stranded wires as the supporting part are completed with a polyethylene (PE) sheath to be figure 8 structures.



Features:

  • High tensile strength of stranded wires meet the requirement of self-supporting and reduce the installation cost.
  • Good mechanical and temperature performance
  • High strength loose tube that is hydrolysis resistant
  • Special tube filling compound ensure a critical protection of fiber



Applications:

  • Suitable for direct buried and duct installation
  • Outside plant environments
Model Description Applications Tensile Strength (N) Crush Resistance (N/100mm)
Long term short term Long term short term
GYXTC8S Metallic strength member,Outdoor loose tube, fig.8 self-supporting, Steel PE sheath communication outdoor optical cable Self-supporting overhead laying 1000 3000 300 1000



Bned Radius
(mm)
Working Temperature(℃) Max. attenuation (dB/km) fibers OD(mm) weight kg/km
Static(D) Dynamic (D) Min.TA Max.TB 1310μm 1550μm
10 D 20 D -40℃ +60℃ ≤0.36 ≤0.22 2~12 6.5~9.5 90~110



Category Description Specifications
G.652D
Optical Specifications Attenuation @1310nm ≤0.36dB/km
@1550nm ≤0.22dB/km
Attenuation discontinuity ≤0.05 dB
Attenuation vs. Wavelength @1285~1330nm ≤0.05 dB/km
@1525~1575nm ≤0.05 dB/km
Zero Dispersion Wavelength 1300~1324nm
Zero Dispersion Slope ≤0.092ps/(nm2.km)
Dispersion @1310nm ≤3.5 ps/nm.km
@1550nm ≤18 ps/nm.km
Polarization Mode Dispersion(PMD) ≤0.2ps/km1/2
Cable Cutoff Wavelength(λcc) ≤1260nm
Effective Group Index of Refraction @1310nm 1.4675
@1550nm 1.4681
Macro bend loss (30mm radius,100turns) 1625nm ≤0.1 dB
Geometric
Specifications
Mode Field Diameter @1310nm 9.2±0.6μm
@1550nm 10.4±0.8μm
Cladding Diameter 125±1μm
Cladding Non-Circularity ≤1.0%
Coating Diameter 245±7μm
Coating/Cladding Concentricity Error ≤8μm
Core/Cladding Concentricity Error ≤0.8μm
Mechanical
Specifications
Proof Test level ≥1.0%
Fiber Curl Radius ≥4.0m
Peak Coating Strip Force 1.3~8.9N

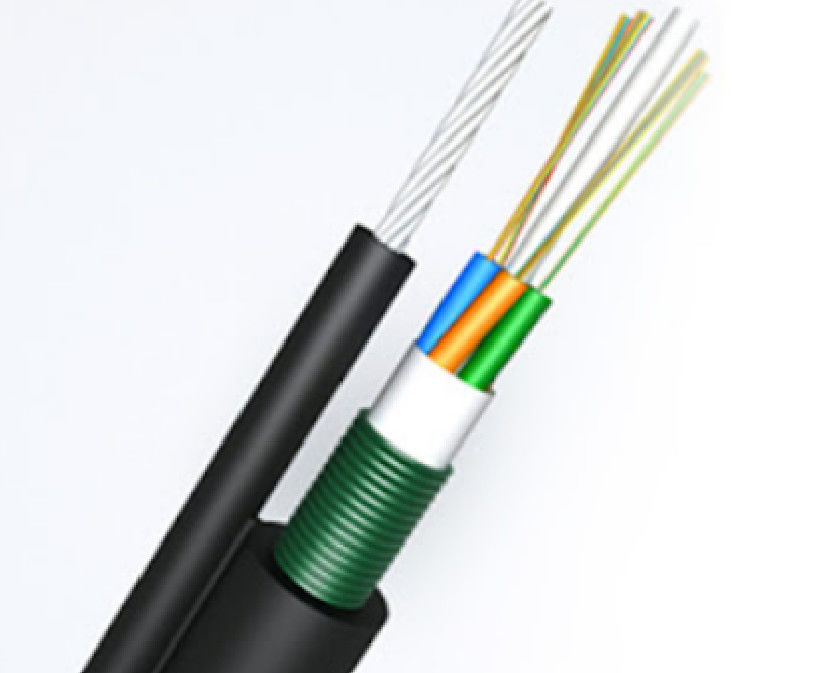

250um 12 Core GYXTC8S Figure 8 Fiber Optic Cable For Direct Buried 0
