CSM Aluminium Armored Figure 8 Fiber Optic Cable 48 Core GYFTC8A

CSM Aluminium Armored Figure 8 Fiber Optic Cable 48 Core GYFTC8A

CSM Figure 8 Fiber Optic Cable

GYFTC8A Figure 8 Fiber Optic Cable

Place of Origin:

China

Brand Name:

YUANTONG

Certification:

ROSH ,TLC, CCC, ISO

Model Number:

GYFTC8A 48 Core

Contact Us

Request A Quote
Product Details
Product Name:
48 Core Non-metallic Cable Core Fig-8 Aluminium-armored PE Sheath Communication Outdoor Fiber Optic Cable GYFTC8A
Fiber Count:
48 Core
Fiber Type:
G652D
Cable Sheath:
Aluminum PE
Cable Color:
Blue Green Orange Brown
Strength Member:
Metallic Strength Member
Cable Use:
Outdoor
OEM:
Supported
Payment & Shipping Terms
Minimum Order Quantity
20KM
Price
Negotiable
Packaging Details
Wooden Drum
Delivery Time
7 days
Payment Terms
L/C, D/P, T/T, Western Union
Supply Ability
500km per week
Product Description

48 Core Non-metallic Cable Core Fig-8 Aluminium-armored PE Sheath Communication Outdoor Fiber Optic Cable GYFTC8A

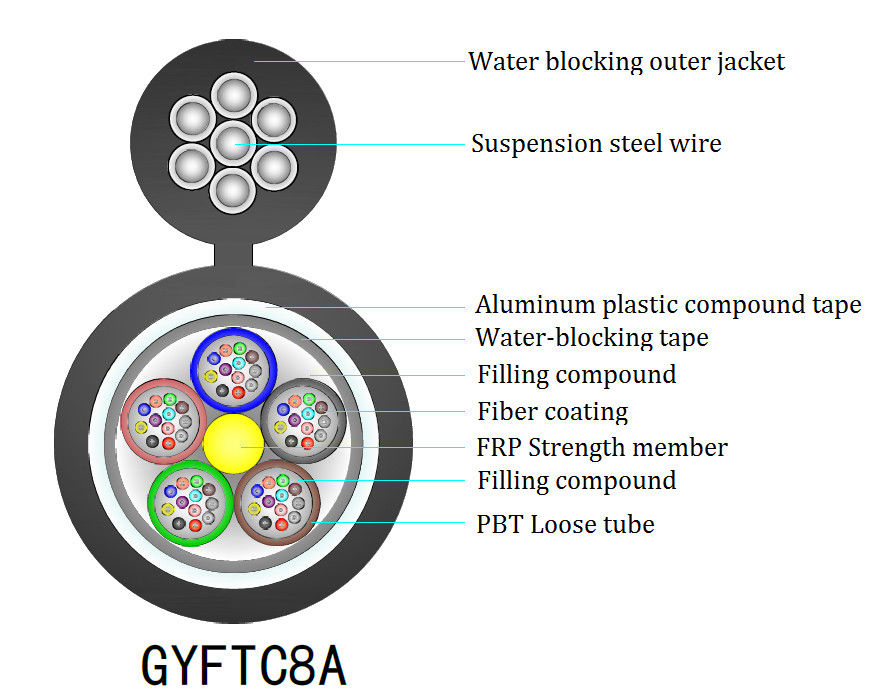

Description:
1. Central Strength Member(CSM): Glass fiber reinforced plastic rod (GFRP), coated with polyethylene when needed.
2. Filler Elements: thermoplastic rods.
3. Ripcord
4. Longitudinal Water Blocking Material: cable filling compound.
5. Loose Tube: thermoplastic material, containing optical fibers and filled with gel.
6. Moisture-proof: laminated aluminum tape.
7. Outer Sheath: black polyethylene.
8. Messenger: stranded steel wires.


Application:
Long distance communication, local communication, CATV, computer network transmission system, etc.


Model Description Applications Tensile Strength (N) Crush Resistance (N/100mm)
Long term short term Long term short term
GYFTC8A 48 Core Metallic strength member,Outdoor layer filling loose tube,Non-metallic cable core, fig.8 self-supporting, Aluminium-armored, PE sheath communication outdoor optical cable Self-supporting overhead laying 2000 5000 300 1000




Bned Radius
(mm)
Working Temperature(℃) Max. attenuation (dB/km) fibers OD(mm) weight kg/km
Static(D) Dynamic (D) Min.TA Max.TB 1310μm 1550μm
10 D 20 D -40℃ +60℃ ≤0.36 ≤0.22 2~144 9.5~18.3 85~186




Category Description Specifications
G.652D
Optical Specifications Attenuation @1310nm ≤0.36dB/km
@1550nm ≤0.22dB/km
Attenuation discontinuity ≤0.05 dB
Attenuation vs. Wavelength @1285~1330nm ≤0.05 dB/km
@1525~1575nm ≤0.05 dB/km
Zero Dispersion Wavelength 1300~1324nm
Zero Dispersion Slope ≤0.092ps/(nm2.km)
Dispersion @1310nm ≤3.5 ps/nm.km
@1550nm ≤18 ps/nm.km
Polarization Mode Dispersion(PMD) ≤0.2ps/km1/2
Cable Cutoff Wavelength(λcc) ≤1260nm
Effective Group Index of Refraction @1310nm 1.4675
@1550nm 1.4681
Macro bend loss (30mm radius,100turns) 1625nm ≤0.1 dB
Geometric
Specifications
Mode Field Diameter @1310nm 9.2±0.6μm
@1550nm 10.4±0.8μm
Cladding Diameter 125±1μm
Cladding Non-Circularity ≤1.0%
Coating Diameter 245±7μm
Coating/Cladding Concentricity Error ≤8μm
Core/Cladding Concentricity Error ≤0.8μm
Mechanical
Specifications
Proof Test level ≥1.0%
Fiber Curl Radius ≥4.0m
Peak Coating Strip Force 1.3~8.9N




FAQ
1. Are you the real manufacturer?
Yes. We are the real manufacturer with 18 years' history.

2. What is your fiber brand ?
Corning, SEI, YOFC, FiberHome, etc

3. Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.
4.What is your warranty period?
25 years for fiber optic cable

5. Which kind of certification you have ?
ISO9001, SGS, 3E, Anatel.

6. What is your delivery time?
Usually within 2-3 working days

7. What about your annual production capacity?
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.

8. What is your payment way?
T/T, L/C, Western Union and Paypal.

9. Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.

10. Can you supply your cable test value form?
-Yes. After finishing production , we can supply if you ask.

11. Do your factory inspect every roll of cables?
-Yes. we factory do 100% inspection per order.

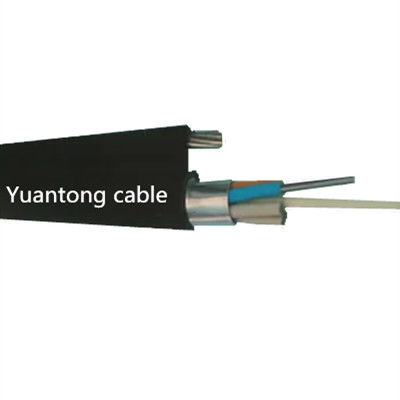

CSM Aluminium Armored Figure 8 Fiber Optic Cable 48 Core GYFTC8A 0

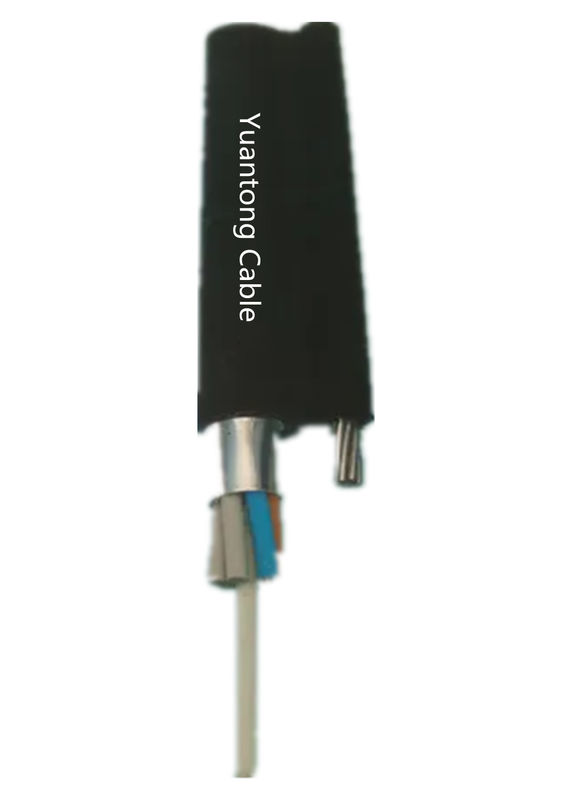

CSM Aluminium Armored Figure 8 Fiber Optic Cable 48 Core GYFTC8A 1
