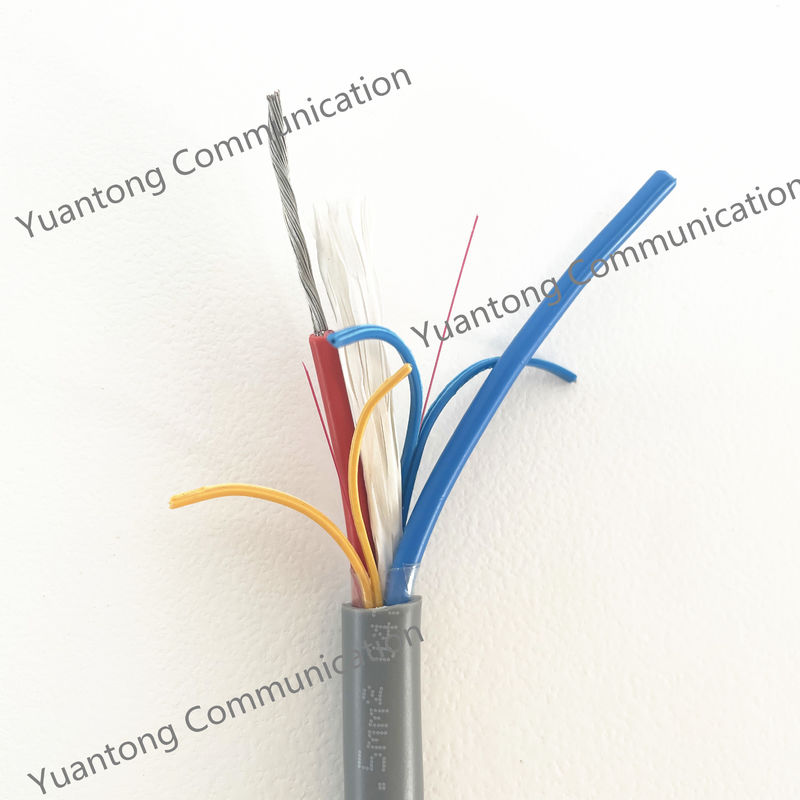

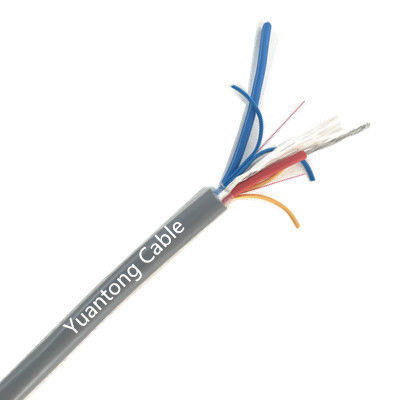

FTTH Hybrid Composite Cable , G657a2 LSZH Fiber Copper Hybrid Cable

FTTH Hybrid Composite Cable , G657a2 LSZH Fiber Copper Hybrid Cable

G657a2 Hybrid Composite Cable

LSZH Hybrid Composite Cable

FTTH fiber copper hybrid cable

Place of Origin:

china

Brand Name:

YUANTONG

Certification:

ISO,ANATEL,ROSH,TLC,CCC

Model Number:

GVDD1.5*2+2G657a2

Contact Us

Request A Quote
Product Details
Copper Wire:
1.5 Mm^2
Fiber Type:
G657a2
Copper Wire Color:
Red And Blue
Copper Wire Sheath:
LSZH
Drop Cable Coloer:
Blue And Yellow
Drop Cable Sheath:
LSZH
Cable Sheath:
LSZH
Cable Sheath Color:
Grey
Cable Shape:
Round
Cable Use:
Indoor And Outdoor 5G
Payment & Shipping Terms
Minimum Order Quantity
20km
Price
usd 0.775/m
Packaging Details
wooden drum plus carton box
Delivery Time
within 7 working days
Payment Terms
L/C, T/T, Western Union
Supply Ability
100km per week
Product Description



Optical and Aluminum Copper Wire Power Cable Black Sheath with FTTH Drop Cable Hybrid Composite Cable





Tensile strength and elogation at break
Tensile strength before aging: ≥ 12.5 N/mm².
Elongation before aging: ≥ 125%.
Aging condition: 80ºC±2ºC, 168h.
Tensile strength after aging: ≥ 12.5 N/mm²
Tensile strength variation: ≤±20%
Elongation at rupture after aging: ≥ 125%.
Elongation variation: ≤±2%



Sheath of the simplex bow-type optical cable

Material: LSZH

Hardness: 96±3 Shore A Test method: GB/T2411
Color: yellow (Pantone 136C), blue (PANTONE 3005C) Chromatic aberration △E: ≤4.0



Strength member

Material: Steel wire coated with glue.Steel wire requirements meet standard GB/T 24202-2009
Dimension (Body/Coating):0.43mm/0.48mm (±0.02mm)
Count: 2 pcs




Torsion

Test method: GB/T 7424.2 E7
Condition:
Tension load to be applied: 20N
Test length: 125H (200mm)
Angle range for cable to be twist: ±180°
Number of cycles: 20



Fiber parameter

Unit Description
Fiber model -- SM- G657a2
Condition nm 1310 /1550
Attenuation Db/km ≤3.5/ 0.21
Dispersion 1310nm ≤ 18
1550nm ≤ 22
Zero dispersion wavelength nm 1300 -1324
Zero dispersion slope Ps/(nm²xkm) ≤ 0.092
PMD Maximum individual fiber [ps/√km] ≤ 0.2
PMD Design link value ps/(nm²xkm) ≤ 0.08
Fiber cutoff wavelength λC nm 1180 ≤1330
Cable cutoff wavelength λcc nm ≤ 1260
MFD 1310nm(μm) 8.6 ±0.4
1550nm(μm) 9.8 ±0.5
Step(mean of bidirectional measurement) dB ≤ 0.05
Irregularities over fiber length and point discontinuity dB ≤ 0.05
Difference backscatter coefficient dB/km ≤ 0.03
Attenuation uniformity dB/km ≤ 0.01
Cladding diameter μm 125.0 ±0.1
Cladding non-circularity % ≤ 0.7
Coating diameter μm 242 ±7


FTTH Hybrid Composite Cable , G657a2 LSZH Fiber Copper Hybrid Cable 0

FTTH Hybrid Composite Cable , G657a2 LSZH Fiber Copper Hybrid Cable 1
FTTH Hybrid Composite Cable , G657a2 LSZH Fiber Copper Hybrid Cable 2

FTTH Hybrid Composite Cable , G657a2 LSZH Fiber Copper Hybrid Cable 3
Factory Introduction

Sichuan Yuantong Communication Co., Ltd, a national key high-tech Enterprise,which is located in the beautiful "land of abundance" - Chengdu, Southwest Airport Economic Development Zone, is next to Shuangliu International airport and airway expressway.

Our company is committed to R&D, manufacture all kinds of fiber optic cable including indoor&outdoor fiber optic cable, poweroptical fiber cable, submarine optical cable and special optical cable etc.

Yuantong has more than 200 staffs, of which 20% are senior engineers ,30% are mid-level employees.

Company has got many national approval certificates, such as ISO9001 quality management, ISO14001 environmentalmanagement, health management and TLC.

A complete set of Advanced test equipments ensure each of the links from raw materials to perfect products is effectively controlled.

Also we have built a long-term strategic cooperative relationship with a number of domestic and oversea telecom operators.

Products sold widely to America, Europe, Middle East, Africa, Southeast Asia, and other continents, annual sales reach$300 million, the production scale is in the forefront of the field.

Our company persist the quality policy "fast, efficient, high-quality" and the quality target "be first in China, do best in the world",trying to make outstanding contribution for the whole world's communication development.

FTTH Hybrid Composite Cable , G657a2 LSZH Fiber Copper Hybrid Cable 4

FTTH Hybrid Composite Cable , G657a2 LSZH Fiber Copper Hybrid Cable 5

FTTH Hybrid Composite Cable , G657a2 LSZH Fiber Copper Hybrid Cable 6


Certifiacte

FTTH Hybrid Composite Cable , G657a2 LSZH Fiber Copper Hybrid Cable 7

Exhibition home and abroad
FTTH Hybrid Composite Cable , G657a2 LSZH Fiber Copper Hybrid Cable 8

FTTH Hybrid Composite Cable , G657a2 LSZH Fiber Copper Hybrid Cable 9


FAQ

1.Are you the real manufacturer?

Yes. We are the real manufacturer with 18 years' history.


2.What is your fiber brand ?

Corning, SEI, YOFC, FiberHome, etc


3.Can you accept small order?

Yes, small order is available .We support new project of our customers as we know business is always from small order.


4.What is your warranty period?

25 years for fiber optic cable


5.Which kind of certification you have ?

ISO9001, SGS, 3E, Anatel.


6.What is your delivery time?

Usually within 2-3 working days


7.What about your annual production capacity?

Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;

FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;

Patch Cord/Pigtails, it is 12,400,000 Pieces per year.


8.What is your payment way?

T/T, L/C, Western Union and Paypal.


9.Can you supply customized products and logo?

-Yes. We supply OEM&ODM service. You can send us your drawing.


10.Can you supply your cable test value form?

-Yes. After finishing production , we can supply if you ask.


11.Do your factory inspect every roll of cables?

-Yes. we factory do 100% inspection per order.
