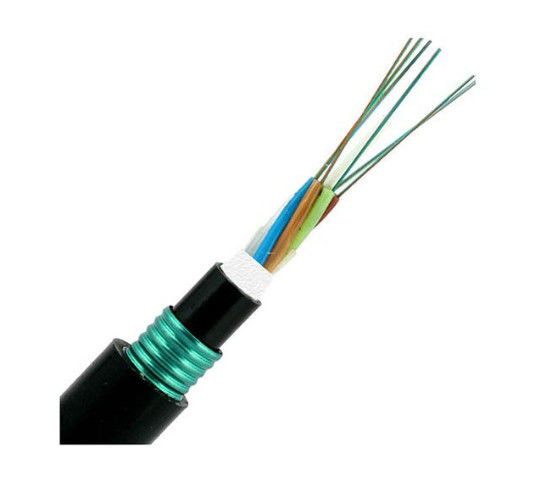

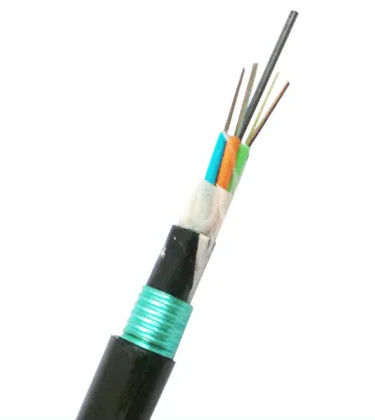

GYTY53 Direct Burial Armored Fiber Optic Cable 48 Core PBT Loose Tube

GYTY53 Direct Burial Armored Fiber Optic Cable 48 Core PBT Loose Tube

PBT Fiber Optic Cable

GYTY53 Fiber Optic Cable

Place of Origin:

China

Brand Name:

YUANTONG

Certification:

ROSH ,TLC, CCC, ISO

Model Number:

GYTY53 48 Core

Contact Us

Request A Quote
Product Details
Product Name:
48 Core Corrugated Steel Tape Armored Layer Filling Loose Tube Outdoor Fiber Optic Cable GYTY53
Fiber Count:
48 Core
Fiber Type:
G652D
Cable Sheath:
PE Sheath, PE Outer Sheath
Cable Color:
Black
Strength Member:
Metallic Strength Member
Cable Use:
Outdoor
Loose Tube:
PBT
Payment & Shipping Terms
Minimum Order Quantity
20KM
Price
Negotiable
Packaging Details
Wooden Drum
Delivery Time
7 days
Payment Terms
L/C, D/P, T/T, Western Union
Supply Ability
500km per week
Product Description

48 Core Corrugated Steel Tape Armored Layer Filling Loose Tube Outdoor Fiber Optic Cable GYTY53



Description:

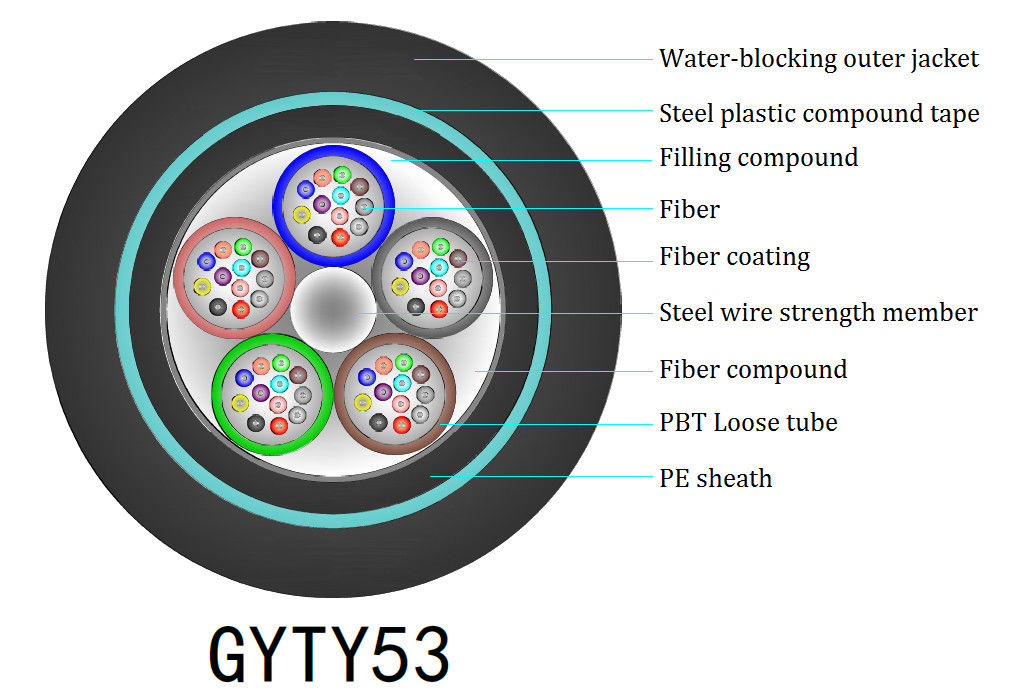

In the GYTY53 cable, singlemode/multimode fibers are positioned in the loose tubes,the tubes are filled with water blocking filling compound. Tubes and fillers are stranded around the strength member into a circular cable core.

An Aluminum Polyethylene Laminate(APL) is applied around the core. Which is filled with the filling compound to protect it. Then the cable is completed with a thin PE sheath. After PSP is applied over the inner sheath, the cable is completed with a PE outer sheath.



Characterisics:

1. Excellent mechanical and temperature.

2. Critical protection to fibers.

3. The following measures are taken to ensure the water blocking performance of the cable:

- Single steel wire used as the central strength Member

- Special water-blocking filling compound in the loose tube

- 100% cable core filling

- APL and PSP moisture barrier



FEATURES:
Low loss and dispersion of optical fiber transmission;
Double-sided coated steel belt(PSP) improves moisture resistance of cable
Double cover structure to meet the requirements of direct burial

APPLICATIONS:
Direct burial





Model Description Applications
GYTY53 GYTY53 outdoor fiber optic cable,Metallic strength member,layer filling loose tube,PE sheath,Corrugated steel tape armored,PE outer sheath Pipeline laying&Direct burial



Tensile Strength (N) Crush Resistance (N/100mm) Bned Radius
(mm)
Working Temperature(℃) Max. attenuation (dB/km)
Long term short term Long term short term Static(D) Dynamic (D) Min.TA Max.TB 1310μm 1550μm
1000 3000 1000 3000 12.5 D 25 D -40℃ +60℃ ≤0.36 ≤0.22



Category Description Specifications
G.652D
Optical Specifications Attenuation @1310nm ≤0.36dB/km
@1550nm ≤0.22dB/km
Attenuation discontinuity ≤0.05 dB
Attenuation vs. Wavelength @1285~1330nm ≤0.05 dB/km
@1525~1575nm ≤0.05 dB/km
Zero Dispersion Wavelength 1300~1324nm
Zero Dispersion Slope ≤0.092ps/(nm2.km)
Dispersion @1310nm ≤3.5 ps/nm.km
@1550nm ≤18 ps/nm.km
Polarization Mode Dispersion(PMD) ≤0.2ps/km1/2
Cable Cutoff Wavelength(λcc) ≤1260nm
Effective Group Index of Refraction @1310nm 1.4675
@1550nm 1.4681
Macro bend loss (30mm radius,100turns) 1625nm ≤0.1 dB
Geometric
Specifications
Mode Field Diameter @1310nm 9.2±0.6μm
@1550nm 10.4±0.8μm
Cladding Diameter 125±1μm
Cladding Non-Circularity ≤1.0%
Coating Diameter 245±7μm
Coating/Cladding Concentricity Error ≤8μm
Core/Cladding Concentricity Error ≤0.8μm
Mechanical
Specifications
Proof Test level ≥1.0%
Fiber Curl Radius ≥4.0m
Peak Coating Strip Force 1.3~8.9N



FAQ
1. Are you the real manufacturer?
Yes. We are the real manufacturer with 18 years' history.

2. What is your fiber brand ?
Corning, SEI, YOFC, FiberHome, etc

3. Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.
4.What is your warranty period?
25 years for fiber optic cable

5. Which kind of certification you have ?
ISO9001, SGS, 3C Anatel.

6. What is your delivery time?
Usually within 2-3 working days

7. What about your annual production capacity?
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.

8. What is your payment way?
T/T, L/C, Western Union and Paypal.

9. Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.

10. Can you supply your cable test value form?
-Yes. After finishing production , we can supply if you ask.

11. Do your factory inspect every roll of cables?
-Yes. we factory do 100% inspection per order.
