GYXTW54 24 Core Duct Fiber Optic Cable Longitudinal Corrugated Steel Tape

GYXTW54 24 Core Duct Fiber Optic Cable Longitudinal Corrugated Steel Tape

GYXTW54 Duct Fiber Optic Cable

24core Duct Fiber Optic Cable

Duct 24 core fiber optic cable

Place of Origin:

China

Brand Name:

YUANTONG

Certification:

ROSH ,TLC, CCC, ISO

Model Number:

GYXTW54 24 Core

Contact Us

Request A Quote
Product Details
Product Name:
24 Core Entrained Parallel Steel Wire Longitudinal Corrugated Steel Tape Armored Fiber Optic Cable GYXTW54
Fiber Count:
24 Core
Fiber Type:
G652D
Cable Sheath:
Steel-PE Sheath
Cable Color:
Black
Strength Member:
Metallic Strength Member
Cable Use:
Direct Burial
Loose Tube:
PBT
Payment & Shipping Terms
Minimum Order Quantity
20KM
Price
Negotiable
Packaging Details
Wooden Drum
Delivery Time
7 days
Payment Terms
L/C, D/P, T/T, Western Union
Supply Ability
500km per week
Product Description

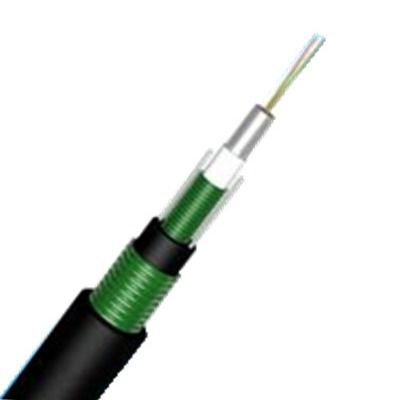

24 Core Parallel Steel Wire Longitudinal Corrugated Steel Tape Armored GYXTW54 Duct Fiber Optic Cable





Description:

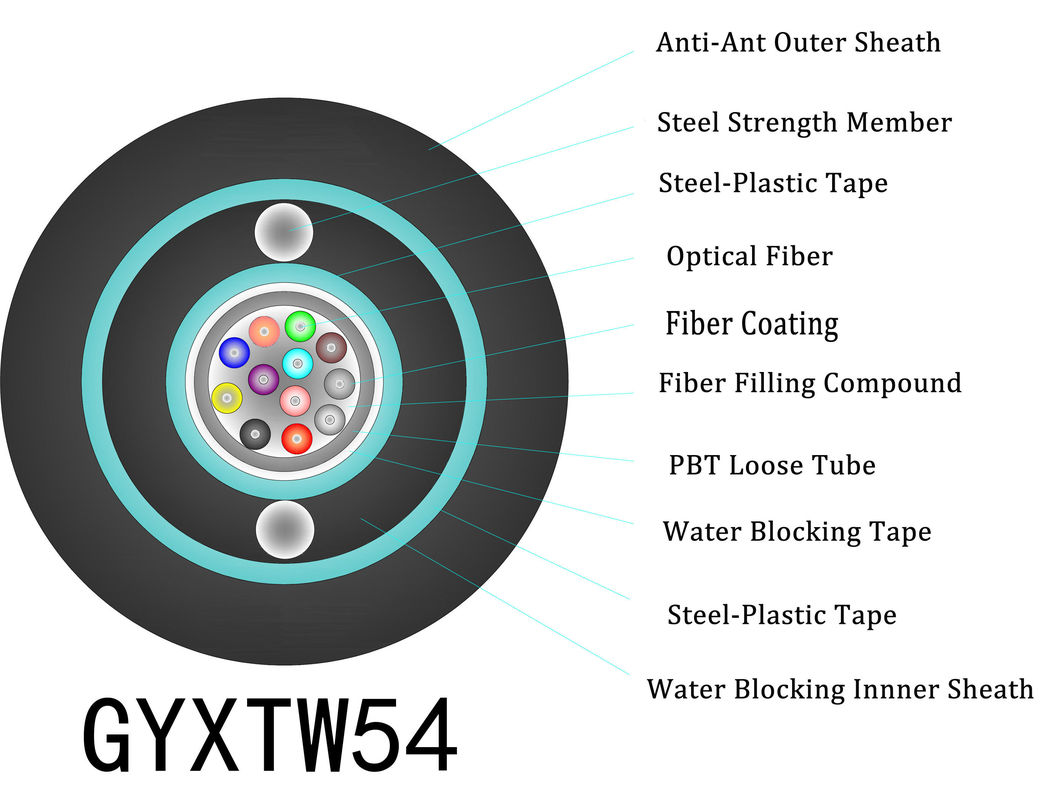

GYXTW54 single-armored cables feature central loose tube wrapped with a layer of PSP longitudinally, excellent crush-resistant performance. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape, to ensure tensile strength. The cable is completed with a single polyethylene (PE) sheath. It's suitable for installation in aerial or duct environment for communication between bureaus, metropolitan network, access network and is especially suitable for the situation where high-density fibers is expected.



Feature:
1. Low dispersion and attenuation
2. Light weight, small diameter, easy to lay
3. Good tensile strength and crush resistance performance
4. Good moisture-resistance, water blocking, and flexibility
5. Good mechanical and temperature resistant performance



Characterisics:

1. Steel wire strength filler protect tube fiber.steel tape armord.
2. Good ultra violet radiation resistant property.
3. Double sheath.
4. Good moisture-resistance.
5. Method of installation:

6. Direct burial preferred, other methods of installation are also available







Model Description Applications
GYXTW54 24 Core Metallic strength member,Central tube filling type,Entrained parallel steel wire,Steel-PE sheath,Longitudinal corrugated steel tape armored,PE outer jacket,Anti-termite Overhead laying&Pipeline laying,Direct burial,Anti-termite



Tensile Strength (N) Crush Resistance (N/100mm) Bned Radius
(mm)
Working Temperature(℃) Max. attenuation (dB/km) fibers OD(mm) weight kg/km
Long term short term Long term short term Static(D) Dynamic (D) Min.TA Max.TB 1310μm 1550μm
600 1500 300 1000 10 D 20 D -40℃ +60℃ ≤0.36 ≤0.22 2~24 11.0~15.0 125~155



Category Description Specifications
G.652D
Optical Specifications Attenuation @1310nm ≤0.36dB/km
@1550nm ≤0.22dB/km
Attenuation discontinuity ≤0.05 dB
Attenuation vs. Wavelength @1285~1330nm ≤0.05 dB/km
@1525~1575nm ≤0.05 dB/km
Zero Dispersion Wavelength 1300~1324nm
Zero Dispersion Slope ≤0.092ps/(nm2.km)
Dispersion @1310nm ≤3.5 ps/nm.km
@1550nm ≤18 ps/nm.km
Polarization Mode Dispersion(PMD) ≤0.2ps/km1/2
Cable Cutoff Wavelength(λcc) ≤1260nm
Effective Group Index of Refraction @1310nm 1.4675
@1550nm 1.4681
Macro bend loss (30mm radius,100turns) 1625nm ≤0.1 dB
Geometric
Specifications
Mode Field Diameter @1310nm 9.2±0.6μm
@1550nm 10.4±0.8μm
Cladding Diameter 125±1μm
Cladding Non-Circularity ≤1.0%
Coating Diameter 245±7μm
Coating/Cladding Concentricity Error ≤8μm
Core/Cladding Concentricity Error ≤0.8μm
Mechanical
Specifications
Proof Test level ≥1.0%
Fiber Curl Radius ≥4.0m
Peak Coating Strip Force 1.3~8.9N



FAQ
1. Are you the real manufacturer?
Yes. We are the real manufacturer with 18 years' history.


2. What is your fiber brand ?
Corning, SEI, YOFC, FiberHome, etc


3. Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.


4.What is your warranty period?
25 years for fiber optic cable


5. Which kind of certification you have ?
ISO9001, SGS, 3C Anatel.


6. What is your delivery time?
Usually within 2-3 working days


7. What about your annual production capacity?
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.


8. What is your payment way?
T/T, L/C, Western Union and Paypal.


9. Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.


10. Can you supply your cable test value form?


-Yes. After finishing production , we can supply if you ask.
11. Do your factory inspect every roll of cables?
-Yes. we factory do 100% inspection per order.
