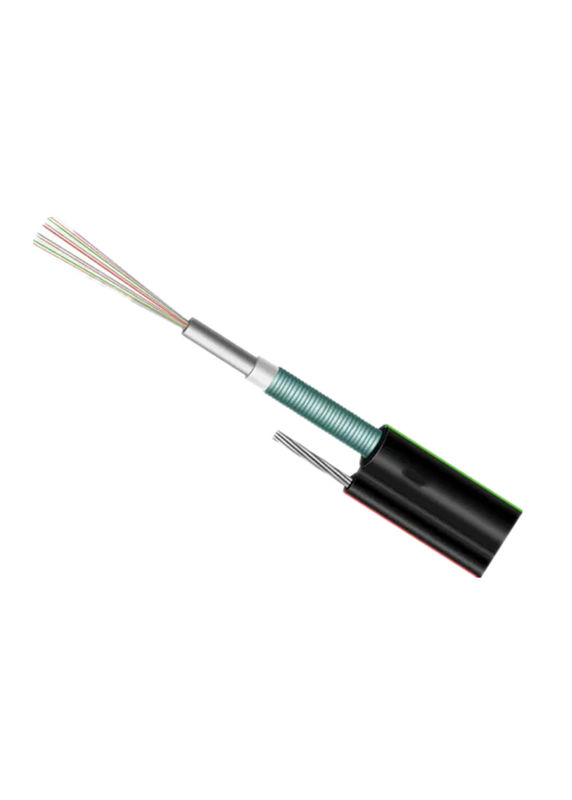

CCC Figure 8 Outdoor Aerial Fiber Optic Cable 72 Core GYXTC8A

Place of Origin China
Brand Name YUANTONG
Certification ROSH ,TLC, CCC, ISO
Model Number GYXTC8A 72 Core
Minimum Order Quantity 20KM
Price Negotiable
Packaging Details Wooden Drum
Delivery Time 7 days
Payment Terms L/C, D/P, T/T, Western Union
Supply Ability 500km per week
Product Details
Product Name 72 Core Figure-8 Steel PE Sheath Communication Outdoor Fiber Optic Cable GYXTC8A Fiber Count 72 Core
Fiber Type G652D Cable Sheath Aluminum PE
Cable Color Blue Green Orange Brown Strength Member Metallic Strength Member
Cable Use Aerial OEM Supported
High Light

72Core Outdoor Fiber Optic Cable

,

GYXTC8A Aerial Fiber Optic Cable

,

CCC figure 8 fiber optic cable

Leave a Message
Product Description

72 Core Figure-8 Aluminium PE sheath Communication Outdoor Fiber Optic Cable GYXTC8A

Description

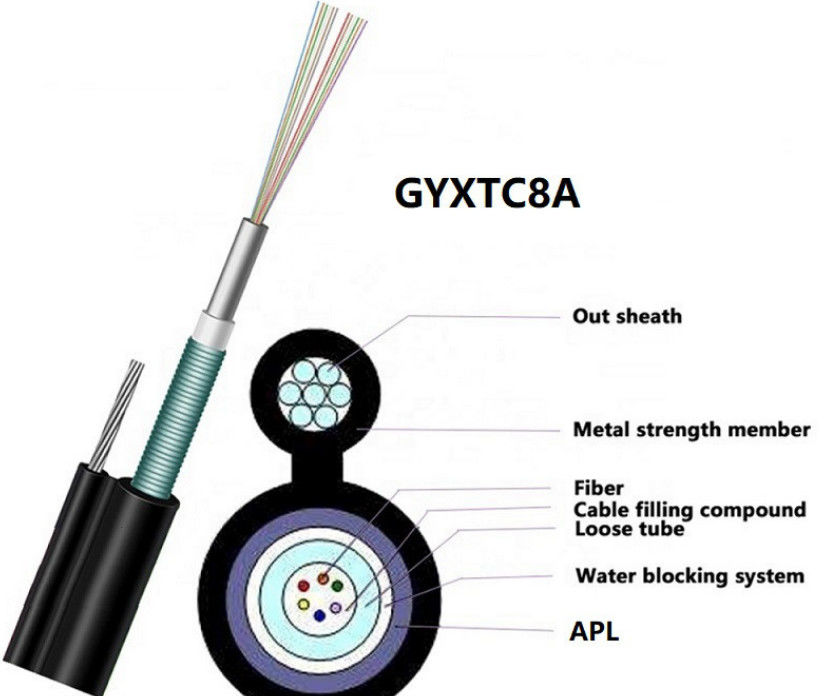

The fibers, 150um, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire located in the center of core as a metallic strength member. The tubes( and fillers) are stranded around the strength member into a compact and circular cable core. After an Aluminum Polyethylene Laminate(APL) moisture barrier is applied around the cable core, this part of cable accompanied with the stranded wires as the supporting part are completed with a polyethylene(PE) sheath to be figure 8 structure.


Characteristics
High tensile strength of stranede wires meet the requirement of self-supporting and reduce installation cost
Good mechanical and temperature performance
High strength loose tube that is hydeolysis resistant
Special tube filling compound ensure a critical protection of fiber
The following measures are taken to ensure the cable watertight:
Steel wire used as teh central strength member
Loose tube filling compound
100% cable core filling
APL moisture barrier



ModelDescriptionApplicationsTensile Strength (N)Crush Resistance (N/100mm)
Long termshort termLong termshort term
GYXTC8A72 Core Metallic strength member,Outdoor loose tube, fig.8 self-supporting, Aluminium PE sheath communication outdoor optical cableSelf-supporting overhead laying100030003001000



Bned Radius
(mm)
Working Temperature(℃)Max. attenuation (dB/km)fibersOD(mm)weight kg/km
Static(D)Dynamic (D)Min.TAMax.TB1310μm1550μm
10 D20 D-40℃+60℃≤0.36≤0.222~126.5~9.580~100



CategoryDescriptionSpecifications
G.652D
Optical SpecificationsAttenuation@1310nm≤0.36dB/km
@1550nm≤0.22dB/km
Attenuation discontinuity≤0.05 dB
Attenuation vs. Wavelength@1285~1330nm≤0.05 dB/km
@1525~1575nm≤0.05 dB/km
Zero Dispersion Wavelength1300~1324nm
Zero Dispersion Slope≤0.092ps/(nm2.km)
Dispersion@1310nm≤3.5 ps/nm.km
@1550nm≤18 ps/nm.km
Polarization Mode Dispersion(PMD)≤0.2ps/km1/2
Cable Cutoff Wavelength(λcc)≤1260nm
Effective Group Index of Refraction@1310nm1.4675
@1550nm1.4681
Macro bend loss (30mm radius,100turns) 1625nm≤0.1 dB
Geometric
Specifications
Mode Field Diameter@1310nm9.2±0.6μm
@1550nm10.4±0.8μm
Cladding Diameter125±1μm
Cladding Non-Circularity≤1.0%
Coating Diameter245±7μm
Coating/Cladding Concentricity Error≤8μm
Core/Cladding Concentricity Error≤0.8μm
Mechanical
Specifications
Proof Test level≥1.0%
Fiber Curl Radius≥4.0m
Peak Coating Strip Force1.3~8.9N
