FTTX Anti Rodent Fiber Optic Cable
| Place of Origin | China |
|---|---|
| Brand Name | YUANTONG |
| Certification | ROSH ,TLC, CCC, ISO |
| Model Number | GYXY04 |
| Minimum Order Quantity | 20KM |
| Price | Negotiable |
| Packaging Details | Wooden Drum |
| Delivery Time | 7 days |
| Payment Terms | L/C, D/P, T/T, Western Union |
| Supply Ability | 500km per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | 12 Core Central Tube Full Filling With The Parallel Steel Wire Steel-PE Outer Jacket Fiber Optic Cable GYXTW | Fiber Count | 12 Core |
|---|---|---|---|
| Fiber Type | G652D | Cable Sheath | Anti-Ant Sheath |
| Cable Color | Black | Strength Member | Stell Strength Member |
| Cable Use | Aerial, Overhead Laying | Loose Tube | PBT |
| High Light | FTTx Anti Rodent Cable,GYXY04 Anti Rodent Cable |
||
Product Description

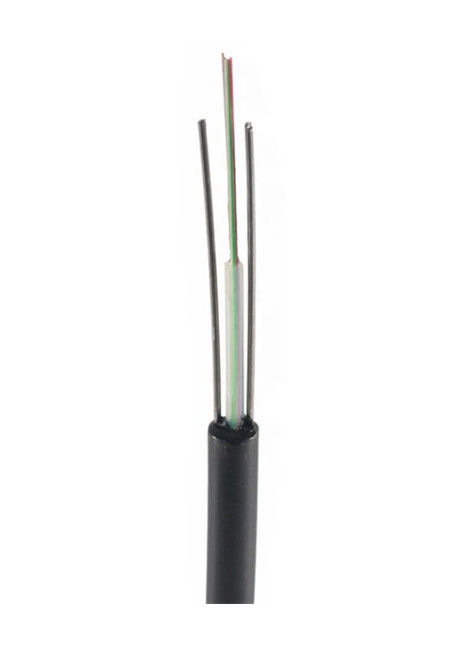

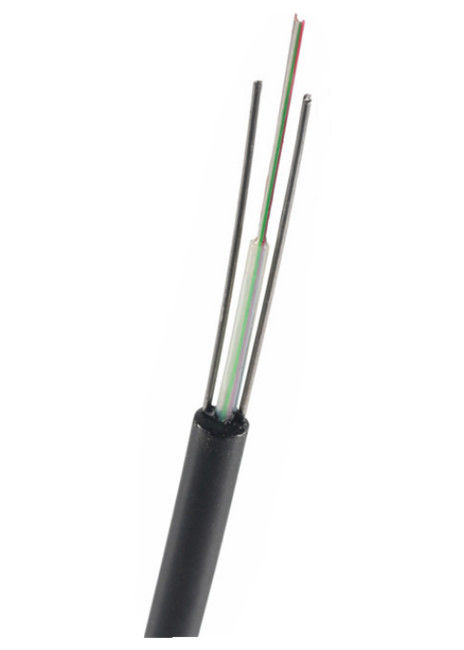

12 Core Anti-Termite Metallic Strength Member Central Tube Dry-Type PE Outer Jacket Fiber Optic Cable GYXY04
Description:
Non-Armored Uni-Tube optical cable with fibers placed in loose buffer tube.The cable core is protected with jelly to prevent water intrusion and migration, and coverwith a black polyethylene out jacket. Two embedded FRP or metallic wire provide desire tension.
Feature:
Embedded strength member provide desirable tensile strength.
Compact, easy to install.
UV and moisture-resistant design
Applications:
Installed in duct, direct burial.
FTTx.
| Model | Description | Applications |
| GYXY04 | Metallic strength member,Central tube,Dry-type,PE outer jacket,Anti-termite | Overhead laying&Pipeline laying,Anti-termite |
| Tensile Strength (N) | Crush Resistance (N/100mm) | Bned Radius (mm) | Working Temperature(℃) | Max. attenuation (dB/km) | fibers | OD(mm) | weight kg/km | |||||
| Long term | short term | Long term | short term | Static(D) | Dynamic (D) | Min.TA | Max.TB | 1310μm | 1550μm | |||
| 600 | 1500 | 300 | 1000 | 10 D | 20 D | -40℃ | +60℃ | ≤0.36 | ≤0.22 | 2～24 | 7.5～9.5 | 50～60 |
| Category | Description | Specifications | |
| G.652D | |||
| Optical Specifications | Attenuation | @1310nm | ≤0.36dB/km |
| @1550nm | ≤0.22dB/km | ||
| Attenuation discontinuity | ≤0.05 dB | ||
| Attenuation vs. Wavelength | @1285~1330nm | ≤0.05 dB/km | |
| @1525~1575nm | ≤0.05 dB/km | ||
| Zero Dispersion Wavelength | 1300~1324nm | ||
| Zero Dispersion Slope | ≤0.092ps/(nm2.km) | ||
| Dispersion | @1310nm | ≤3.5 ps/nm.km | |
| @1550nm | ≤18 ps/nm.km | ||
| Polarization Mode Dispersion(PMD) | ≤0.2ps/km1/2 | ||
| Cable Cutoff Wavelength(λcc) | ≤1260nm | ||
| Effective Group Index of Refraction | @1310nm | 1.4675 | |
| @1550nm | 1.4681 | ||
| Macro bend loss (30mm radius,100turns) 1625nm | ≤0.1 dB | ||
| Geometric Specifications | Mode Field Diameter | @1310nm | 9.2±0.6μm |
| @1550nm | 10.4±0.8μm | ||
| Cladding Diameter | 125±1μm | ||
| Cladding Non-Circularity | ≤1.0% | ||
| Coating Diameter | 245±7μm | ||
| Coating/Cladding Concentricity Error | ≤8μm | ||
| Core/Cladding Concentricity Error | ≤0.8μm | ||
| Mechanical Specifications | Proof Test level | ≥1.0% | |
| Fiber Curl Radius | ≥4.0m | ||
| Peak Coating Strip Force | 1.3~8.9N | ||
FAQ
1. Are you the real manufacturer?
Yes. We are the real manufacturer with 18 years' history.
2. What is your fiber brand ?
Corning, SEI, YOFC, FiberHome, etc
3. Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.
4.What is your warranty period?
25 years for fiber optic cable
5. Which kind of certification you have ?
ISO9001, SGS, 3C Anatel.
6. What is your delivery time?
Usually within 2-3 working days
7. What about your annual production capacity?
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.
8. What is your payment way?
T/T, L/C, Western Union and Paypal.
9. Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.
10. Can you supply your cable test value form?
-Yes. After finishing production , we can supply if you ask.
11. Do your factory inspect every roll of cables?
-Yes. we factory do 100% inspection per order.
