Opgw Stranded Fiber Optic Cable , Aluminum Clad Steel 96 Core 300m Fiber Optic Cable

Place of Origin china
Brand Name YUANTONG
Certification ISO,ANATEL,ROSH,TLC,CCC
Model Number OPGW
Minimum Order Quantity 20km
Price usd 5.5
Packaging Details wooden drum
Delivery Time within 7 working days
Payment Terms L/C, T/T, Western Union
Supply Ability 100km per week
Product Details
Fiber Type G652d Fiber Count 96 Core
Tube AL Tube Material Aluminium,galvanized Steel,Aluminium Alloy/Aluminium Clad Steel
Application Overhead,self Support Surface Smooth
Package Drum With Surdace Span 100m/150m/200m/400m
Item Overhead Line Fittings Oem Provided
High Light

Opgw 300m Fiber Optic Cable

,

300m stranded fiber optic cable

,

96 core stranded fiber optic cable

Leave a Message
Product Description

96 Core Optical Fiber Composite Ground Wire Aerial Stranded Aluminum Clad Steel Single Mode Opgw Cable



Description:

Optical Fiber Composite Overhead Ground wire (OPGW) is a type of cable that is used in overhead power lines. Such cable combines the functions of grounding and communications.

An OPGW cable contains a tubular structure with one or more optical fibers in it, surrounded by layers of steel and aluminum wire.It is mainly used for communication lines of 110kV, 220kV, 500kV, 750kV and new overhead high-voltage transmission systems. It also can be used to replace the existing ground wire of the old overhead high-voltage transmission system.

The OPGW cable is run between the tops of high-voltage electricity pylons. The conductive part of the cable serves to bond adjacent towers to earth ground, and shields the high-voltage conductors from lightning strikes. Special structures can be customized according to user needs.



Applications:
1. aerial ground wires
2. Power line communication systems

Feature:
1. High quality standards for designing, testing and producing with grade A materials available to ensure long-term reliability.
2. Engineering support supervising and providing its own line of accessories hardware.
3. Seal stainless steel tube superior protection to the fiber optical to moisture and extreme environmental
conditions such as lightening.
4. To construct OPGW must cut power, resulting in greater loss, thus OPGW must be used in constructing high pressure line over 110KV.
5. Apply to the transformation of old lines.

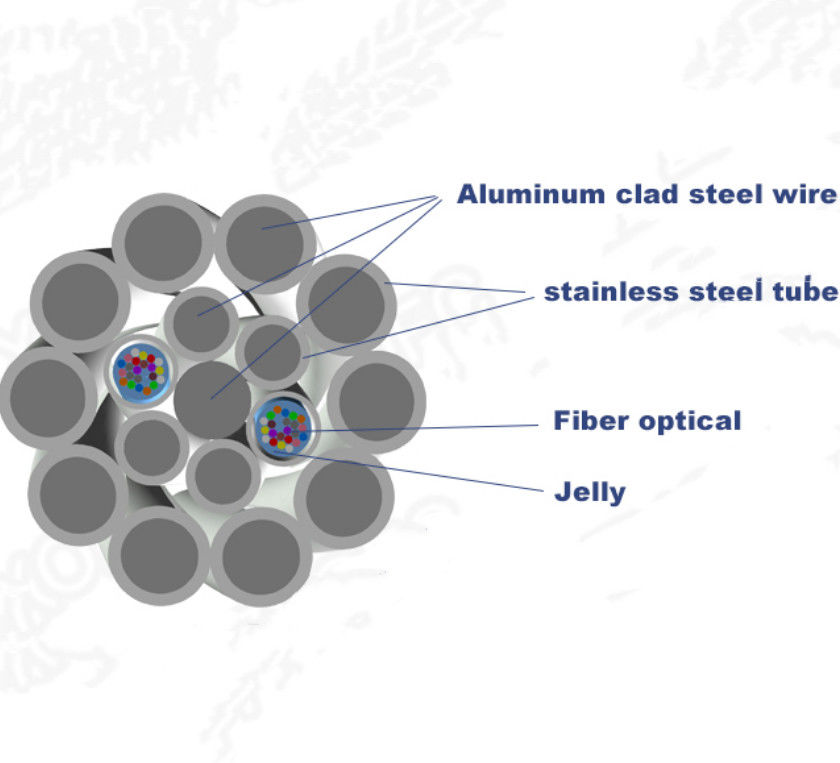

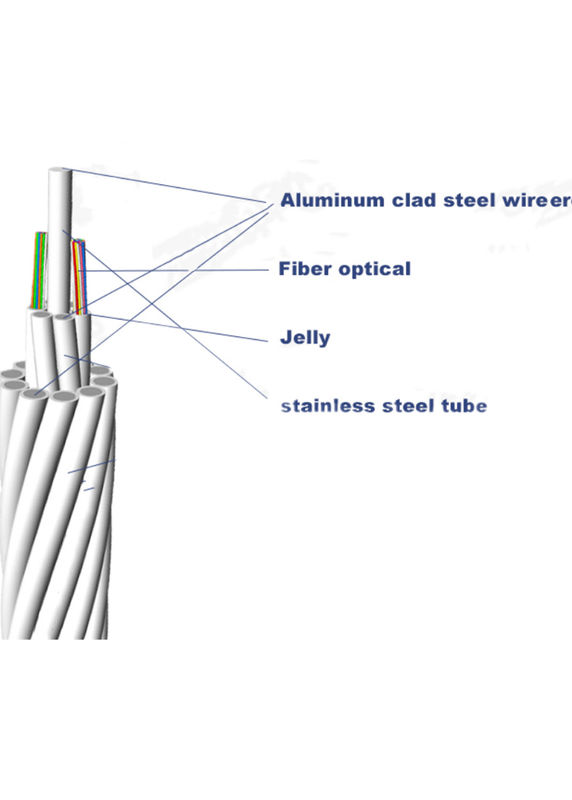

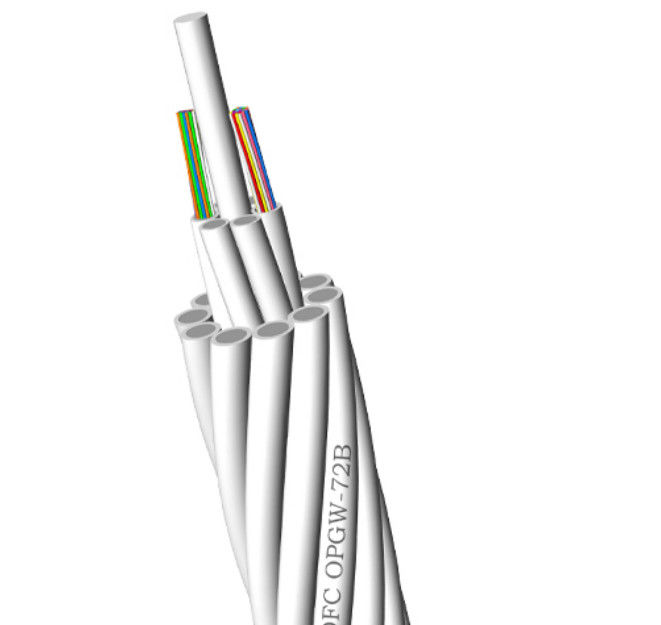

Layer stranding structure:

1. Big diameter and more optical fiber.
2. Big tensile strength and short-circuit capacity,arrive the best balance of machanical and electrical properties.
3. One or more optical unit.
4. Best design of stranding,obtain secondary optical fiber extra length.
5. Strands piles can be two or three,the wire can be ACS wire and/or the combination of aluminium alloy wire and aluminium wire.



NO. Subject Unit Technical parameter
1 Optic fiber type / G.652D
2 Numbers of optic fiber cores Cores 96/128
3 Attenuation characteristics 1310nm(dB/km) ≤0.35
1550nm(dB/km) ≤0.22
4 Cable external diameter mm ≤12.8
5 Weight per unit length of optic cable kg/km ≤502
6 Total cross section mm² 79.38
Cross section of aluminum clad steel wire mm² 79.38
7 Rate tensile strength RTS kN 62.0
8 Elastic modulus GPa 132
9 Linear expansion coefficient ×10-6/℃ 13.8
10 20℃ DC resistance Ω/km ≤0.740
11 Shortcut current(0.5s,20℃~200℃) kA 9.21
12

Allowable short circuit current capacity

(0.5s,20℃~200℃)

kA².S ≥42.4
13 Maximum allowable temperature 200
14 Maximum allowable tension(40%RTS) kN 24.80
15 Annual average operatingtension(25%RTS) kN 15.50
16 Minimum allowable bending radius operation:mm 15D
construction:mm 20D
17 Storage installation temperature Storage(℃) -40~+80
Installation(℃) -10~+50
