Place of Origin:
China
Brand Name:
YUANTONG
Certification:
ROSH ,TLC, CCC, ISO
Model Number:
GJXH-4B
Contact Us
Video
Video
Video

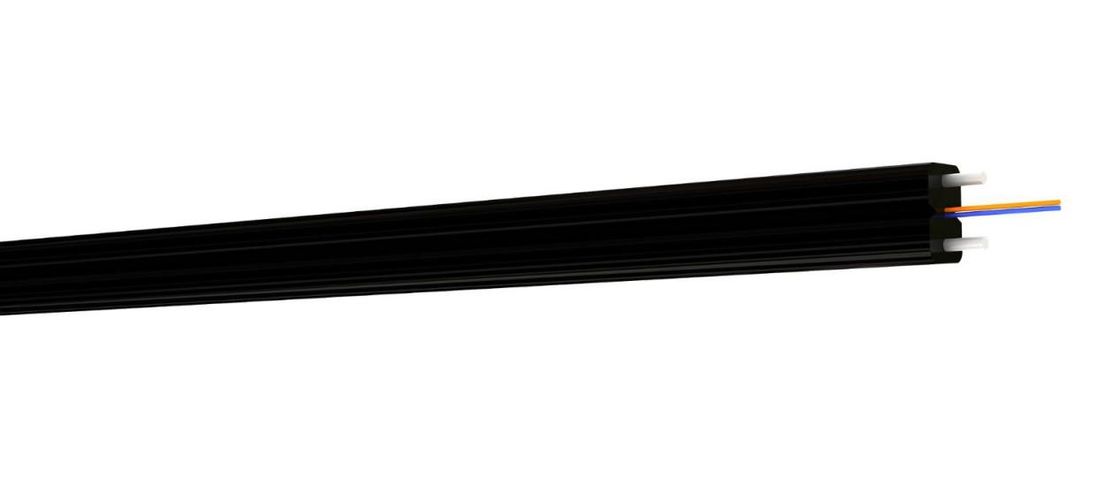

4 core Indoor Fiber Optic Drop Cable FTTH G657a2 Access Network For Parch Cord or Pigtail GJX(F)H
1. Product Description

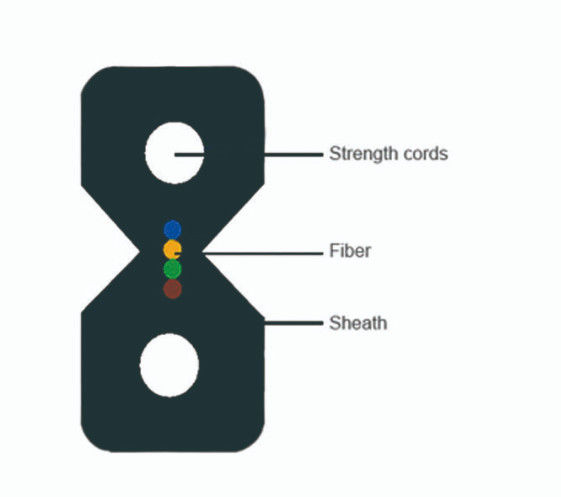

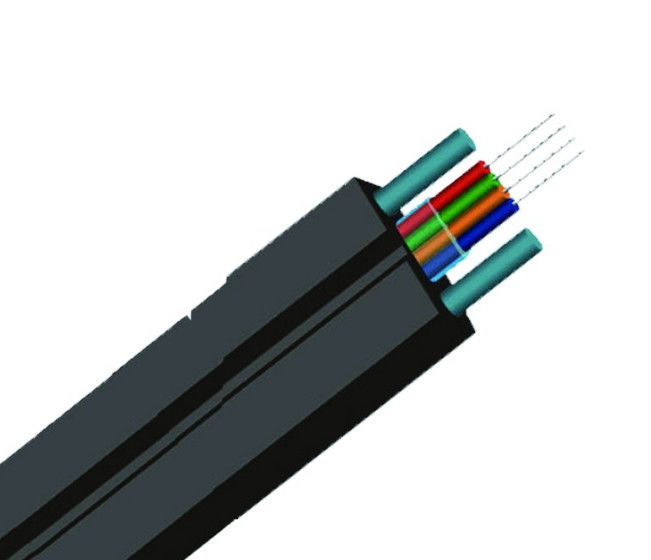

GJX(F)H FTTH indoor cable, the optical fiber unit is positioned in the center. Two parallel Fiber Reinforced steel wires (or FRP) are placed at the two sides. Then the cable is completed with LSZH sheath.
2. Characteristics
1. special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property;
2. Two parallel steel strength members ensure good performance of crush resistance to protect the fiber;
3.Single steel wire or massagers as the additional strength member ensures good performance of tensile strength;
4. Simple structure, light weight and high practicability;
5. Novel flute design, easily strip and splices implify the installation and maintenance;
6. Low smoke, zero halogen and flame retardant sheath.
3. Applications
1. Access network
2. FTTH cable (Fiber to the home)
3. Used in indoor cabling
4. Used for parch cord or pigtail
| Fiber Count |
Outer Dia. (mm) |
Tensile Resistance(N) |
Crush Resistance (N/100m) |
Mini Bending Radius (mm) |
Attenuation (dB/km) |
Operation Temperature (℃) |
N.W. (kg/km) |
| GJXH-4 | 2.0×3.0±0.1 | 60 | 120 | 1000 | 2200 | 40 | 20 | ≤ 0.4 | ≤ 0.3 | -30℃~+60℃ | 10.5 |
| Item | Description | |
| Fiber count | 01/02 Fiber | 04 fiber |
| Fiber type | G657A1/A2 | |
| Messenger | 1.0/1.1/1.2mm steel/FRP | |
| Strength member | 2*0.45mm FRP/Steel | |
| Dimension of cable | 2.0(±0.1)mm/5.0(±0.2)mm | 2.2(±0.1)mm/5.5(±0.2)mm |
| Cable weight | 22kg+1kg | |
FAQ
1. Are you the real manufacturer?
Yes. We are the real manufacturer with 18 years' history.
2. What is your fiber brand ?
Corning, SEI, YOFC, FiberHome, etc
3. Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.
4.What is your warranty period?
25 years for fiber optic cable
5. Which kind of certification you have ?
ISO9001, SGS, 3E, Anatel.
6. What is your delivery time?
Usually within 2-3 working days
7. What about your annual production capacity?
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.
8. What is your payment way?
T/T, L/C, Western Union and Paypal.
9. Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.
10. Can you supply your cable test value form?
-Yes. After finishing production , we can supply if you ask.
11. Do your factory inspect every roll of cables?
-Yes. we factory do 100% inspection per order.
