GJBFJV 24 Core Fiber Optic Cable , Tight Buffered Breakout Fiber Optic Cable

Place of Origin CHINA
Brand Name YUANTONG
Certification ROSH ,TLC, CCC, ISO
Model Number GJBFJV-24 Core
Minimum Order Quantity 20km
Price usd 0.15/m
Packaging Details wooden drum plus carton
Delivery Time 7 days
Payment Terms L/C, D/P, T/T, Western Union
Supply Ability 500km per week
Product Details
Product Name 24 Core GJBFJV Multi Core Branch Tight Buffered Indoor Distribution Fiber Optic Cable Fiber Count 24 Core
Fiber Type G652d/G657A1/G657A2 Cable Sheath LSZH
Cable Color Yellow/Orange Strength Member Aramid Yarn
Cable Use Indoor Use Cable Type Round
High Light

GJBFJV 24 core fiber optic cable

,

breakout 24 core fiber optic cable

,

24core breakout fiber optic cable

Leave a Message
Product Description

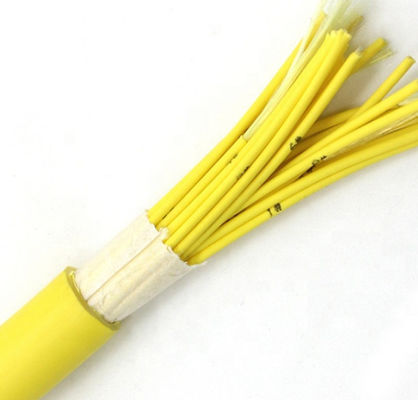

24 Core GJBFJV Multi Core Branch Tight Buffered Indoor Distribution Fiber Optic Cable



Description:

GJBFJV fiber optic cable Mulit purpose break-out cable use simplex cable (2.0mm tight fiber, aramid yarn as strength member ) as subunit. Afiber reinforced plastic (FRP) is located in the center of the core as s non-metallic strength member. The subunits are stranded together around the cable core. Then, the cable is completed with the LSZH jacket.



Application:

1. Connection lines between communication equipments

2. Indoor cabling




Technical Parameters:



Cable count 2,4 6 8 12 14 16 18 20 24 30 32 34 36 38
Cable diameter (mm) 7.0 8.1 9.8 12.3 10.9 12.2 12.2 12.5 14.0 15.7 16.0 16.0 16.0 18.0
Cable weight (kg/km) 45 62 84 138 101 123 126 137 170 190 215 218 220 240



Simplex cable diameter (mm) 2.0±0.05
Tight buffer fiber diameter (um) 900±50



Mechanical Characteristics:

Tensile strength (N) Long term 200
  Short term 600
Crush resistance (N/100cm) Long term 300
  Short term 1000
Bending Radius (cm) Dynamic 20xD (D: Cable Diameter)
  Static 10xD (D: Cable Diameter)


Optical Characteristics:

Fiber Sort Multimode G.651 A1a:50/125 Graded-index fiber
A1b:62.5/125
Singlemode G.652(A,B,C) B1.1:Conventional fiber
G.652D B2: Zero dispersion shifted
G.655 B1.2 :Cut-off wavelength shifted
G.657(A1,A2 ,B3) B4: Main technical data for positive
dispersion shifted single-mode fiber





Company Indroduce:

Sichuan Yuantong Communication Co., Ltd, a national key high-tech Enterprise,which is located in the beautiful "land of abundance" - Chengdu, Southwest Airport Economic Development Zone, is next to Shuangliu International airport and airway expressway.

Our company is committed to R&D, manufacture all kinds of fiber optic cable including indoor&outdoor fiber optic cable, power optical fiber cable, submarine optical cable and special optical cable etc.

Yuantong has more than 200 staffs, of which 20% are senior engineers ,70% are mid-level empolyees.

Company has got many national approval certificates, such as ISO9001 quality management, ISO14001 environmental management, health management and TLC.

 A complete set of Advanced test equipments ensure each of the links from raw materials to perfect products is effectively controlled.

Also we have built a long-term strategic cooperative relationship with a number of domestic and oversea telecom operators. Products sold widely to America, Europe, Middle East, Africa, Southeast Asia, and other continents, annual sales reach$300 million, the production scale is in the forefront of the field.

Our company persist the quality policy "fast, efficient, high-quality" and the quality target

"be first in China, do best in the world", trying to make outstanding contribution for the whole world's communication development .



GJBFJV 24 Core Fiber Optic Cable , Tight Buffered Breakout Fiber Optic Cable 0GJBFJV 24 Core Fiber Optic Cable , Tight Buffered Breakout Fiber Optic Cable 1



Certificate:

GJBFJV 24 Core Fiber Optic Cable , Tight Buffered Breakout Fiber Optic Cable 2



Exhibition home and abroad
GJBFJV 24 Core Fiber Optic Cable , Tight Buffered Breakout Fiber Optic Cable 3


FAQ

1. Are you the real manufacturer?

Yes. We are the real manufacturer with 18 years' history.



2. What is your fiber brand ?

Corning, SEI, YOFC, FiberHome, etc



3. Can you accept small order?

Yes, small order is available .We support new project of our customers as we know business is always from small order.

4.What is your warranty period?

25 years for fiber optic cable



5. Which kind of certification you have ?

ISO9001, SGS, 3C Anatel.



6. What is your delivery time?

Usually within 2-3 working days



7. What about your annual production capacity?

Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;

FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;

Patch Cord/Pigtails, it is 12,400,000 Pieces per year.



8. What is your payment way?

T/T, L/C, Western Union and Paypal.



9. Can you supply customized products and logo?

-Yes. We supply OEM&ODM service. You can send us your drawing.



10. Can you supply your cable test value form?

-Yes. After finishing production , we can supply if you ask.



11. Do your factory inspect every roll of cables?

-Yes. we factory do 100% inspection per order.
