48 Core GJBFJV Indoor Fiber Optic Cable Tight Buffered CCC Listed

48 Core GJBFJV Indoor Fiber Optic Cable Tight Buffered CCC Listed

GJBFJV Indoor Fiber Optic Cable

48 Core Indoor Fiber Optic Cable

CCC tight buffered fiber optic cable

Place of Origin:

CHINA

Brand Name:

YUANTONG

Certification:

ROSH ,TLC, CCC, ISO

Model Number:

GJBFJV-48 Core

Contact Us

Request A Quote
Product Details
Product Name:
48 Core GJBFJV Multi Core Branch Tight Buffered Indoor Distribution Fiber Optic Cable
Fiber Count:
48 Core
Fiber Type:
G652d/G657A1/G657A2
Cable Sheath:
LSZH
Cable Color:
Yellow/Orange
Strength Member:
Aramid Yarn
Cable Use:
Indoor Use
Cable Type:
Round
Payment & Shipping Terms
Minimum Order Quantity
20km
Price
usd 0.15/m
Packaging Details
wooden drum plus carton
Delivery Time
7 days
Payment Terms
L/C, D/P, T/T, Western Union
Supply Ability
500km per week
Product Description

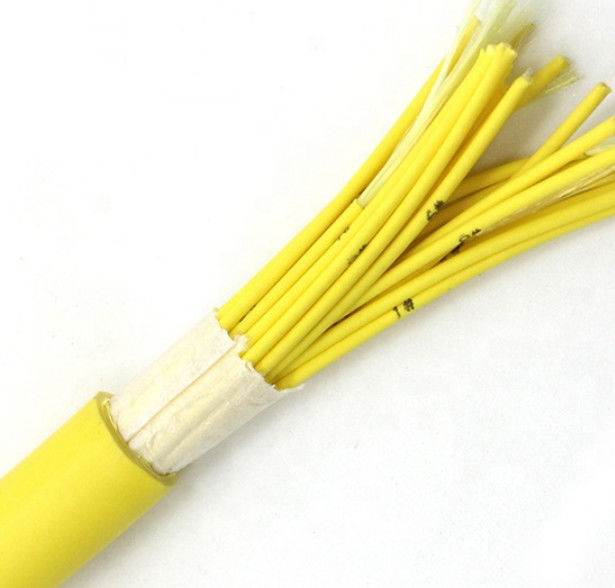

48 Core GJBFJV Multi Core Branch Tight Buffered Indoor Distribution Fiber Optic Cable



Description:

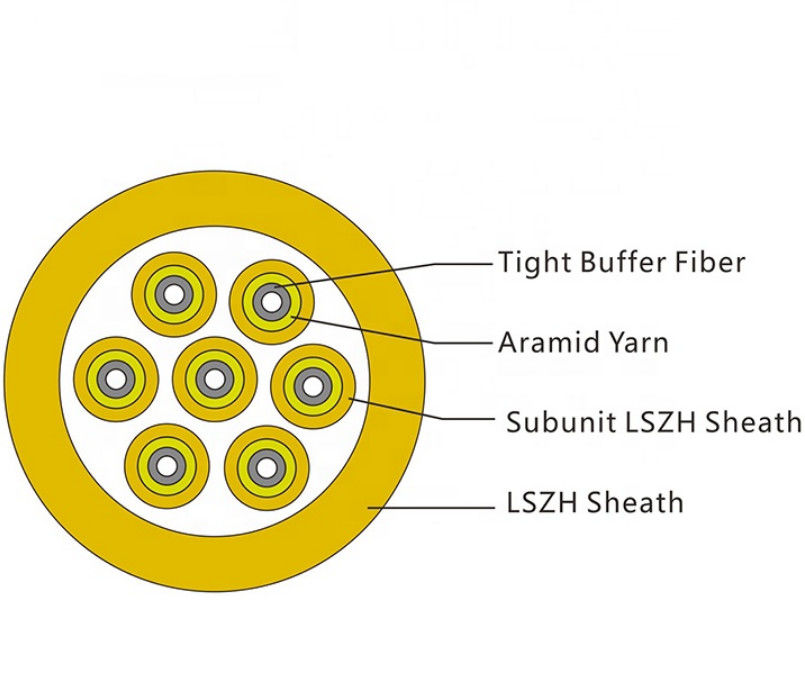

GJBFJV fiber optic cable Mulit purpose break-out cable use simplex cable (2.0mm tight fiber, aramid yarn as strength member ) as subunit. Afiber reinforced plastic (FRP) is located in the center of the core as s non-metallic strength member. The subunits are stranded together around the cable core. Then, the cable is completed with the LSZH jacket.



Application:

1. Connection lines between communication equipments

2. Indoor cabling




Technical Parameters:



Cable count 2,4 6 8 12 14 16 18 20 24 30 32 34 36 38
Cable diameter (mm) 7.0 8.1 9.8 12.3 10.9 12.2 12.2 12.5 14.0 15.7 16.0 16.0 16.0 18.0
Cable weight (kg/km) 45 62 84 138 101 123 126 137 170 190 215 218 220 240



Simplex cable diameter (mm) 2.0±0.05
Tight buffer fiber diameter (um) 900±50



Mechanical Characteristics:

Tensile strength (N) Long term 200
  Short term 600
Crush resistance (N/100cm) Long term 300
  Short term 1000
Bending Radius (cm) Dynamic 20xD (D: Cable Diameter)
  Static 10xD (D: Cable Diameter)


Optical Characteristics:

Fiber Sort Multimode G.651 A1a:50/125 Graded-index fiber
A1b:62.5/125
Singlemode G.652(A,B,C) B1.1:Conventional fiber
G.652D B2: Zero dispersion shifted
G.655 B1.2 :Cut-off wavelength shifted
G.657(A1,A2 ,B3) B4: Main technical data for positive
dispersion shifted single-mode fiber





Company Indroduce:

Sichuan Yuantong Communication Co., Ltd, a national key high-tech Enterprise,which is located in the beautiful "land of abundance" - Chengdu, Southwest Airport Economic Development Zone, is next to Shuangliu International airport and airway expressway.

Our company is committed to R&D, manufacture all kinds of fiber optic cable including indoor&outdoor fiber optic cable, power optical fiber cable, submarine optical cable and special optical cable etc.

Yuantong has more than 200 staffs, of which 20% are senior engineers ,70% are mid-level empolyees.

Company has got many national approval certificates, such as ISO9001 quality management, ISO14001 environmental management, health management and TLC.

 A complete set of Advanced test equipments ensure each of the links from raw materials to perfect products is effectively controlled.

Also we have built a long-term strategic cooperative relationship with a number of domestic and oversea telecom operators. Products sold widely to America, Europe, Middle East, Africa, Southeast Asia, and other continents, annual sales reach$300 million, the production scale is in the forefront of the field.

Our company persist the quality policy "fast, efficient, high-quality" and the quality target

"be first in China, do best in the world", trying to make outstanding contribution for the whole world's communication development .



48 Core GJBFJV Indoor Fiber Optic Cable Tight Buffered CCC Listed 048 Core GJBFJV Indoor Fiber Optic Cable Tight Buffered CCC Listed 1



Certificate:

48 Core GJBFJV Indoor Fiber Optic Cable Tight Buffered CCC Listed 2



Exhibition home and abroad
48 Core GJBFJV Indoor Fiber Optic Cable Tight Buffered CCC Listed 3
