Place of Origin:
china
Brand Name:
YUANTONG
Certification:
ISO,ANATEL,ROSH,TLC，CCC
Model Number:
SC Fast Connector
Contact Us

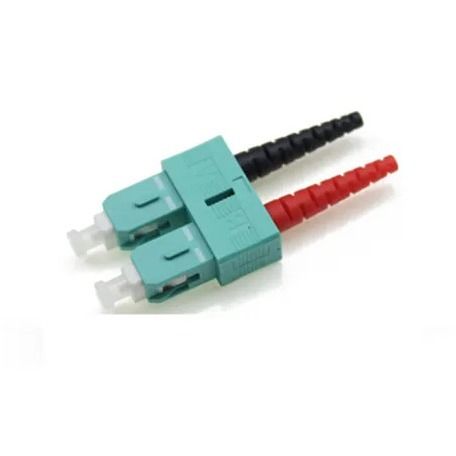

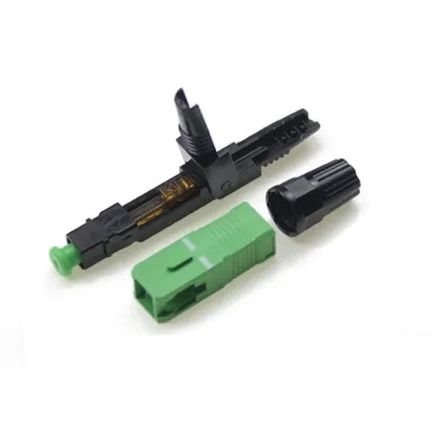

Fast Connector Drop Cable Sc Optic Fiber Fast/Quick Optica Cable Connector
Specification
1. Quick fiber connector
2. Easy assembly
3. Without further processing
4. Excellent stability
5. Low insertion loss,100%
Features
1. Easy assembly, no need special assembling tool
2. Without further processing, such as polishing
3. Excellent stability with low insertion loss, 100% qualified
4. Can reduce the defect rate because of being able to reconnect
Specifications
Item: |
Specification: |
Product Name: |
sc/pc fiber connector adapetr HM-FC10 |
Applicable for: |
3.1x2.0mm drop cable or 3.0/2.0/0.9mm cable |
Optical fiber diameter: |
φ125um (657A&657B) |
Tight buffer diameter: |
φ250um |
Fiber mode: |
Single mode |
Operation time: |
About 10s (exclude fiber cut) |
Insert loss: |
≤0.3dB (1310nm & 1550nm) |
Return loss: |
≥40dB |
Fastening strength of naked fiber: |
>5N |
Tight clamping force cladding: |
>8N |
Tensile strength: |
>50N |
Using temperature: |
-45°C~+80°C |
Item |
Single mode | Multi mode |
| Insertion loss | PC<0.3dB APC<0.2dB | <0.3dB |
| Return loss | PC>45dB APC>60dB | >25dB |
| Insert-pull test | 1000(times) <0.2dB | |
| Operating temperature | -40°C ~ +85°C | |
| Ceramic ferrule spec | 125.5um concentricity deviations: <1um | 127um concentricity deviations: <3um |
| Suitable fiber | PC/APC(9/125um) | PC(50/125um,62.5/125um) |
