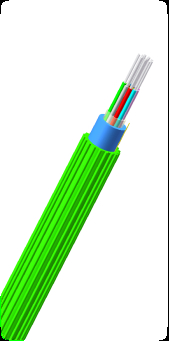

Name: GYCNXY Micro Air Blown Cable HDPE Sheath 2000m Blowing Distance
Brand: Sichuan Yuantong Communication Co., Ltd.
SKU: GYCNXY mini
Price: 0.15 USD
Availability: InStock

Home > products > Air Blown Micro Cable >

GYCNXY Micro Air Blown Cable HDPE Sheath 2000m Blowing Distance

HDPE air blown micro cable

2000m blowing distance cable

micro air blown cable sheath

Place of Origin:

China

Brand Name:

YTTX

Certification:

ISO9001 14001 45001

Model Number:

GYCNXY mini

Request A Quote

Product Details

Transport Package:

Wooden Drum

Strength Member:

Aramid Yarn

Fiber Type:

Single-mode Or Multimode

Cable Type:

Micro Cable

Cable Sheath:

HDPE

Sheath Color:

Orange

Jacket:

Outer Sheath:

PA12

Application:

Indoor And Outdoor

Armored Type:

NONE

Bending Radius:

10-20 Times Of Cable Diameter

Loose Tube:

PBT

Fiber:

200um G657A1

Microduct:

HDPE 14/12mm

Blowing Distance:

2000 Meter

Payment & Shipping Terms

Minimum Order Quantity

20KM

Packaging Details

Wooden plate

Payment Terms

T/T

GYCNXY Micro Air Blown Cable HDPE Sheath 2000m Blowing Distance

Get Best Price

Video

GYCFXY Air Blown Micro Cable with HDPE Sheath for Communication

Get Best Price

Video

EPFU High-Performance Air Blown Micro Cable for Communication

Get Best Price

Video

PA12 Jacket Air-Blown Cable for 1500 Meter Blown Distance Projects and Installations

Get Best Price

+86 159 2815 7093

Sales03@chinafibercable.com

86-28-85050348

Contact Now

Product Description

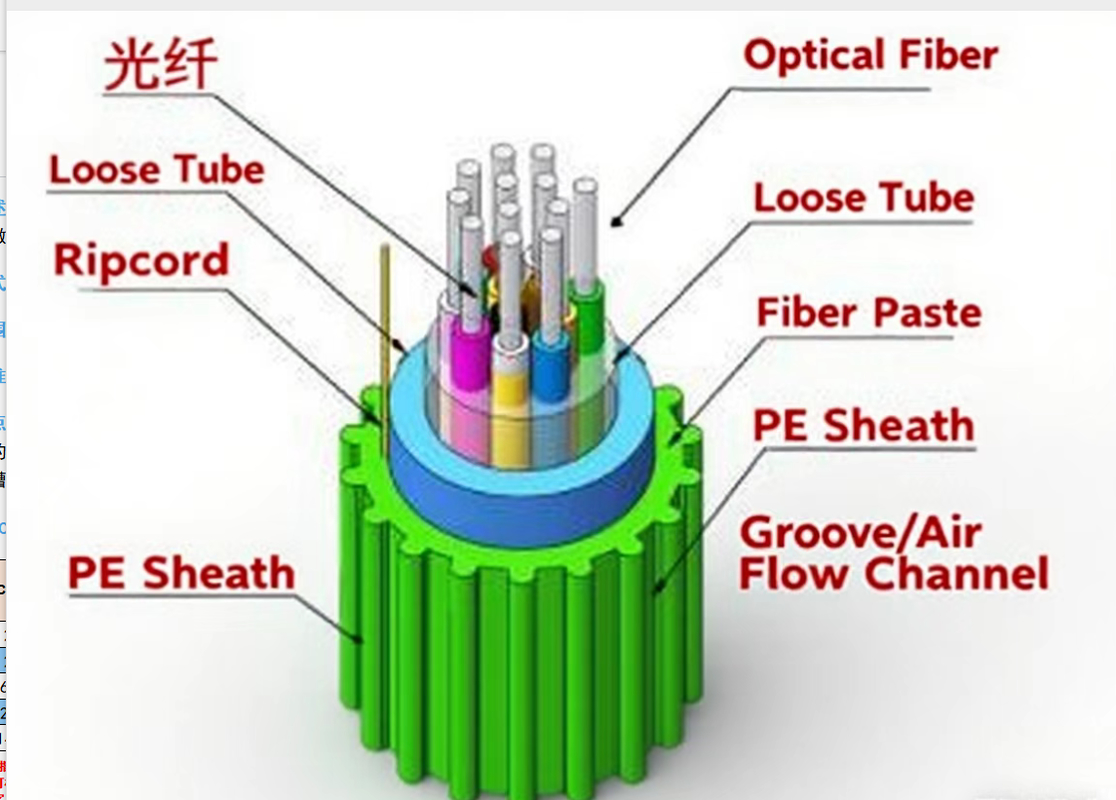

⫸ Product description: [Outdoor air blown optical cable for communication without reinforced components, central bundle tube type, high-density polyethylene sheath] The structure of the optical cable is to embed single-mode or multi-mode optical fibers into a high modulus plastic filled waterproof compound loose tube, place the loose tube in the center position, embed a tear rope, and extrude the high-density polyethylene sheath to form the cable.

⫸ Laying method: pipeline air blowing laying, etc.

Scope of application: Suitable for long-distance communication and inter office communication, etc.

⫸ Implementation standard: YD/T 1460.4-2019 Air blown miniature optical cables and fiber units for communication: miniature optical cables.

⫸ Product features: ① Reasonable design and precise control of the excess length of optical fibers in the loose tube, making the optical cable have excellent mechanical and environmental performance; ② Structural optimization design with optimal fiber capacity; ③ Unique process control to prevent wrinkling and peeling of the protective sheath during air blowing; ④ High density polyethylene outer sheath to increase air blowing distance; ⑤ The unique groove design on the surface of the sheath can serve as an airflow channel to enhance the blowing performance; ⑥ Lightweight, small outer diameter, excellent bending performance, and a designed lifespan of over 25 years for optical cables.
