Aramid Yarn ADSS Fiber Optic Cable

Place of Origin China
Certification ROSH ,TLC, CCC, ISO
Model Number ADSS-12
Minimum Order Quantity 20KM
Price Negotiable
Packaging Details Wooden Drum Plus Carton
Delivery Time 7 days
Payment Terms L/C, D/P, T/T, Western Union
Supply Ability 500km per week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Product Name 12 Core Aramid Yarn Water Blocking Tape FRP Strength Member ADSS Fiber Optical Cable Fiber Count 12 Core
Fiber Type G652D Cable Sheath HDPE
Cable Color Black Strength Member Aramid Yarn
Cable Use Aerial Sheath Single Sheath
High Light

Water Blocking ADSS Fiber Optic Cable


Aramid Yarn ADSS Fiber Optic Cable

Leave a Message
Product Description

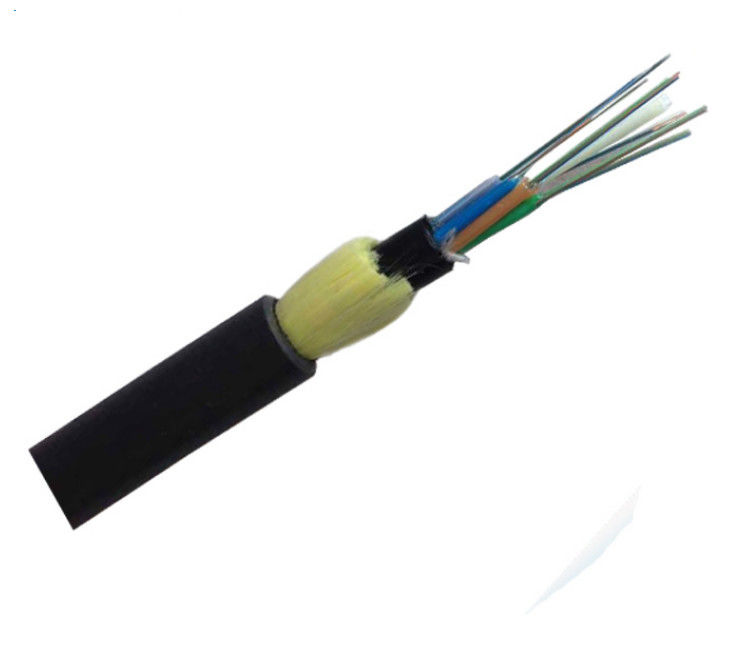

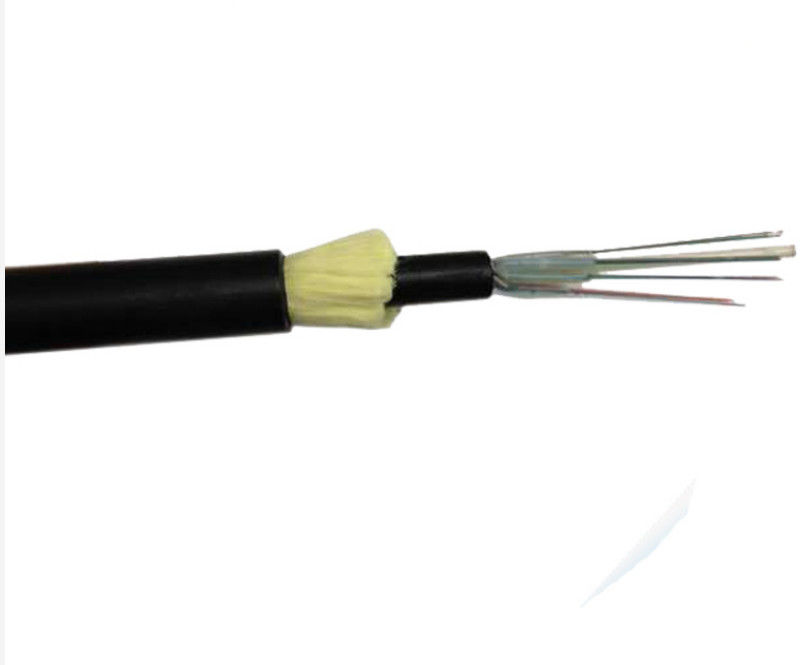

12 Core Aramid Yarn Water Blocking Tape FRP Strength Member ADSS Fiber Optical Cable

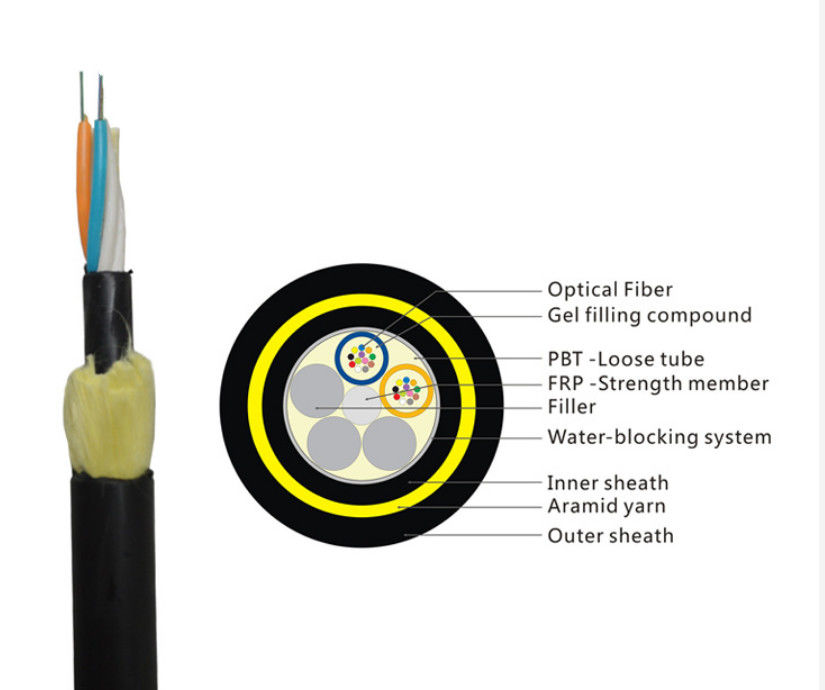

ADSS cable is loose tube stranded. Fibers, 250μm, are positioned into a loose tube made of high modulus plastics. The fibers are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of Kevlar. Between the Kevlar yarn and the loose tube water blocking material is applied to keep the cable compact and watertight. The cable is completed with a polyethylene (HDPE) or AT sheath.



1. Small cable diameter, light weight, 100m span, low attached load on tower

2. Tensile strength is over 90KN

3. The following measures are taken to ensure the cable watertight:
4. Single Fiber Reinforced Plastic as the central strength member
5. Loose tube filling compound
6. 100% cable core filling



1. Long distance communication and local area network, especially suitable for long span environment,complex area.

2. Erect on the same pole with power line in new and old power line.


Cable Performance Parameter
Span meter 200 300 400
Related Strength Tension(RTS) 17.5 kn 20.6 kn 28 kn
Max Allowable Tension(MAT) 6.9 kn 8.2 kn 11.5 kn
Allowable Crush Resistance Long Term: 1100 n/100mm Long Term: 1100 n/100mm Long Term: 1100 n/100mm
Short Term: 2200 n/100mm Short Term: 2200 n/100mm Short Term: 2200 n/100mm
Minimum Bending Radius Operating: 220 mm Operating: 220 mm Operating: 220 mm
Installlation: 360 mm Installlation: 360 mm Installlation: 360 mm
Temperature Range Operating: -40 /+70℃ Operating: -40 /+70℃ Operating: -40 / +70℃
Installlation: -15 / +60℃ Installlation: -15 / +60℃ Installlation: -15 / +60℃
Out Sheath Material Electrical Resistance AT (Borealis material 6081) Sheath
Note ice accretion 5MM,weed speed:30M/S


Fiber Parameters


Category Description Specifications
Optical Specifications Attenuation @1310nm ≤0.36dB/km
@1550nm ≤0.22dB/km
Attenuation discontinuity ≤0.05 dB
Attenuation vs. Wavelength @1285~1330nm ≤0.05 dB/km
@1525~1575nm ≤0.05 dB/km
Zero Dispersion Wavelength 1300~1324nm
Zero Dispersion Slope ≤0.092ps/(nm2.km)
Dispersion @1310nm ≤3.5 ps/nm.km
@1550nm ≤18 ps/nm.km
Polarization Mode Dispersion(PMD) ≤0.2ps/km1/2
Cable Cutoff Wavelength(λcc) ≤1260nm
Effective Group Index of Refraction @1310nm 1.4675
@1550nm 1.4681
Macro bend loss (30mm radius,100turns) 1625nm ≤0.1 dB
Mode Field Diameter @1310nm 9.2±0.6μm
@1550nm 10.4±0.8μm
Cladding Diameter 125±1μm
Cladding Non-Circularity ≤1.0%
Coating Diameter 245±7μm
Coating/Cladding Concentricity Error ≤8μm
Core/Cladding Concentricity Error ≤0.8μm
Proof Test level ≥1.0%
Fiber Curl Radius ≥4.0m
Peak Coating Strip Force 1.3~8.9N


1. Are you the real manufacturer?
Yes. We are the real manufacturer with 18 years' history.

2. What is your fiber brand ?
Corning, SEI, YOFC, FiberHome, etc

3. Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.

4.What is your warranty period?
25 years for fiber optic cable

5. Which kind of certification you have ?
ISO9001, SGS, 3C Anatel.

6. What is your delivery time?
Usually within 2-3 working days

7. What about your annual production capacity?
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.

8. What is your payment way?
T/T, L/C, Western Union and Paypal.

9. Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.

10. Can you supply your cable test value form?
-Yes. After finishing production , we can supply if you ask.

11. Do your factory inspect every roll of cables?
-Yes. we factory do 100% inspection per order.
