1 Core FTTH Drop Cable Steel Wire Strength Member G657A LZSH Jacket

  • 1 Core FTTH Drop Cable Steel Wire Strength Member G657A LZSH Jacket
  • 1 Core FTTH Drop Cable Steel Wire Strength Member G657A LZSH Jacket
  • 1 Core FTTH Drop Cable Steel Wire Strength Member G657A LZSH Jacket
Place of Origin China
Brand Name YUANTONG
Certification ROSH ,TLC, CCC, ISO
Model Number FTTH Drop Cable-1 Core
Minimum Order Quantity 20KM
Price Negotiable
Packaging Details Wooden Drum
Delivery Time 7 days
Payment Terms L/C, T/T, Western Union, D/P
Supply Ability 500km per week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model NO FTTH Drop Cable Type Fiber Optic Cable
Material Shape Sichuan, China Color Black
Fiber Type G657A1 Fiber Cou 1/2/4 CORE
Certification CE/RoHS/ISO9001 Application FTTH
High Light

1Core FTTH Drop Cable

,

G657A FTTH Drop Cable

,

LZSH Jacket Fiber Optic Cable
Leave a Message
Product Description
1 Core FTTH Drop Cable Steel Wire Strength Member G657A LZSH Jacket
Product Description

Description
FTTH fiber optic cable is Fiber to Home, which used for linking the equipment and components in fiber optic network.The fibers is position between two FRP/KFRP or parallel steel wire. Then this cable is completed with black or white LSZH sheath.

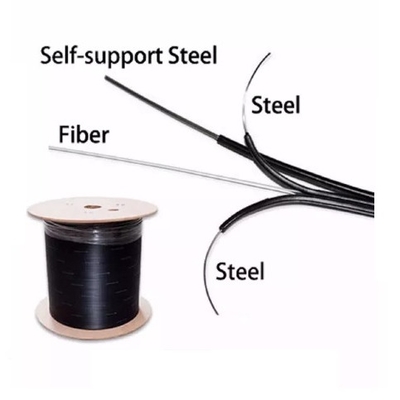

Cable Construction
Fiber:250µm colorfiber G657A1
Self-supported Member:Steel Wire or Fiberglass reinforced plastic (FRP)
Outer Jacket:UV and Flame resistant LSZH


Applications
• Outdoor/Indoor wiring system
• FTTH, terminal system

Optical Characteristics

Type Fiber attenuation(+20℃) OFL Band Width 10G Ethernet link length Minimum bending radius
Condition 1310/1550nm 850/1300nm 850/1300nm 850nm 850nm /
Typical value MAX Typical value MAX
Unit dB/km dB/km dB/km dB/km MHZ.km MHZ.km m mm
G657A1 0.36/0.22 0.5/0.4 --- --- --- --- --- 10
G657A2 0.36/0.22 0.5/0.4 --- --- --- --- --- 7.5
OM3 --- --- 3.0/1.0 3.5/1.5 ≥1500/500 ≥2000 ≤300 30
OM4 --- --- 3.0/1.0 3.5/1.5 ≥3500/500 ≥4700 ≤550 30



Technical parameters

Product
Model		 Fiber
Count
(core)		 Cable Diameter(mm) Cable Weight
(kg/km)		 Tensile
Strength
Long/Short
Term(N)

Crush

Resistance
Long/ShortTerm(N)

 Bending
Radius
Static/Dynamic
GJYXFCH 1 (2.1+0.1)*(5.1+0.1) 20 1500/2500 500/1300 15/30
GJYXFCH 2 (2.1+0.1)x(5.1+0.1) 20 1500/2500 500/1300 15/30
GJYXFCH 4 (2.1+0.1)x(5.1+0.1) 20 1500/2500 500/1300 15/30



 1 Core FTTH Drop Cable Steel Wire Strength Member G657A LZSH Jacket 0





1 Core FTTH Drop Cable Steel Wire Strength Member G657A LZSH Jacket 1







1 Core FTTH Drop Cable Steel Wire Strength Member G657A LZSH Jacket 2





FAQ
1. Are you the real manufacturer?
Yes. We are the real manufacturer with 18 years' history.

2. What is your fiber brand ?
Corning, SEI, YOFC, FiberHome, etc

3. Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.

4.What is your warranty period?
25 years for fiber optic cable

5. Which kind of certification you have ?
ISO9001, SGS, 3C Anatel.

6. What is your delivery time?
Usually within 2-3 working days

7. What about your annual production capacity?
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.

8. What is your payment way?
T/T, L/C, Western Union and Paypal.

9. Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.

10. Can you supply your cable test value form?
-Yes. After finishing production , we can supply if you ask.

11. Do your factory inspect every roll of cables?
-Yes. we factory do 100% inspection per order.
