2*0.5mm FRP FTTH Drop Cable GJXFH 1/2/4/6 Cores Butterfly Lead In Optical Cable

2*0.5mm FRP FTTH Drop Cable GJXFH 1/2/4/6 Cores Butterfly Lead In Optical Cable

FRP FTTH drop cable 2 cores

FRP FTTH drop cable 1 cores

2*0.5mm frp drop cable

Place of Origin:

China

Brand Name:

YUANTONG

Certification:

ROSH ,TLC, CCC, ISO

Model Number:

GJXFH 1/2/4/6 cores

Contact Us

Request A Quote
Product Details
Type:
FTTH Fiber Optic Cable
Model Number:
GJXFH
Strength Member:
2 Frp
Fiber Type:
G652D/G657A1/G657A2/OM1/OM2/OM3/OM4
Jacket Color:
White ,black Or Customization
Jacket Material:
LSZH
Operation Temperature::
-40℃~+60℃
Supply Ability:
10000 Kilometer/Kilometers Per Month
Payment & Shipping Terms
Minimum Order Quantity
20KM
Price
Negotiable
Packaging Details
Wooden Drum
Delivery Time
7 days
Payment Terms
L/C, T/T, Western Union, D/P
Supply Ability
500km per week
Product Description
Ftth drop cable GJXFH 1/2/4/6 cores 2*0.5mm FRP FTTH flat drop cable
Product Description

Description

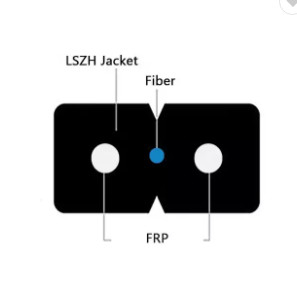

The butterfly lead-in optical cable for GJXFH access network is to place the optical communication unit in the center, place two parallel non-metallic reinforcement elements (FRP) on both sides, and finally extrude black or color low smoke halogen-free sheath to form the cable..

Features

1.Special bending resistant optical fiber, providing greater broadband and enhancing network transmission characteristics

2.Two parallel FRP reinforcing elements enable the optical cable to have good compression resistance and protect the optical fiber

3.Optical cable has simple structure, light weight and strong practicability

4.Unique groove design, easy peeling, convenient connection, and simplified installation and maintenance



Application

1.Applicable to fiber to the home, indoor horizontal and vertical wiring

2.Applicable to fiber indoor carpet and wall corner wiring



Fiber Counts
NNCable Diametre (mm)
Net Weight (kg/km)
Tensile Strength Long/Short Term (N)
Crush Resistance Long/Short Term (N)
Bending Radius
Static/Dynamic
(mm)
1
(2.0±0.2)×(3.0±0.2)
7.5
30/60
300/1000
15/30
2
(2.0±0.2)×(3.1±0.2)
7.7
30/60
300/1000
15/30
4
(2.0±0.2)×(3.2±0.2)
8.0
30/60
300/1000
15/30
6
(2.0±0.2)×(3.3±0.2)
8.5
30/60
300/1000
15/30
8
(2.5±0.2)×(3.5±0.2)
9.3
30/60
300/1000
15/30
12
(2.5±0.2)×(3.6±0.2)
9.5
30/60
300/1000
15/30



2*0.5mm FRP FTTH Drop Cable GJXFH 1/2/4/6 Cores Butterfly Lead In Optical Cable 0

2*0.5mm FRP FTTH Drop Cable GJXFH 1/2/4/6 Cores Butterfly Lead In Optical Cable 1



2*0.5mm FRP FTTH Drop Cable GJXFH 1/2/4/6 Cores Butterfly Lead In Optical Cable 2

2*0.5mm FRP FTTH Drop Cable GJXFH 1/2/4/6 Cores Butterfly Lead In Optical Cable 3





FAQ
1. Are you the real manufacturer?
Yes. We are the real manufacturer with 18 years' history.

2. What is your fiber brand ?
Corning, SEI, YOFC, FiberHome, etc

3. Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.

4.What is your warranty period?
25 years for fiber optic cable

5. Which kind of certification you have ?
ISO9001, SGS, 3C Anatel.

6. What is your delivery time?
Usually within 2-3 working days

7. What about your annual production capacity?
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.

8. What is your payment way?
T/T, L/C, Western Union and Paypal.

9. Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.

10. Can you supply your cable test value form?
-Yes. After finishing production , we can supply if you ask.

11. Do your factory inspect every roll of cables?
-Yes. we factory do 100% inspection per order.
