Fiber Optic 12 Core GYXTW SM Unitube Armored Fiber Cable Low Dispersion

Place of Origin China
Brand Name YUANTONG
Certification ROSH ,TLC, CCC, ISO
Model Number GYXTW 12cores
Minimum Order Quantity 20KM
Price Negotiable
Packaging Details Wooden Drum
Delivery Time 7 days
Payment Terms L/C, T/T, Western Union, D/P
Supply Ability 500km per week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Outdoor Fiber Optic Cable Model Number GYXTW
Strength Member 2 Steel 1.2mm Fiber Type G652D/G657A1/G657A2/OM1/OM2/OM3/OM4
Jacket Color Black Or Customization Jacket Material LSZH Or PE
Operation Temperature -40℃~+60℃ Supply Ability 10000 Kilometer/Kilometers Per Month
Pure Wooden Drum Package 1-4km Delivery Time According Your Address
High Light

Low dispersion Light armored Cable

,

fiber optic 12 core GYXTW SM

,

Unitube Armored Fiber Cable

Leave a Message
Product Description
YTTX 12 Core GYXTW SM/OM2/OM3/OM4 Fiber Optic Cable Unitube Light-armored cable
Product Description

Description

12 Core GYXTW Fiber Optic Cable Unitube Light-armored cable Aerial Duct Direct Burial two parallel steel wires 1.2mm strength members with a water-resistant filling compound Jelly is widely used in Aerial/Duct/Direct Burial application. This type of fiber optic cable has been praised due to its exceptional performance in Long Distance Symmetric role. As a matter of fact, GYXTW fiber optic cable plays an important role in the telecommunication industry and it’s highly recommended by many technicians.

Features

Low dispersion and attenuation
Proper design, precise control for fiber excess length and distinct stranding process render the cable excellent mechanical and environmental properties
Double-jacket structure make cable have nice properties of moisture resistance and crush resistance
With small cable diameter, light cable weight, easily to lay
Operating Temperature : -40 ~ +60 ℃
Waterproofing layer providing strong water-resistance performance
Steel tape with PE outer sheathing and metallic strengthening member enhancing anti-crush and tensile property of cable
Up to 24 fiber cores
The loose tube is centrally situated with good excess length and minimizes the influence of lateral crush.
Double wire as strength member provides excellent strain performance.



Application

These central loose tube optical fiber ribbon cables are suitable for installation in aerial or duct environment for communication between bureaus, metropolitan network, access network and is especially suitable for the situation where high-density fibers is expected.
Laying modes: Aerial & Conduit
Rural communication, local trunk line, CATV & computer networks system
Long-distance communication and LAN

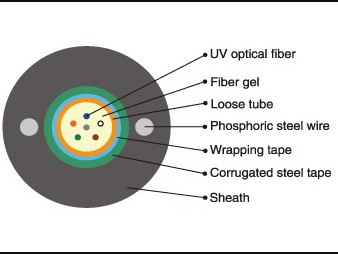

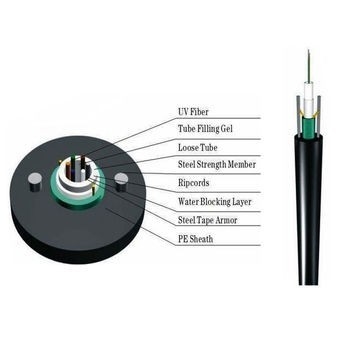

Structure configurations:
Waterproofing layer between the steel tape and cable core.
Double-sided PE corrugated steel tape with PE sheath
Parallel double steel wire as strengthening member


Cable Type Fiber Count Cable Diameter
mm
Cable Weight
Kg/km
Tensile Strength
Long/Short Term N
Crush Resistance
Long/Short Term
N/100m
Bending Radius
Static/Dynamic
mm
GYXTW-2~12 2~12 9.0 85 600/1000 500/1500 15D/30D
GYXTW-14~24 14~24 9.0 85 600/3000 1000/3000 15D/30D
GYXTW-2~12 2~12 10.0 105 1000/3000 1000/3000 15D/30D
GYXTW-14~24 14~24 10.0 105 1000/3000 1000/3000 15D/30D
GYXTW-26~36 26~36 14.0 190 1000/3000 1000/3000 15D/30D
GYXTW-38~48 38~48 15.0 216 1000/3000 1000/3000 15D/30D





Fiber Optic 12 Core GYXTW SM Unitube Armored Fiber Cable Low Dispersion 0







Fiber Optic 12 Core GYXTW SM Unitube Armored Fiber Cable Low Dispersion 1





FAQ
1. Are you the real manufacturer?
Yes. We are the real manufacturer with 18 years' history.

2. What is your fiber brand ?
Corning, SEI, YOFC, FiberHome, etc

3. Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.

4.What is your warranty period?
25 years for fiber optic cable

5. Which kind of certification you have ?
ISO9001, SGS, 3C Anatel.

6. What is your delivery time?
Usually within 2-3 working days

7. What about your annual production capacity?
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.

8. What is your payment way?
T/T, L/C, Western Union and Paypal.

9. Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.

10. Can you supply your cable test value form?
-Yes. After finishing production , we can supply if you ask.

11. Do your factory inspect every roll of cables?
-Yes. we factory do 100% inspection per order.
