Place of Origin:
China
Brand Name:
YTTX
Certification:
CE, ROHS, ISO9001
Model Number:
GYTA53
Contact Us

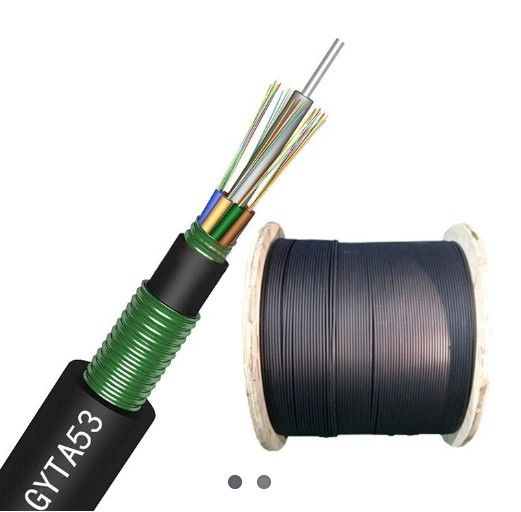

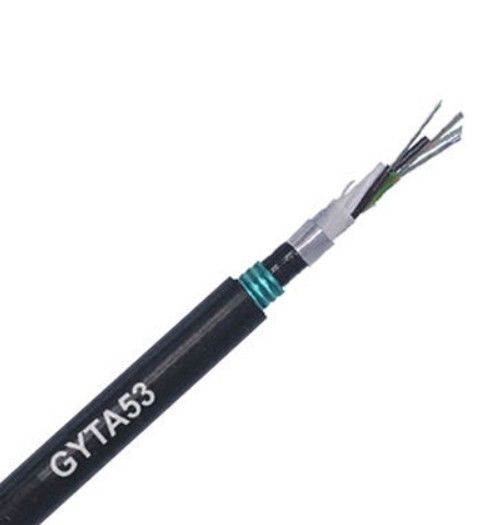

This fiber optic cable Stranded Loose Tube Armored Cable GYTA53 is designed with a steel wire as a strength member, ensuring that it is strong and durable enough to withstand any installation method. The cable is also armored with aluminum alloy, which provides additional protection against any external damage.

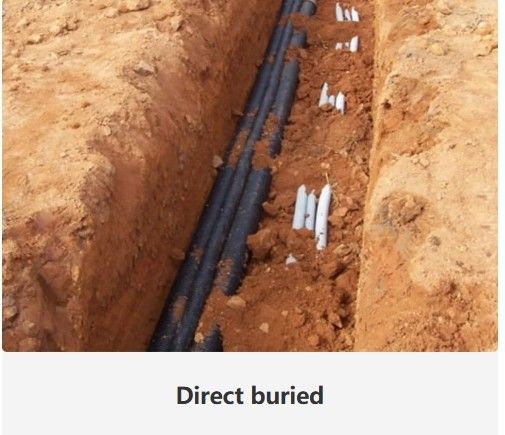

One of the best features of this fiber optic cable is its installation method. The Direct Buried Fiber Optic Cable is designed specifically for direct burial, which means that it can be installed directly into the ground without the need for any additional conduit or protective tubing.
This makes the Buried Fiber Optic Cable Installation process much simpler and more cost-effective. It also means that there is less chance of damage or interference to the cable during installation, which can help to improve the overall signal quality and reduce the likelihood of any downtime or service interruptions.
Another key benefit of this fiber optic cable is its high return loss of ≥50dB. This means that it is highly efficient at transmitting data over long distances, with minimal signal loss or distortion.
If you require a Fiber Wire with Burial Design for your next project, then our Direct Buried Fiber Optic Cable is the perfect solution. It is robust, reliable, and easy to install, making it an ideal choice for any aerial, duct, or direct bury fiber cable installation.

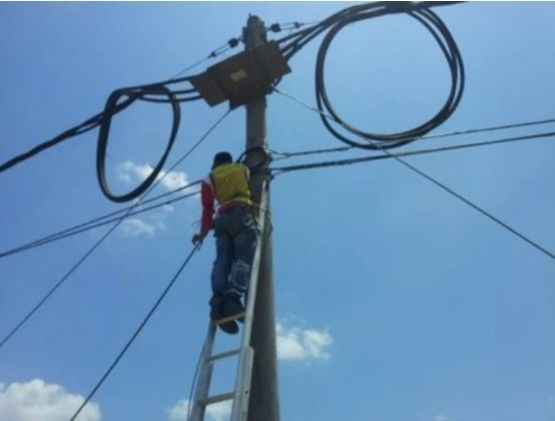

This Direct Buried Fiber Optic Cable product is suitable for various applications, including aerial, duct and direct buried installations. The cable is designed to withstand crush forces between 1000-3000N/100mm and features a return loss of at least 50dB. Its core can accommodate between 2 to 144 cores. With its ability to withstand storage temperatures between -20~+70℃, this underground fiber optic cable construction is perfect for buried fiber optic cable installation. It is recommended to use the fiber optics cabling burial method to ensure its optimal performance and longevity.

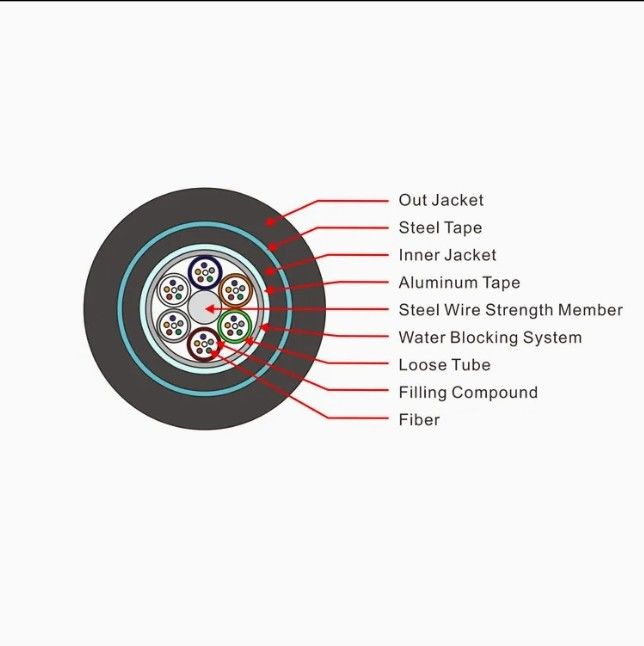

| Model NO. | Stranded Loose Tube Armored Cable GYTA53 |
| Structure | SZ Stranded Loose Tube |
| Loose Tube | PBT Loose Tube |
| Connection Structure | Steel Wire As Strength Member |
| Armored Type | Steel Tape |
| Cable Diameter | 12.2-19.7mm |
| Weight | 145-365kg/km |
| Insertion Loss | ≤0.3dB |
| Return Loss | ≥50dB |
| Storage Temperature | -20~+70℃ |
This Direct Buried Fiber Optic Cable is suitable for Fiber Optics Cabling Burial Method and Underground Fiber Optic Cable Construction. It can be directly laid in the ground for high-speed data transmission.
The GYTA53 model number is a testament to the quality of this product, which is made in China and certified by CE, ROHS, and ISO9001. With a minimum order quantity of 10km, the price is negotiated based on your specific needs. The packaging details include wooden or plastic drums, while the delivery time depends on the amount of product ordered.
The YTTX GYTA53 Direct Buried Fiber Optic Cable is a versatile solution that can be used in a wide range of product application occasions and scenarios. One of its primary uses is in underground fiber optic cable construction, where its rugged sheath material made of PE and connection structure made of steel wire as strength member ensure superior protection and durability against external factors such as moisture, rodents, and other threats.
Whether you need to install fiber optic cables for telecommunications, broadband, or other network applications, this stranded loose tube armored cable GYTA53 is sure to meet your requirements. With a return loss of 50dB or higher, you can be confident in the quality and performance of this product.
So why wait? Order the YTTX GYTA53 Direct Buried Fiber Optic Cable today and enjoy its exceptional reliability, durability, and performance for your underground fiber optic cable construction needs.
Product Packaging:

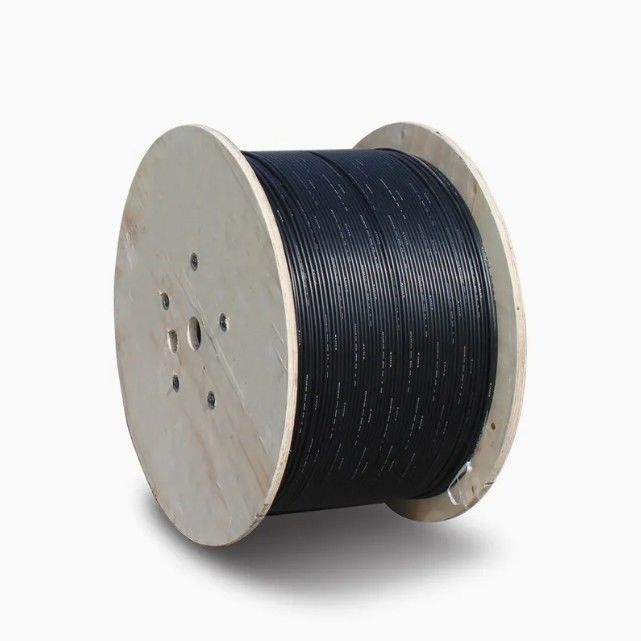

The Direct Buried Fiber Optic Cable is packaged in a durable and sturdy wooden reel. The cable is carefully wound around the reel to prevent any damage or tangling during transportation and storage.
The reel is then wrapped in a protective plastic cover to ensure that the cable remains clean and dry. The product is labeled with all necessary information including length, fiber count, and any other relevant specifications.
Shipping:
The Direct Buried Fiber Optic Cable is shipped via a reliable and trusted courier service. The cable is carefully loaded onto a truck or other appropriate transportation vehicle to ensure that it is not damaged during transit.
Customers will receive a tracking number to monitor the delivery status of their product. It is recommended that customers inspect their shipment upon arrival to ensure that the product has arrived in good condition.
What is the brand name of the Direct Buried Fiber Optic Cable?
The brand name of the Direct Buried Fiber Optic Cable is YTTX.
2.What is the model number of the Direct Buried Fiber Optic Cable?
The model number of the Direct Buried Fiber Optic Cable is GYTA53.
3.Where is the Direct Buried Fiber Optic Cable manufactured?
The Direct Buried Fiber Optic Cable is manufactured in China.
4.What certifications does the Direct Buried Fiber Optic Cable have?
The Direct Buried Fiber Optic Cable has CE, ROHS, and ISO9001 certifications.
5.What is the minimum order quantity for the Direct Buried Fiber Optic Cable?
The minimum order quantity for the Direct Buried Fiber Optic Cable is 10km.
6.What is the price of the Direct Buried Fiber Optic Cable?
The price of the Direct Buried Fiber Optic Cable is negotiated.
7.What is the packaging of the Direct Buried Fiber Optic Cable?
The Direct Buried Fiber Optic Cable is packaged in wooden or plastic drums.
8.What is the delivery time for the Direct Buried Fiber Optic Cable?
The delivery time for the Direct Buried Fiber Optic Cable depends on the amount ordered.
9.What are the payment terms for the Direct Buried Fiber Optic Cable?
The payment terms for the Direct Buried Fiber Optic Cable are T/T.
10.What is the supply ability of the Direct Buried Fiber Optic Cable?
The supply ability of the Direct Buried Fiber Optic Cable is 1000km/5 days.
