GYXTW Steel Armored Loose Tube Fiber Optic Cable 1000m

GYXTW Steel Armored Loose Tube Fiber Optic Cable 1000m

steel armored fiber optic cable

outdoor aerial fiber cable 1000m

loose tube fiber optic cable

Brand Name:

YUANTONG

Certification:

ISO

Model Number:

GYXTW

Contact Us

Request A Quote
Product Details
Cable Type:
Loose Tube
Core:
Multicore
Oem:
Supported
Optical Cable Length:
3000m/drum
Loose Tube:
PBT
Material Of Jacket:
Black Polyethylene (PE)
Installation Temperature:
-20°C To 60°C
Armored:
Yes
Armored Material:
Steel
Storage Temperature:
-20°C To +60°C
Strength Member:
FRP
Cable Length:
1000m
Payment & Shipping Terms
Packaging Details
Drum
Product Description

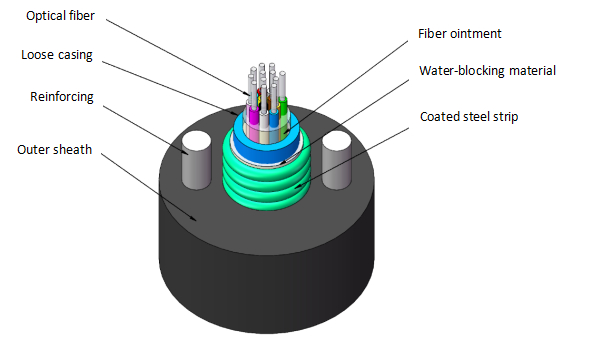

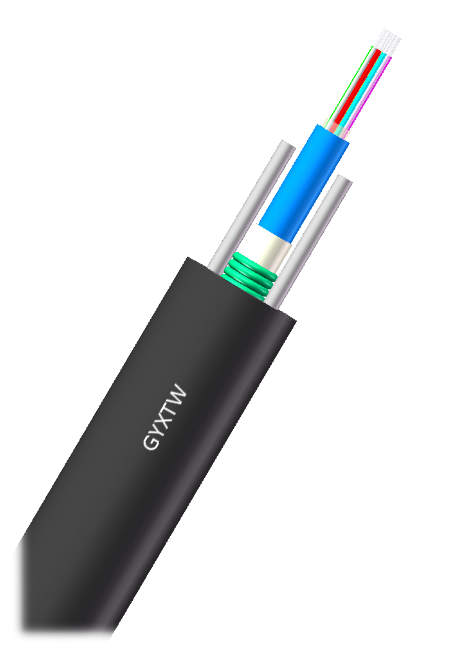

Product Description 【 Metal reinforced component, center tube type, fully filled, steel-polyethylene bonded sheathed communication outdoor optical cable 】 The structure of the optical cable is to insert single-mode or multi-mode optical fibers into a loose tube made of high modulus plastic filled with waterproof compound and place it at the center of the cable. Water-blocking materials are placed between the outside of the tube and the steel strip. Two parallel steel wires are embedded in the sheath as reinforcing supports, and the outer side is extruded and wrapped with polyethylene bonded sheath to form the cable.

GYXTW Steel Armored Loose Tube Fiber Optic Cable 1000m 0
Youdaoplaceholder0 Laying methods: non-self-supporting overhead, pipeline, etc.


Youdaoplaceholder0 Application scope: suitable for long-distance communication and inter-office communication, etc.


Youdaoplaceholder0 execution standard: YD/T 769-2010 central tubular communication outdoor optical cable.


Youdaoplaceholder0 Product features:

① Reasonable design and precise control of the excess length of the optical fiber in the loose tube endow the optical cable with excellent mechanical and environmental performance;

② The optical cable has a compact structure. Water-blocking materials are added between the steel tape and the loose tube, which not only ensures the moisture-proof and water-blocking effect of the optical cable, but also guarantees that the return of the loose tube is small after the optical cable is laid.

③ Optical cables are light in weight and easy to lay.

④ The optical cable has excellent flexibility and bending resistance. The steel tape armoring has strong pressure resistance and certain pressure resistance capacity.


Youdaoplaceholder0 technical parameters (typical values) :



Model core

Outer diameter

/mm

Stretching /N Flatten N/100mm Minimum bending radius /mm

Single-mode optical

fiber attenuation  dB/KM

Applicable

temperature /℃

Reference weight

of optical cable

kg/KM

长期 短暂 长期 短暂 动态 静态 1310nm 1550nm
GYXTW 1-6

7.5



600 1500 300 1000 20D 10D ≤0.36 ≤0.22 -40~+60 54
GYXTW 7-12

8.2



600 1500 300 1000 20D 10D ≤0.36 ≤0.22 -40~+60 72
GYXTW 14-18 8.8 600 1500 300 1000 20D 10D ≤0.36 ≤0.22 -40~+60 85
GYXTW 20-24 9.2 600 1500 300 1000 20D 10D ≤0.36 ≤0.22 -40~+60 98
