Place of Origin:
China
Brand Name:
YUANTONG
Certification:
ROSH ,TLC, CCC, ISO
Model Number:
ADSS-144
Contact Us

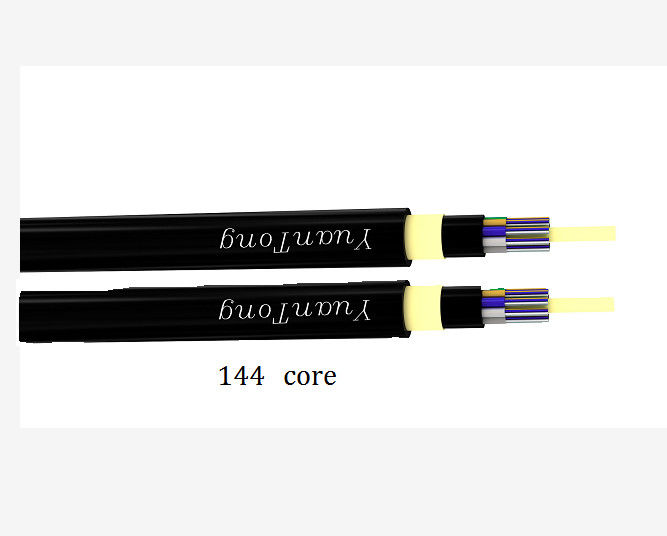

144core Arimid Yarn Member ADSS Fiber Optic Cable For Aerial
Quick detail

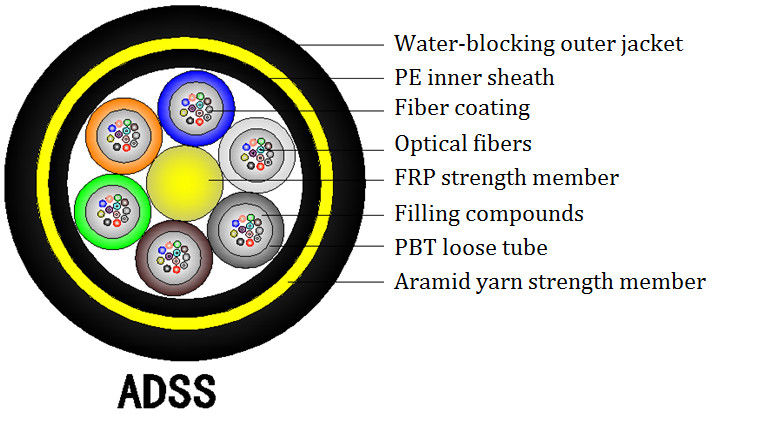

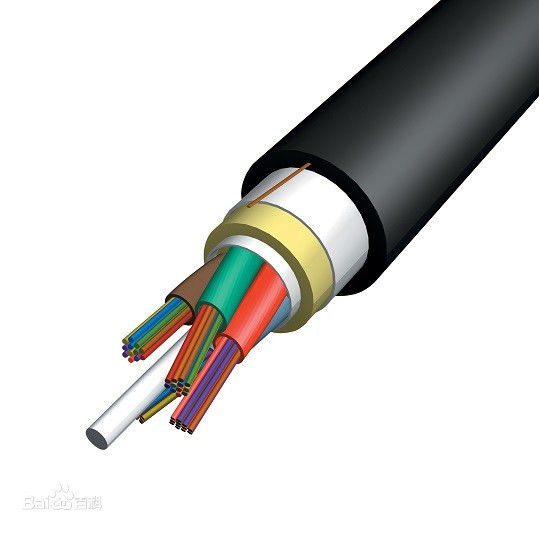

The fibers are positioned in a loose tube made of PBT. The tubes are filled with a water-resistant filling compound. A fibre reinforce plastic locates in the center of core as a non-metallic strength member.
The tube(and the fillers) are stranded around the strength member into a compact and circular core.
The cable core is covered with a PE inner sheath. After the aramid yarns covered over the inner sheath, the cable is completed with a PE or AT outer sheath.
Characteristics
1. Small cable diameter, light weight, 150m span, low attached load on tower
2. Tensile strength is over 90KN
3. Non-metal structure, good insulation, anti-thunder
4. Fine production technology, even force for aramid fiber, with superior stress flexibility
5. Adapt for bad climate
6. May construct without power cut, a power line failure doesn’t influence cable’s normal transfer
7. Tensile units are elastic modulus aramid fiber
8. Electric trace resistant outer sheath is adopted to run safely under a circumstance of space electric field (E)≤25KV/m
Application
1. Long distance communication and local area network, especially suitable for long span environment,complex area.
2. Erect on the same pole with power line in new and old power line.
| Category | Description | Specifications | |
| G.652D | |||
| Optical Specifications | Attenuation | @1310nm | ≤0.36dB/km |
| @1550nm | ≤0.22dB/km | ||
| Attenuation discontinuity | ≤0.05 dB | ||
| Attenuation vs. Wavelength | @1285~1330nm | ≤0.05 dB/km | |
| @1525~1575nm | ≤0.05 dB/km | ||
| Zero Dispersion Wavelength | 1300~1324nm | ||
| Zero Dispersion Slope | ≤0.092ps/(nm2.km) | ||
| Dispersion | @1310nm | ≤3.5 ps/nm.km | |
| @1550nm | ≤18 ps/nm.km | ||
| Polarization Mode Dispersion(PMD) | ≤0.2ps/km1/2 | ||
| Cable Cutoff Wavelength(λcc) | ≤1260nm | ||
| Effective Group Index of Refraction | @1310nm | 1.4675 | |
| @1550nm | 1.4681 | ||
| Macro bend loss (30mm radius,100turns) 1625nm | ≤0.1 dB | ||
|
Geometric Specifications |
Mode Field Diameter | @1310nm | 9.2±0.6μm |
| @1550nm | 10.4±0.8μm | ||
| Cladding Diameter | 125±1μm | ||
| Cladding Non-Circularity | ≤1.0% | ||
| Coating Diameter | 245±7μm | ||
| Coating/Cladding Concentricity Error | ≤8μm | ||
| Core/Cladding Concentricity Error | ≤0.8μm | ||
|
Mechanical Specifications |
Proof Test level | ≥1.0% | |
| Fiber Curl Radius | ≥4.0m | ||
| Peak Coating Strip Force | 1.3~8.9N | ||
| Fiber Count |
Outer Dia. (mm) |
Tensile Resistance(N) |
Crush Resistance (N/100m) |
Mini Bending Radius (mm) |
Attenuation (dB/km) |
Operation Temperature (℃) |
N.W. (kg/km) |
||||
| 86-144 | 12.2 | 1000 | 3000 | 1000 | 3000 | 10D | 20D | ≤ 3.0 | ≤ 1.5 | -40℃~+60℃ | 148 |
