FRP G652D 96core ADSS Fiber Optic Cable For Outdoor Aerial

FRP G652D 96core ADSS Fiber Optic Cable For Outdoor Aerial

G652D ADSS Fiber Optic Cable

FRP ADSS Fiber Optic Cable

96core outdoor optical fiber cable

Place of Origin:

China

Brand Name:

YUANTONG

Certification:

ROSH ,TLC, CCC, ISO

Model Number:

ADSS-96

Contact Us

Request A Quote
Product Details
Product Name:
96core ADSS Fiber Optic Cable
Fiber Count:
96core
Fiber Type:
G652D
Loose Tube:
PBT
Cable Sheath:
HDPE
Cable Color:
Black
CSM:
FRP
Strength Member:
Armid Yarn
Cable Use:
Aerial
Payment & Shipping Terms
Minimum Order Quantity
20KM
Price
Negotiable
Packaging Details
Wooden Drum Plus Carton
Delivery Time
7 days
Payment Terms
L/C, D/P, T/T, Western Union
Supply Ability
500km per week
Product Description
PRODUCT DESCRIPTION

96core Arimid Yarn Member ADSS Fiber Optic Cable For Aerial



Quick detail

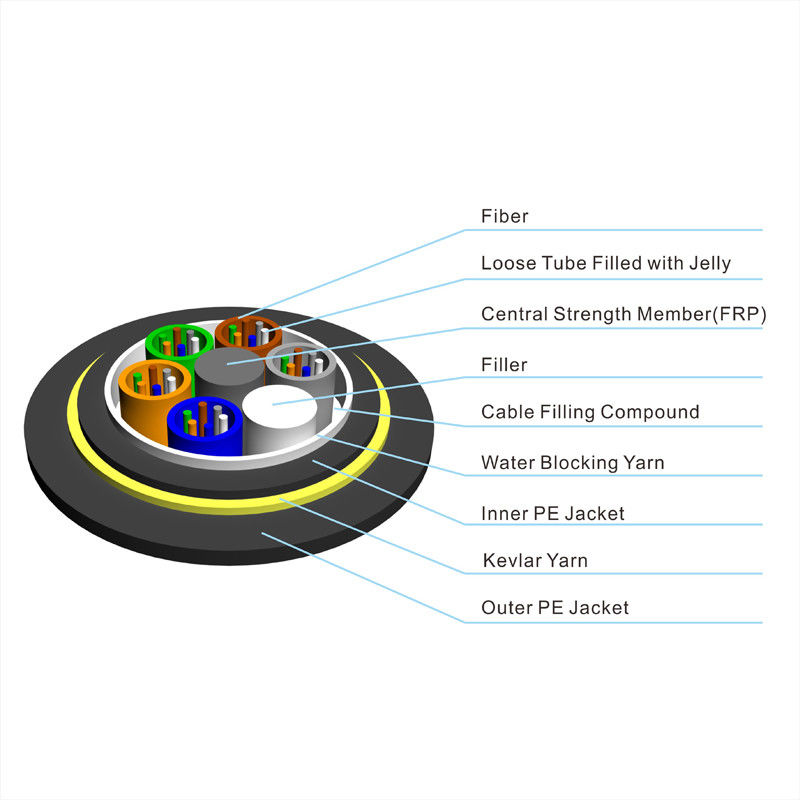

cable is loose tube stranded. Fibres are positioned into a loose tube made of high modulus plastics. The tubes are filled with a water-resistant around FRP(Fibre Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound, it is covered with a thin polyethylene (PE) inner sheath. After two layers of Aramid yarns are applied in two directions over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.



Characteristics

1. Small cable diameter, light weight, 150m span, low attached load on tower

2. Tensile strength is over 90KN

3. Non-metal structure, good insulation, anti-thunder

4. Fine production technology, even force for aramid fiber, with superior stress flexibility

5. Adapt for bad climate

6. May construct without power cut, a power line failure doesn’t influence cable’s normal transfer

7. Tensile units are elastic modulus aramid fiber

8. Electric trace resistant outer sheath is adopted to run safely under a circumstance of space electric field (E)≤25KV/m



Application

1. Long distance communication and local area network, especially suitable for long span environment,complex area.

2. Erect on the same pole with power line in new and old power line.



CategoryDescriptionSpecifications
G.652D
Optical SpecificationsAttenuation@1310nm≤0.36dB/km
@1550nm≤0.22dB/km
Attenuation discontinuity≤0.05 dB
Attenuation vs. Wavelength@1285~1330nm≤0.05 dB/km
@1525~1575nm≤0.05 dB/km
Zero Dispersion Wavelength1300~1324nm
Zero Dispersion Slope≤0.092ps/(nm2.km)
Dispersion@1310nm≤3.5 ps/nm.km
@1550nm≤18 ps/nm.km
Polarization Mode Dispersion(PMD)≤0.2ps/km1/2
Cable Cutoff Wavelength(λcc)≤1260nm
Effective Group Index of Refraction@1310nm1.4675
@1550nm1.4681
Macro bend loss (30mm radius,100turns) 1625nm≤0.1 dB

Geometric
Specifications

Mode Field Diameter@1310nm9.2±0.6μm
@1550nm10.4±0.8μm
Cladding Diameter125±1μm
Cladding Non-Circularity≤1.0%
Coating Diameter245±7μm
Coating/Cladding Concentricity Error≤8μm
Core/Cladding Concentricity Error≤0.8μm

Mechanical
Specifications

Proof Test level≥1.0%
Fiber Curl Radius≥4.0m
Peak Coating Strip Force1.3~8.9N





 Fiber
Count


Outer
Dia. (mm)


Tensile Resistance(N)


Crush Resistance (N/100m)


Mini Bending Radius (mm)


Attenuation (dB/km)


Operation
Temperature (℃)


N.W.
(kg/km)

86-9612.2100030001000300010D20D≤ 3.0≤ 1.5-40℃~+60℃

148

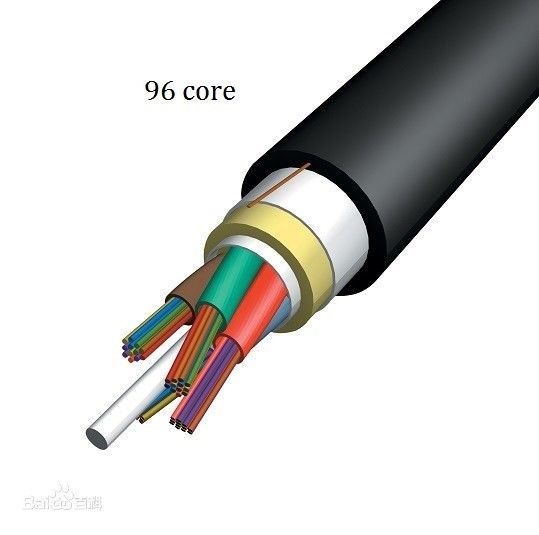

FRP G652D 96core ADSS Fiber Optic Cable For Outdoor Aerial 0

FRP G652D 96core ADSS Fiber Optic Cable For Outdoor Aerial 1
