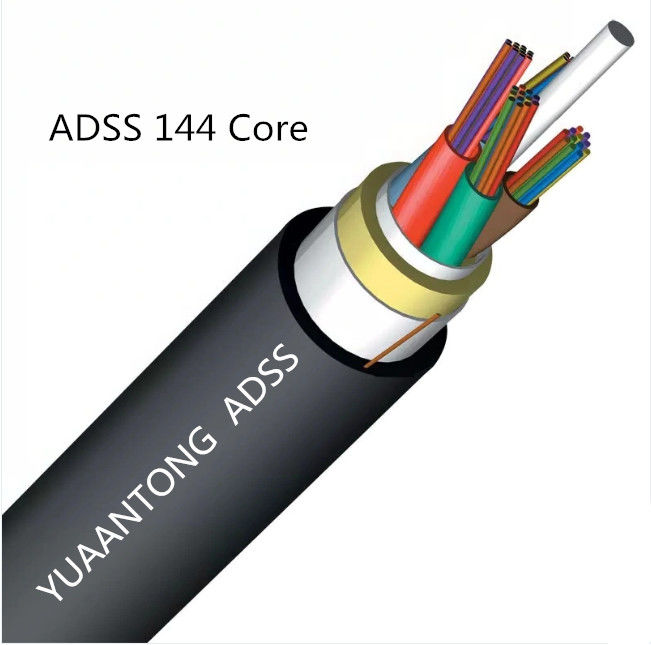

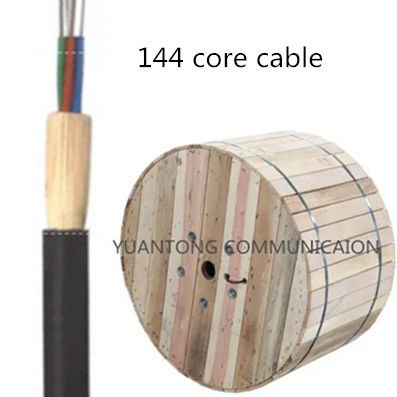

144 Core Single Sheath Self Supported Optical Fiber Cable
Quick detail

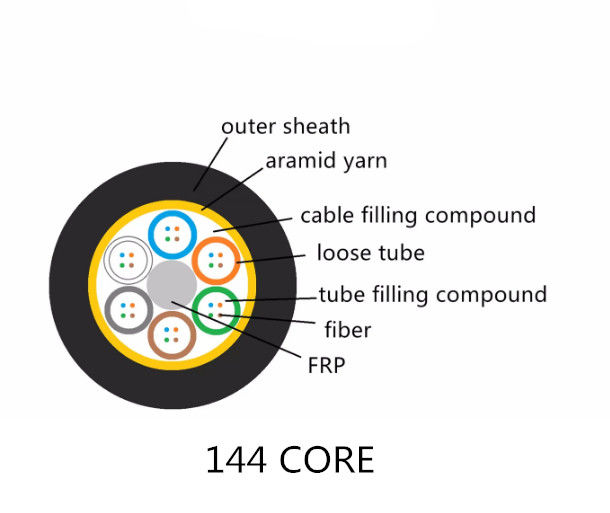

ADSS cable has loose tube stranded. 250μm Fibers are positioned into a loose tube made of high modulus plastics.
These loose tubes are filled in the water-resistant oil jelly. The tubes (and fillers) are stranded around the Fiber Reinforced Plastic as the non-metallic central strength member . After the cable core is filled with filling compound. After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.
The actual status of overhead power lines is taken into full consideration when ADSS cable is being designed. For overhead power lines under 110kV, PE outer sheath is applied. FOR power lines equal to or over 110kV, AT outer sheath is applied. The dedicate design of aramid quantity and stranding process can satisfy the demand on various spans.
Characteristics
1. Small cable diameter, light weight, 100m span, low attached load on tower
2. Tensile strength is over 90KN
3. The following measures are taken to ensure the cable watertight:
4. Single Fiber Reinforced Plastic as the central strength member
5. Loose tube filling compound
6. 100% cable core filling
Application
1. Long distance communication and local area network, especially suitable for long span environment,complex area.
2. Erect on the same pole with power line in new and old power line.
Fiber Parameters
No. |
Items |
Unit |
Specification | |
G.652D | ||||
1 |
Mode Field Diameter |
1310nm | μm | 9.2±0.4 |
1550nm | μm | 10.4±0.5 |
2 | Cladding Diameter | μm | 124.8±0.7 | |
3 | Cladding Non-Circularity | % | ≤0.7 | |
4 | Core-Cladding Concentricity Error | μm | ≤0.5 | |
5 | Coating Diameter | μm | 245±5 | |
6 | Coating Non-Circularity | % | ≤6.0 | |
7 |
Cladding-Coating Concentricity Error |
μm |
≤12.0 |
|
8 | Cable Cutoff Wavelength | nm | λcc≤1260 | |
9 |
Attenuation(max.) |
1310nm | dB/km | ≤0.36 |
1550nm | dB/km | ≤0.22 |
