All Dielectric Adss Wire , 24core Aerial Self Supporting Aerial Cable
| Place of Origin | China |
|---|---|
| Brand Name | YUANTONG |
| Certification | ROSH ,TLC, CCC, ISO |
| Model Number | ADSS-24 |
| Minimum Order Quantity | 20KM |
| Price | Negotiable |
| Packaging Details | Wooden Drum Plus Carton |
| Delivery Time | 7 days |
| Payment Terms | L/C, D/P, T/T, Western Union |
| Supply Ability | 500km per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | 24core ADSS Fiber Optic Cable | Fiber Count | 12core |
|---|---|---|---|
| Fiber Type | G652D | Loose Tube | PBT |
| Cable Sheath | HDPE | Cable Color | Black |
| CSM | FRP | Strength Member | Armid Yarn |
| Cable Use | Aerial | ||
| High Light | adss wire,Aerial adss wire,24core self supporting aerial cable |
||
Product Description

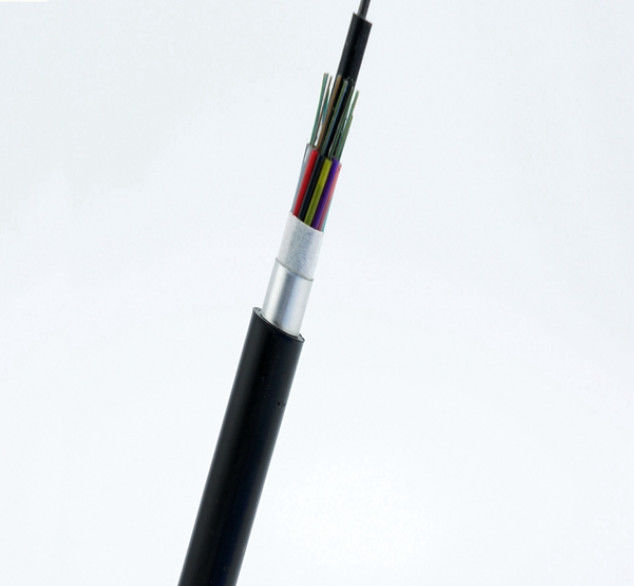

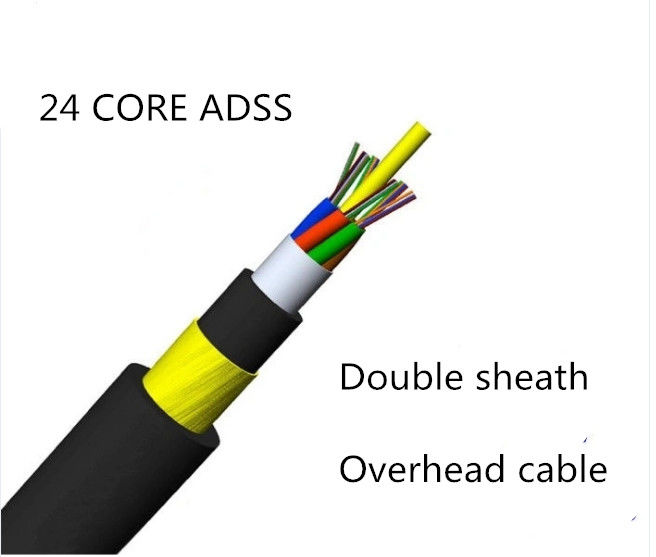

24core All Dielectric Self Supporting Single Mode Optical Fiber Cable for Aerial
PRODUCT DESCRIPTION

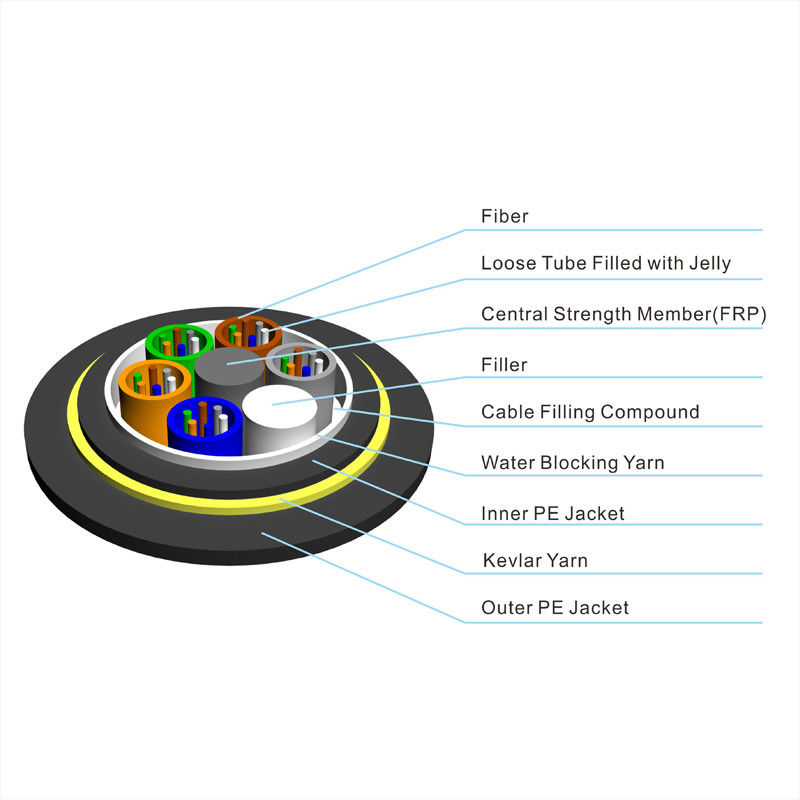

24core Arimid Yarn Member ADSS Fiber Optic Cable For Aerial
Quick detail
Actual situation of overhead power line is takes full consideration when ADSS cable is being designed, Suitable for different grade overhead power line. Polyethylene (PE) can be used for power lines with space potential not greater than 12KV. For overhead power lines above 110 KV (or space potential greater than 12 KV), the cable hanging point must be determined by calculating the distribution of electric field intensity, and electrical resistance (AT) jacket is applied. The dedicate design of aramid quality and stranding process can satisfy the demand on various spans.
Characteristics
1. Small cable diameter, light weight, 150m span, low attached load on tower
2. Tensile strength is over 90KN
3. Non-metal structure, good insulation, anti-thunder
4. Fine production technology, even force for aramid fiber, with superior stress flexibility
5. Adapt for bad climate
6. May construct without power cut, a power line failure doesn’t influence cable’s normal transfer
7. Tensile units are elastic modulus aramid fiber
8. Electric trace resistant outer sheath is adopted to run safely under a circumstance of space electric field (E)≤25KV/m
Application
Suitable for non-self-supporting aerial of power line.
| Category | Description | Specifications | |
| G.652D | |||
| Optical Specifications | Attenuation | @1310nm | ≤0.36dB/km |
| @1550nm | ≤0.22dB/km | ||
| Attenuation discontinuity | ≤0.05 dB | ||
| Attenuation vs. Wavelength | @1285~1330nm | ≤0.05 dB/km | |
| @1525~1575nm | ≤0.05 dB/km | ||
| Zero Dispersion Wavelength | 1300~1324nm | ||
| Zero Dispersion Slope | ≤0.092ps/(nm2.km) | ||
| Dispersion | @1310nm | ≤3.5 ps/nm.km | |
| @1550nm | ≤18 ps/nm.km | ||
| Polarization Mode Dispersion(PMD) | ≤0.2ps/km1/2 | ||
| Cable Cutoff Wavelength(λcc) | ≤1260nm | ||
| Effective Group Index of Refraction | @1310nm | 1.4675 | |
| @1550nm | 1.4681 | ||
| Macro bend loss (30mm radius,100turns) 1625nm | ≤0.1 dB | ||
| Geometric Specifications | Mode Field Diameter | @1310nm | 9.2±0.6μm |
| @1550nm | 10.4±0.8μm | ||
| Cladding Diameter | 125±1μm | ||
| Cladding Non-Circularity | ≤1.0% | ||
| Coating Diameter | 245±7μm | ||
| Coating/Cladding Concentricity Error | ≤8μm | ||
| Core/Cladding Concentricity Error | ≤0.8μm | ||
| Mechanical Specifications | Proof Test level | ≥1.0% | |
| Fiber Curl Radius | ≥4.0m | ||
| Peak Coating Strip Force | 1.3~8.9N | ||
| Fiber Count | Outer Dia. (mm) | Tensile Resistance(N) | Crush Resistance (N/100m) | Mini Bending Radius (mm) | Attenuation (dB/km) | Operation Temperature (℃) | N.W. (kg/km) | ||||
| 长期 Long Term | 短期 Short Term | 长期 Long Term | 短期 Short Term | 动态 Dynamic | 静态 Static | 850nm | 1300nm | ||||
| 2-30 | 9.5 | 1000 | 3000 | 1000 | 3000 | 10D | 20D | ≤ 3.0 | ≤ 1.5 | -40℃~+60℃ | 86 |
