GJXH Indoor FTTH Drop Cable 1core Mechanical ISO Approval

GJXH Indoor FTTH Drop Cable 1core Mechanical ISO Approval

mechanical FTTH Drop Cable

1core FTTH Drop Cable

GJXH fiber optic cable 1 core

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Product Nam:
1 Core Optical Fiber Indoor Use FTTH Drop Cable
Fiber Count:
Fiber Type:
Cable Sheath:
Black LSZH
Cable Color:
Strength Member:
Steel Rod
Cable Use:
Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
Wooden Drum Plus Carton
Delivery Time
7 days
Payment Terms
L/C, D/P, T/T, Western Union
Supply Ability
500km per week
Product Description

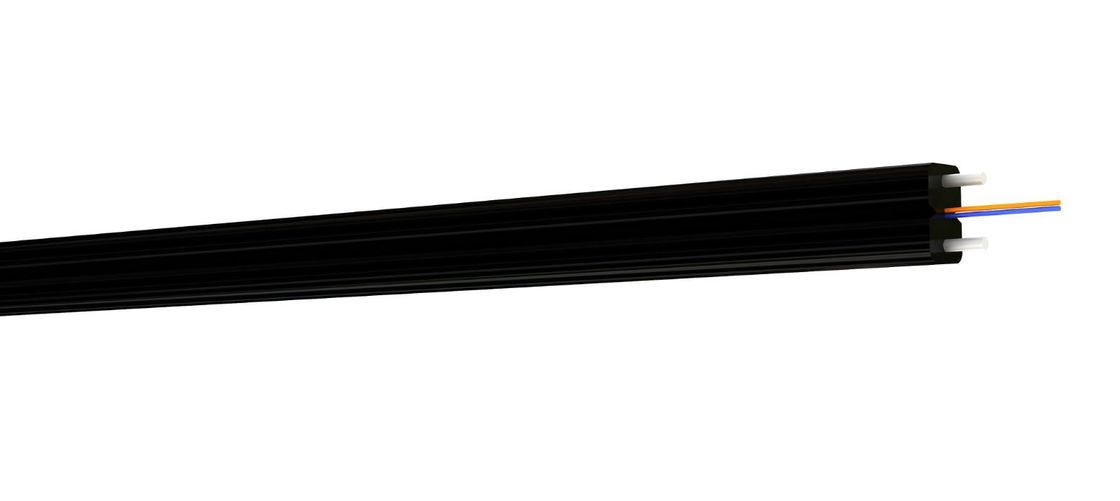

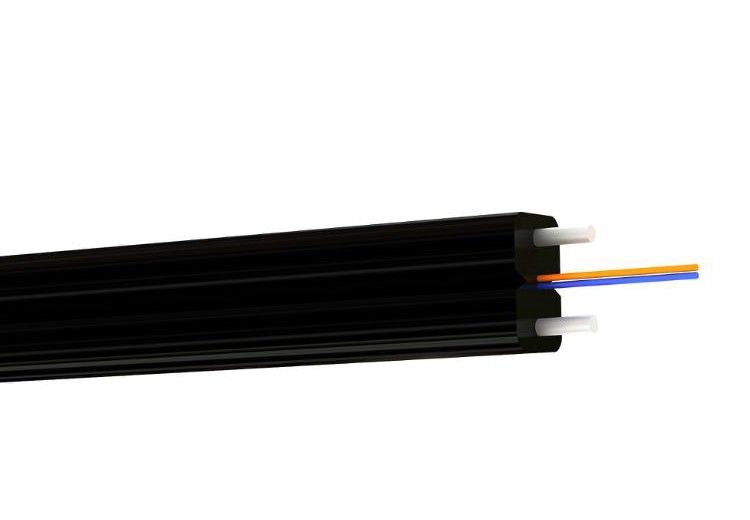

1core Indoor Steel Rod Fiber Optic Drop Cable FTTH G657a2 GJXH


1. Cable Description

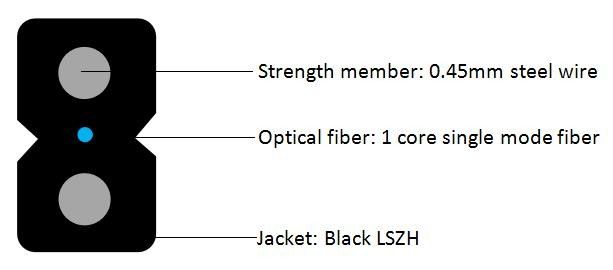

FTTH Cable directly connected to their homes, their bandwidth, wavelength and transmission technology type are not restricted. The optical fiber unit is positioned in the centre. Two parallel strength member are placed at the two sides. the cable is completed with a black LSZH sheath.



2. Application

1. Adopted to Indoor level and vertical distribution.

2. Suitable for connect with communication equipment.

3. Long distance and local area network communication.


3. Characteristics

1. Good mechanical and enviromental characteristic

2. Anti-UV charateristics meet the requirements of relevant standards

3. The mechanical charateristics meet the requirements of relevant standards

4. Soft ,flexiable ,easy to lay and splice,and with big capacity data transmission

5. Meet various requirements of market and clients

6. Adopt fiber with small bending radius (G.657), offering good bending resistance;

7. Adopt all-dry structure and fiber with small bending radius, offering good bending resistance;

8. Easy cable stripping without need of tools, easy cable fixation and low cost of installation;


Technical Parameter


 Fiber Count



Dia. (mm)


Tensile Resistance(N)


Crush Resistance (N/100m)


Mini Bending Radius (mm)


Attenuation (dB/km)



Temperature (℃)





Long Term


Short Term


Long Term


Short Term





1310nm 1550nm



2.0×3.0±0.1 60 120 1000 2200 40 20 ≤ 0.4 ≤ 0.3 -30℃~+60℃ 10
















1. Are you the real manufacturer?

Yes. We are the real manufacturer with 18 years' history.


2. What is your fiber brand ?

Corning, SEI, YOFC, FiberHome, etc


3. Can you accept small order?

Yes, small order is available .We support new project of our customers as we know business is always from small order.

4.What is your warranty period?

25 years for fiber optic cable


5. Which kind of certification you have ?

ISO9001, SGS, 3E, Anatel.


6. What is your delivery time?

Usually within 2-3 working days


7. What about your annual production capacity?

Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;

FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;

Patch Cord/Pigtails, it is 12,400,000 Pieces per year.


8. What is your payment way?

T/T, L/C, Western Union and Paypal.


9. Can you supply customized products and logo?

-Yes. We supply OEM&ODM service. You can send us your drawing.


10. Can you supply your cable test value form?

-Yes. After finishing production , we can supply if you ask.


11. Do your factory inspect every roll of cables?

-Yes. we factory do 100% inspection per order.
