Anti UV FPR G657a2 GJXFH Indoor FTTH Drop Cable 1 Core Indoor Network Use

Anti UV FPR G657a2 GJXFH Indoor FTTH Drop Cable 1 Core Indoor Network Use

Anti UV FTTH Drop Cable

Network FTTH Drop Cable

FPR ftth drop fiber optic cable

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Product Name:
1Core Optical Fiber Indoor Use FTTH Drop Cable
Fiber Count:
Fiber Type:
Cable Sheath:
Black LSZH
Cable Color:
Strength Member:
Cable Use:
Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
Wooden Drum Plus Carton
Delivery Time
7 days
Payment Terms
L/C, D/P, T/T, Western Union
Supply Ability
500km per week
Product Description

1 core Indoor FPR Fiber Optic Drop Cable Fiber To The Home G657a2 GJXFH


1. Description

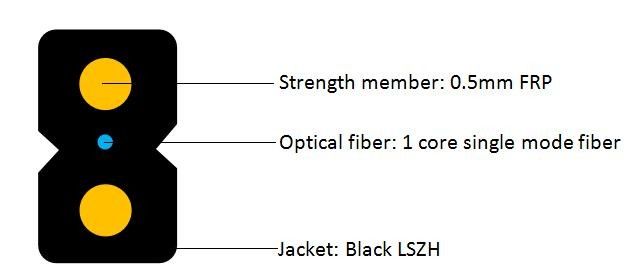

GJXFH FTTH indoor cable, the optical fiber unit is positioned in the center. Two parallel Fiber Reinforced s FRP are placed at the two sides. Then the cable is completed with LSZH sheath.
2. Application
1. Access network
2. FTTH cable (Fiber to the home)
3. Used in indoor cabling
4. Used for parch cord or pigtail
3. Characteristics
1. Good mechanical and enviromental characteristic
2. Anti-UV charateristics meet the requirements of relevant standards
3. The mechanical charateristics meet the requirements of relevant standards
4. Soft ,flexiable ,easy to lay and splice,and with big capacity data transmission
5. Meet various requirements of market and clients
6. Adopt fiber with small bending radius (G.657), offering good bending resistance;
7. Adopt all-dry structure and fiber with small bending radius, offering good bending resistance;
8. Easy cable stripping without need of tools, easy cable fixation and low cost of installation;

 Fiber Count

Dia. (mm)

Tensile Resistance(N)

Crush Resistance (N/100m)

Mini Bending Radius (mm)

Attenuation (dB/km)

Temperature (℃)




2.0×3.0±0.1 40 80 500 1000 40 20 ≤ 0.4 ≤ 0.3 -30℃~+60℃ 8.5


Item Description
Fiber count 01/02 Fiber 04 fiber
Fiber type G657A1/A2
Messenger 1.0/1.1/1.2mm steel/FRP
Strength member 2*0.45mm FRP/Steel
Dimension of cable 2.0(±0.1)mm/5.0(±0.2)mm 2.2(±0.1)mm/5.5(±0.2)mm
Cable weight 22kg+1kg


1. Are you the real manufacturer?
Yes. We are the real manufacturer with 18 years' history.
2. What is your fiber brand ?
Corning, SEI, YOFC, FiberHome, etc
3. Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.
4.What is your warranty period?
25 years for fiber optic cable
5. Which kind of certification you have ?
ISO9001, SGS, 3E, Anatel.
6. What is your delivery time?
Usually within 2-3 working days
7. What about your annual production capacity?
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.
8. What is your payment way?
T/T, L/C, Western Union and Paypal.
9. Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.
10. Can you supply your cable test value form?
-Yes. After finishing production , we can supply if you ask.
11. Do your factory inspect every roll of cables?
-Yes. we factory do 100% inspection per order.
