Place of Origin:
China
Brand Name:
YUANTONG
Certification:
ROSH ,TLC, CCC, ISO
Model Number:
GJXFH-2B
Contact Us

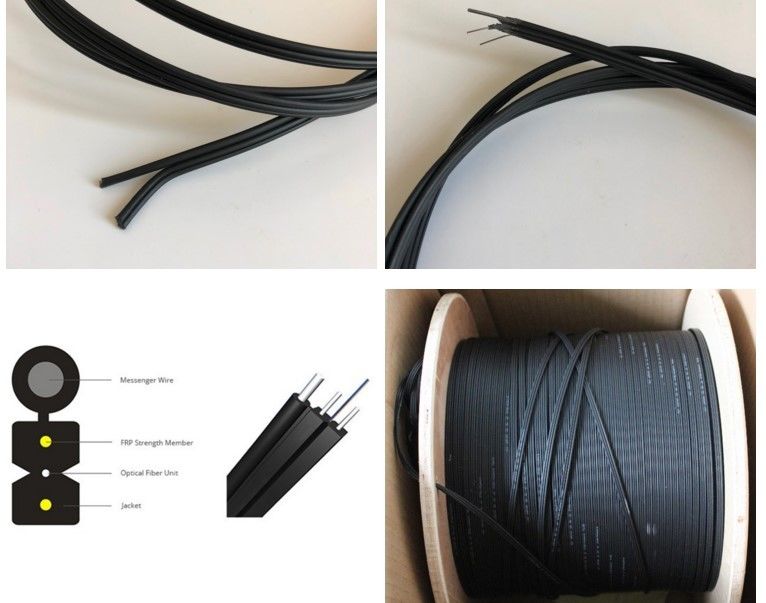

2 core Indoor Use FPR Fiber Optic Drop Cable FTTH G657a2 GJXFH
1. Description

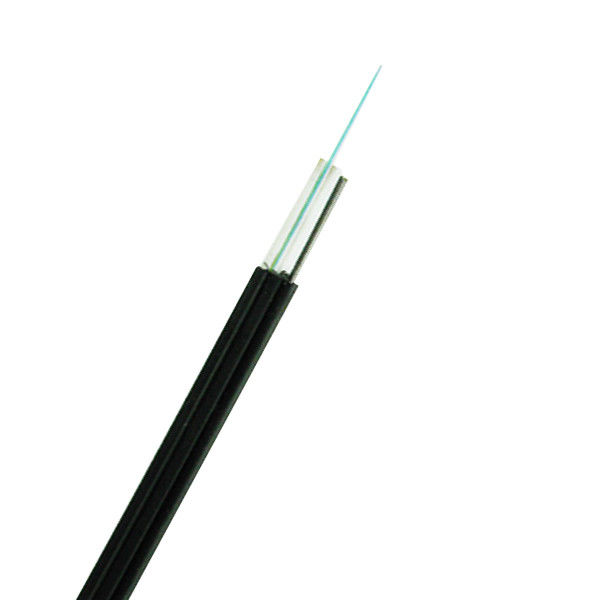

GJXFH FTTH indoor cable, the optical fiber unit is positioned in the center. Two parallel Fiber Reinforced s FRP are placed at the two sides. Then the cable is completed with LSZH sheath.
2. Application
1. Access network
2. FTTH cable (Fiber to the home)
3. Used in indoor cabling
4. Used for parch cord or pigtail
3. Characteristics
This specification covers the general requirements and performance of cable for
FTTH, which offered including optical characteristics, mechanical characteristics
and geometrical characteristics and etc
1. Simple structure ,light weight and high practicability;
2. Novel flute design easily strip and splice, simplify the installation and maintenance;
3. Two parallel FRP strength members ensure good performance of crush and tension resistance to protect the fiber;
4. If G.657 fiber be put in the cable, ensure the very good bending performance. (Bend radius 10mm/G.657A)
5. Low smoke, zero halogen and flame retardant sheath;
| Fiber Count | Outer Dia. (mm) |
Tensile Resistance(N) |
Crush Resistance (N/100m) |
Mini Bending Radius (mm) |
Attenuation (dB/km) |
Operation Temperature (℃) |
N.W. (kg/km) |
| GJXFH-1 GJXFH-2 |
2.0×3.0±0.1 | 40 | 80 | 500 | 1000 | 40 | 20 | ≤ 0.4 | ≤ 0.3 | -30℃~+60℃ | 8.5 |
| Item | Description | |
| Fiber count | 01/02 Fiber | 04 fiber |
| Fiber type | G657A1/A2 | |
| Messenger | 1.0/1.1/1.2mm steel/FRP | |
| Strength member | 2*0.45mm FRP/Steel | |
| Dimension of cable | 2.0(±0.1)mm/5.0(±0.2)mm | 2.2(±0.1)mm/5.5(±0.2)mm |
| Cable weight | 22kg+1kg | |
| Item | |
| Installation temperature | -20/+60°C |
| Operation and transport temperature | -40/+70°C |
| Min Bending Radius(mm) | Long term: 15D |
| Short term: 30D | |
| Allowable Tensile Strength(N) | Long term: 300 |
| Short term: 600 | |
| Crush Lord(N/100mm) | Long term: 1000 |
| Short term: 2200 |
| Item | Unit | Description |
| Fiber model | -- | SM- G657a2 |
| Condition | nm | 1310 /1550 |
| Attenuation | Db/km | ≤3.5/ 0.21 |
| Dispersion | 1310nm | ≤ 18 |
| 1550nm | ≤ 22 | |
| Zero dispersion wavelength | nm | 1300 -1324 |
| Zero dispersion slope | Ps/(nm²xkm) | ≤ 0.092 |
| PMD Maximum individual fiber | [ps/√km] | ≤ 0.2 |
| PMD Design link value | ps/(nm²xkm) | ≤ 0.08 |
| Fiber cutoff wavelength λC | nm | 1180 ≤1330 |
| Cable cutoff wavelength λcc | nm | ≤ 1260 |
| MFD | 1310nm(μm) | 8.6 ±0.4 |
| 1550nm(μm) | 9.8 ±0.5 | |
| Step(mean of bidirectional measurement) | dB | ≤ 0.05 |
| Irregularities over fiber length and point discontinuity | dB | ≤ 0.05 |
| Difference backscatter coefficient | dB/km | ≤ 0.03 |
| Attenuation uniformity | dB/km | ≤ 0.01 |
| Cladding diameter | μm | 125.0 ±0.1 |
| Cladding non-circularity | % | ≤ 0.7 |
| Coating diameter | μm | 242 ±7 |
FAQ
1. Are you the real manufacturer?
Yes. We are the real manufacturer with 18 years' history.
2. What is your fiber brand ?
Corning, SEI, YOFC, FiberHome, etc
3. Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.
4.What is your warranty period?
25 years for fiber optic cable
5. Which kind of certification you have ?
ISO9001, SGS, 3E, Anatel.
6. What is your delivery time?
Usually within 2-3 working days
7. What about your annual production capacity?
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.
8. What is your payment way?
T/T, L/C, Western Union and Paypal.
9. Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.
10. Can you supply your cable test value form?
-Yes. After finishing production , we can supply if you ask.
11. Do your factory inspect every roll of cables?
-Yes. we factory do 100% inspection per order.
