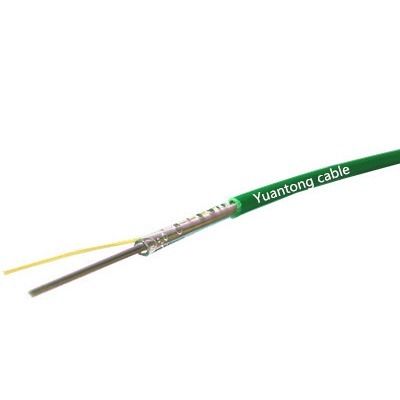

24c Stranded Air Blown Micro Cable G657a1 Fiber No Gel Black color

  • 24c Stranded Air Blown Micro Cable G657a1 Fiber No Gel Black color
  • 24c Stranded Air Blown Micro Cable G657a1 Fiber No Gel Black color
Place of Origin CHINA
Brand Name YUANTONG
Certification ROSH,ISO,CCC,UL,TLC
Model Number GCYFXTY
Minimum Order Quantity 50km
Price usd0.2/m
Packaging Details wooden drum
Delivery Time 7days
Payment Terms L/C, T/T, Western Union
Supply Ability 500KM per week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 24c Outdoo Air Blown Micro Cable Fiber Count 24 Core
Fiber Type G652D Loose Tube PBT
Cable Sheath HDPE Cable Color Black
Cable Use Duct Cable Type Uni Tube
High Light

24c Air Blown Micro Cable

,

g657a1 Air Blown Micro Cable
Leave a Message
Product Description

24c Outdoor Micro Diameter Air Blown Micro Cable







INTRODUCTION
Stranded Air Blown Micro Cables are ultra lightweight with and small diameter and designed for metro feeder or access network to be blown into a micro duct by air-blown installation. As the cable allows the deployment of currently required fiber count, the micro cable provides a lower initial investment and the flexibility to install and upgrade to the latest fiber technologies after the initial installation.

24c Stranded Air Blown Micro Cable G657a1 Fiber No Gel Black color 0


KEY FEATURES

  • Perfect cable structure with high fiber density
  • Accurate fiber length balance to ensure stable performance
  • No gel in cable core for water blocking
  • Sheath structure innovation to enhance blowing performance
  • Greater blowing distance
  • Fiber: G.G652D, G.657A1, G.657A2



  • Small size and light weight
  • Tube filling compound providing key protection for Fibers
  • Unique design of sheath with grooves ensuring good air blowing performance
  • Allowing to blow by phases to reduce initial investment
  • High blowing speed up to 50m/min, and long blowing distance up to 1000m
  • Allowing to blow out and replace with new cables to keep technical superiority
  • Allowing to cut micro ducts anywhere anytime for branch without influences on other cables, saving manholes, hand holes and cable joints




SPECIFICATION

P/N Fiber count
(F)		 Nominal diameter
(mm)		 Nominal weight
(kg/km)		 Max tensile strength
(N)		 Temperature
(ºC)
MICROL-12G652D-PE 12 5.2±0.1 25 500 -40 to +70
MICROL-24G652D-PE 24 5.2±0.1 25 500
MICROL-36G652D-PE 36 5.2±0.1 25 500
MICROL-48G652D-PE 48 5.2±0.1 25 500
MICROL-60G652D-PE 60 5.2±0.1 25 500
MICROL-72G652D-PE 72 5.2±0.1 25 500
MICROL-96G652D-PE 96 6.1±0.1 35 1000
MICROL-144G652D-PE 144 7.9±0.1 57 1200
MICROL-192G652D-PE 192 7.9±0.1 55 500 -20 to +70
MICROL-216G652D-PE 216 7.9±0.1 55 500
MICROL-288G652D-PE 288 9.4±0.1 78 1000



BLOWING PERFORMANCE

Fiber count
(F)		 Blowing machine Suitable microduct
(mm)		 Blowing distance
in 10/8 duct (m)		 Blowing distance
in 12/10 duct (m)		 Blowing distance
in 14/12 duct (m)
12 to 72 PLUMETTAZ PR-140
MiniJet-400
15bar		 10/8 or 12/10 1800 2300 /
96 10/8 or 12/10 1800 2300 /
144 12/10 / 1200 /
192 to 216 12/10 / 1500 /
288 14/12 / / 1500



MICROL: cable type | 2: fiber count | G652D: G652D, G657A1, G657A2 & multimode fiber available | PE: sheath material

24c Stranded Air Blown Micro Cable G657a1 Fiber No Gel Black color 1

24c Stranded Air Blown Micro Cable G657a1 Fiber No Gel Black color 2

24c Stranded Air Blown Micro Cable G657a1 Fiber No Gel Black color 324c Stranded Air Blown Micro Cable G657a1 Fiber No Gel Black color 4

24c Stranded Air Blown Micro Cable G657a1 Fiber No Gel Black color 5



FAQ

1. Are you the real manufacturer?

Yes. We are the real manufacturer with 18 years' history.



2. What is your fiber brand ?

Corning, SEI, YOFC, FiberHome, etc



3. Can you accept small order?

Yes, small order is available .We support new project of our customers as we know business is always from small order.

4.What is your warranty period?

25 years for fiber optic cable



5. Which kind of certification you have ?

ISO9001, SGS, 3C Anatel.



6. What is your delivery time?

Usually within 2-3 working days



7. What about your annual production capacity?

Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;

FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;

Patch Cord/Pigtails, it is 12,400,000 Pieces per year.



8. What is your payment way?

T/T, L/C, Western Union and Paypal.



9. Can you supply customized products and logo?

-Yes. We supply OEM&ODM service. You can send us your drawing.



10. Can you supply your cable test value form?

-Yes. After finishing production , we can supply if you ask.



11. Do your factory inspect every roll of cables?

-Yes. we factory do 100% inspection per order.
