HDPE Air Blown Micro Cable , Outdoor 144 Core Fiber Optic Cable
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Product Name||144c Outdoor Air Blown Micro Cable||Fiber Count||144 Core|
|Fiber Type||G652D||Loose Tube||PBT|
|Cable Sheath||HDPE||Cable Color||Black|
|Cable Use||Duct||Cable Type||Stranding Tube|
144 core Air Blown Micro Cable,
HDPE 144 core fiber optic cable

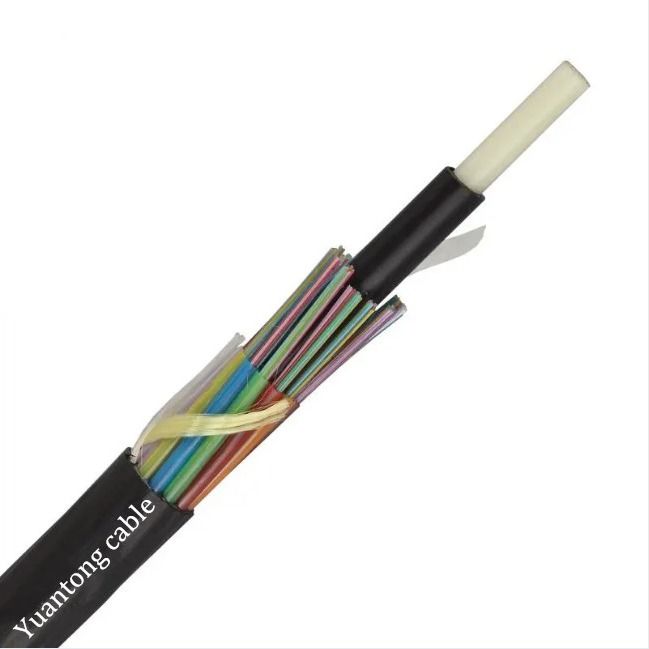

144c Outdoor Micro Diameter Air Blown Micro Cable
Stranded Air Blown Micro Cables are ultra lightweight with and small diameter and designed for metro feeder or access network to be blown into a micro duct by air-blown installation. As the cable allows the deployment of currently required fiber count, the micro cable provides a lower initial investment and the flexibility to install and upgrade to the latest fiber technologies after the initial installation.
- Perfect cable structure with high fiber density
- Accurate fiber length balance to ensure stable performance
- No gel in cable core for water blocking
- Sheath structure innovation to enhance blowing performance
- Greater blowing distance
- Fiber: G.G652D, G.657A1, G.657A2
- Small size and light weight
- Tube filling compound providing key protection for Fibers
- Unique design of sheath with grooves ensuring good air blowing performance
- Allowing to blow by phases to reduce initial investment
- High blowing speed up to 50m/min, and long blowing distance up to 1000m
- Allowing to blow out and replace with new cables to keep technical superiority
- Allowing to cut micro ducts anywhere anytime for branch without influences on other cables, saving manholes, hand holes and cable joints
|Max tensile strength
|MICROL-12G652D-PE||12||5.2±0.1||25||500||-40 to +70|
|MICROL-192G652D-PE||192||7.9±0.1||55||500||-20 to +70|
|Blowing machine||Suitable microduct
in 10/8 duct (m)
in 12/10 duct (m)
in 14/12 duct (m)
|12 to 72||PLUMETTAZ PR-140
|10/8 or 12/10||1800||2300||/|
|96||10/8 or 12/10||1800||2300||/|
|192 to 216||12/10||/||1500||/|
MICROL: cable type | 2: fiber count | G652D: G652D, G657A1, G657A2 & multimode fiber available | PE: sheath material
1. Are you the real manufacturer?
Yes. We are the real manufacturer with 18 years' history.
2. What is your fiber brand ?
Corning, SEI, YOFC, FiberHome, etc
3. Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.
4.What is your warranty period?
25 years for fiber optic cable
5. Which kind of certification you have ?
ISO9001, SGS, 3C Anatel.
6. What is your delivery time?
Usually within 2-3 working days
7. What about your annual production capacity?
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.
8. What is your payment way?
T/T, L/C, Western Union and Paypal.
9. Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.
10. Can you supply your cable test value form?
-Yes. After finishing production , we can supply if you ask.
11. Do your factory inspect every roll of cables?
-Yes. we factory do 100% inspection per order.
