GYTZA 12 Core Armoured Fiber Optic Cable , TLC Outside Armoured Cable
| Place of Origin | China |
|---|---|
| Brand Name | YUANTONG |
| Certification | ROSH ,TLC, CCC, ISO |
| Model Number | GYTZA 12 Core |
| Minimum Order Quantity | 20KM |
| Price | Negotiable |
| Packaging Details | Wooden Drum |
| Delivery Time | 7 days |
| Payment Terms | L/C, D/P, T/T, Western Union |
| Supply Ability | 500km per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | 12 Core Layer Filling Loose Tube Aluminium PE Sheath Flame-Retardant Outdoor Fiber Optic Cable GYTZA | Fiber Count | 12 Core |
|---|---|---|---|
| Fiber Type | G652D | Cable Sheath | Aluminium PE Sheath |
| Cable Color | Black | Strength Member | Metallic Strength Member |
| Cable Use | Outdoor | Loose Tube | PBT |
| High Light | GYTZA armoured fiber optic cable,TLC outside armoured cable |
||
Product Description

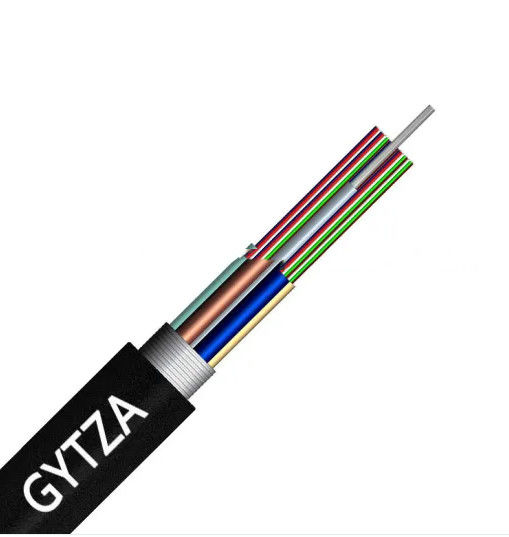

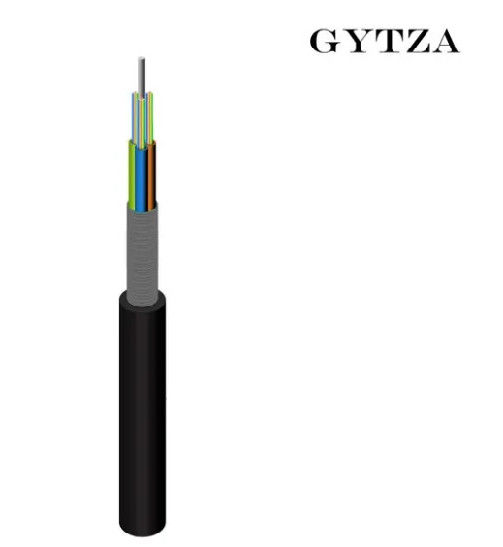

12 Core Layer Filling Loose Tube Aluminium PE Sheath Flame-Retardant Outdoor Fiber Optic Cable GYTZA
DESCRIPTION:

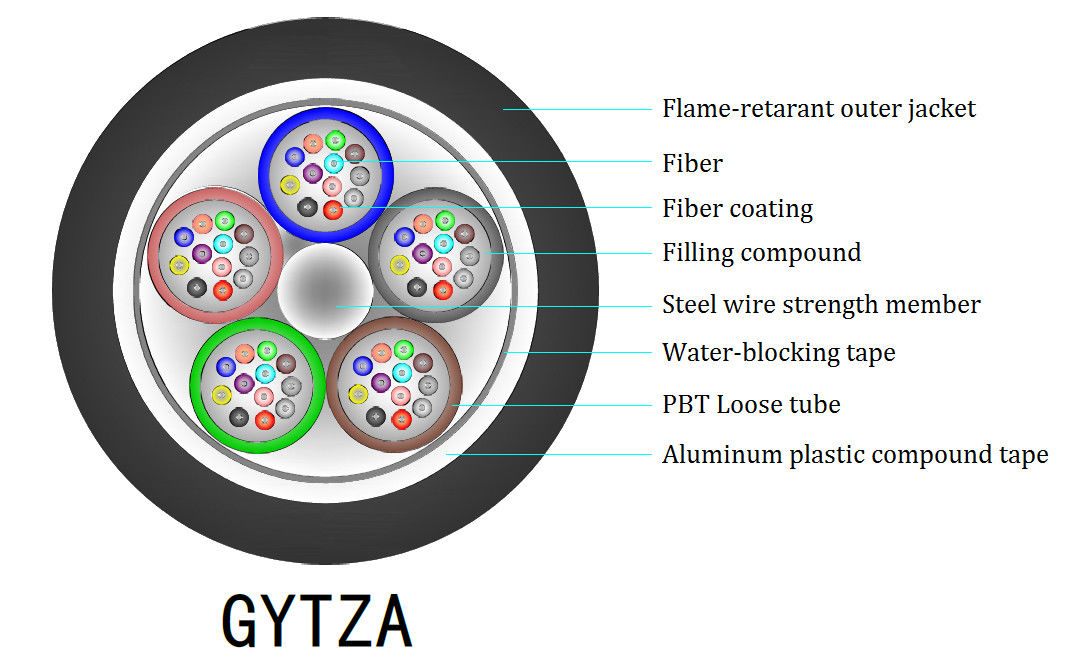

The product is to insert optical fiber into a loose tube made of high modulus material, filled with water-blocking compounds. A layer of polyethylene should be extruded outside the metal reinforced core. The loose tube and filling rope around the center strengthen the core winch to form a compact and round cable core. The gap in the cable core is filled with water blocking fillings. Extrusion of flame-retardant protective cover into cable after coated aluminum strip.
FEATURES:
Low loss and dispersion of optical fiber transmission;
The loose tube is filled with special oil ointment, which provides the key protection to the optical fiber;
Specially designed compact fiber optic cable structure effectively prevents casing retraction;
APPLICATIONS:
Into the Bureau, Tunnel, Aerial
| Model | Description | Applications |
| GYTZA | GYTZA outer fiber optic cable, Metallic strength member,layer filling loose tube, Aluminium PE sheath,Flame-retardant | Overhead&Pipeline laying |
| Tensile Strength (N) | Crush Resistance (N/100mm) | Bned Radius (mm) |
Working Temperature(℃) | Max. attenuation (dB/km) | |||||
| Long term | short term | Long term | short term | Static(D) | Dynamic (D) | Min.TA | Max.TB | 1310μm | 1550μm |
| 600 | 1500 | 300 | 1000 | 10 D | 20 D | -40℃ | +60℃ | ≤0.36 | ≤0.22 |
| Category | Description | Specifications | |
| G.652D | |||
| Optical Specifications | Attenuation | @1310nm | ≤0.36dB/km |
| @1550nm | ≤0.22dB/km | ||
| Attenuation discontinuity | ≤0.05 dB | ||
| Attenuation vs. Wavelength | @1285~1330nm | ≤0.05 dB/km | |
| @1525~1575nm | ≤0.05 dB/km | ||
| Zero Dispersion Wavelength | 1300~1324nm | ||
| Zero Dispersion Slope | ≤0.092ps/(nm2.km) | ||
| Dispersion | @1310nm | ≤3.5 ps/nm.km | |
| @1550nm | ≤18 ps/nm.km | ||
| Polarization Mode Dispersion(PMD) | ≤0.2ps/km1/2 | ||
| Cable Cutoff Wavelength(λcc) | ≤1260nm | ||
| Effective Group Index of Refraction | @1310nm | 1.4675 | |
| @1550nm | 1.4681 | ||
| Macro bend loss (30mm radius,100turns) 1625nm | ≤0.1 dB | ||
| Geometric Specifications |
Mode Field Diameter | @1310nm | 9.2±0.6μm |
| @1550nm | 10.4±0.8μm | ||
| Cladding Diameter | 125±1μm | ||
| Cladding Non-Circularity | ≤1.0% | ||
| Coating Diameter | 245±7μm | ||
| Coating/Cladding Concentricity Error | ≤8μm | ||
| Core/Cladding Concentricity Error | ≤0.8μm | ||
| Mechanical Specifications |
Proof Test level | ≥1.0% | |
| Fiber Curl Radius | ≥4.0m | ||
| Peak Coating Strip Force | 1.3~8.9N | ||
FAQ
1. Are you the real manufacturer?
Yes. We are the real manufacturer with 18 years' history.
2. What is your fiber brand ?
Corning, SEI, YOFC, FiberHome, etc
3. Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.
4.What is your warranty period?
25 years for fiber optic cable
5. Which kind of certification you have ?
ISO9001, SGS, 3C Anatel.
6. What is your delivery time?
Usually within 2-3 working days
7. What about your annual production capacity?
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.
8. What is your payment way?
T/T, L/C, Western Union and Paypal.
9. Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.
10. Can you supply your cable test value form?
-Yes. After finishing production , we can supply if you ask.
11. Do your factory inspect every roll of cables?
-Yes. we factory do 100% inspection per order.
