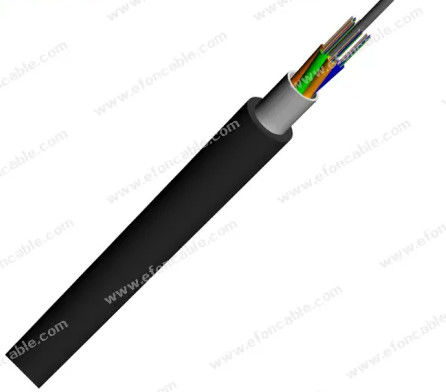

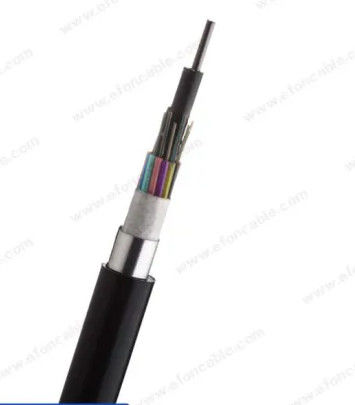

Single Steel Wire 1310nm 1550nm Outdoor Armored Fiber Optic Cable GYTZA33
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Product Name||12 Core Single Steel Wire PE Outer Sheath Flame-Retardant Layer Filling Loose Tube Outdoor Fiber Optic Cable GYTZA33||Fiber Count||12 Core|
|Fiber Type||G652D||Cable Sheath||PE Sheath, PE Outer Sheath|
|Cable Color||Black||Cable Use||Outdoor|
1310nm Armored Fiber Optic Cable,
1550nm Armored Fiber Optic Cable
12 Core Single Steel Wire PE Outer Sheath Flame-Retardant Layer Filling Loose Tube Outdoor Fiber Optic Cable GYTZA33

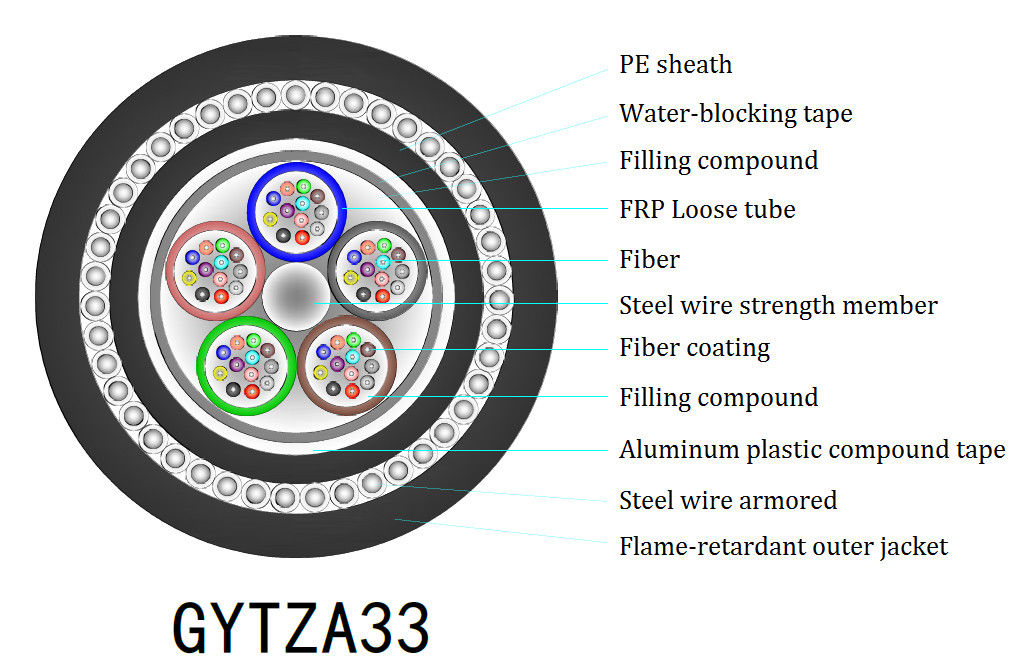

The fibers,250µm,are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound, A steel wire,sometimes sheathed with PE for cable with high fiber count, located in the center of core as a metallic strength member into a compact and circular cable core .An Aluminum Polyethylene Laminate (APL) is applied around the cable core .which is filled with the filling compound to protect it from water ingress. Then the cable is completed with a Flame-retardant sheath.
Good mechanical and temperature performance
High strength loose tube that is hydrolysis resistant
Special tube filling compound ensure a critical protection of fiber
Specially designed compact structure is good at preventing loose tubes from shrinking
Crush resistance and flexibility
Special sheath material ensure excellent flame-retardant performance
The following measures are taken to ensure the cable watertight
1. Steel wire used as the central strength member
2. Loose tube filling compound
3. 100% cable core filling
4. APL moisture barrier
|GYTZA33||GYTZA33 outdoor fiber optic cable,Metallic strength member,layer filling loose tube,PE sheath,Single steel wire PE outer sheath, Flame-retardant||Direct burial&Underwater laying|
|Tensile Strength (N)||Crush Resistance (N/100mm)||Bned Radius|
|Working Temperature(℃)||Max. attenuation (dB/km)|
|Long term||short term||Long term||short term||Static(D)||Dynamic (D)||Min.TA||Max.TB||1310μm||1550μm|
|4000||10000||3000||5000||12.5 D||25 D||-40℃||+60℃||≤0.36||≤0.22|
|Attenuation discontinuity||≤0.05 dB|
|Attenuation vs. Wavelength||@1285~1330nm||≤0.05 dB/km|
|Zero Dispersion Wavelength||1300~1324nm|
|Zero Dispersion Slope||≤0.092ps/(nm2.km)|
|Polarization Mode Dispersion(PMD)||≤0.2ps/km1/2|
|Cable Cutoff Wavelength(λcc)||≤1260nm|
|Effective Group Index of Refraction||@1310nm||1.4675|
|Macro bend loss (30mm radius,100turns) 1625nm||≤0.1 dB|
|Mode Field Diameter||@1310nm||9.2±0.6μm|
|Coating/Cladding Concentricity Error||≤8μm|
|Core/Cladding Concentricity Error||≤0.8μm|
|Proof Test level||≥1.0%|
|Fiber Curl Radius||≥4.0m|
|Peak Coating Strip Force||1.3~8.9N|
1. Are you the real manufacturer?
Yes. We are the real manufacturer with 18 years' history.
2. What is your fiber brand ?
Corning, SEI, YOFC, FiberHome, etc
3. Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.
4.What is your warranty period?
25 years for fiber optic cable
5. Which kind of certification you have ?
ISO9001, SGS, 3C Anatel.
6. What is your delivery time?
Usually within 2-3 working days
7. What about your annual production capacity?
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.
8. What is your payment way?
T/T, L/C, Western Union and Paypal.
9. Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.
10. Can you supply your cable test value form?
-Yes. After finishing production , we can supply if you ask.
11. Do your factory inspect every roll of cables?
-Yes. we factory do 100% inspection per order.
