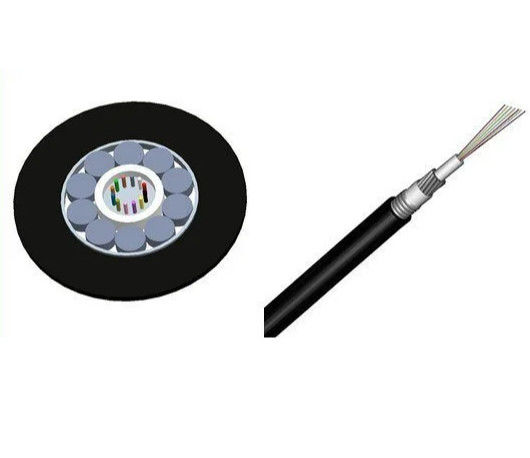

Central Tube G652D Outdoor Armored Fiber Optic Cable GYXTA
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Product Name||24 Core Metallic Strength Member Central Tube Filling-Type,Aluminium-PE Outer Jacket Fiber Optic Cable GYXTA||Fiber Count||24 Core|
|Fiber Type||G652D||Cable Sheath||Aluminium-PE|
|Cable Color||Black||Strength Member||Metallic Strength Member|
|Cable Use||Outdoor||Loose Tube||PBT|
G652D Outdoor Fiber Optic Cable,
GYXTA Outdoor Fiber Optic Cable
24 Core Metallic Strength Member Central Tube Filling-Type,Aluminium-PE Outer Jacket Fiber Optic Cable GYXTA

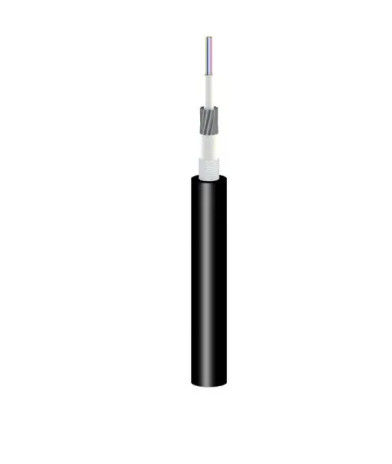

GYXTA optical fiber cable
Used for aerial & duct outer door telecommunication optical fiber cabl

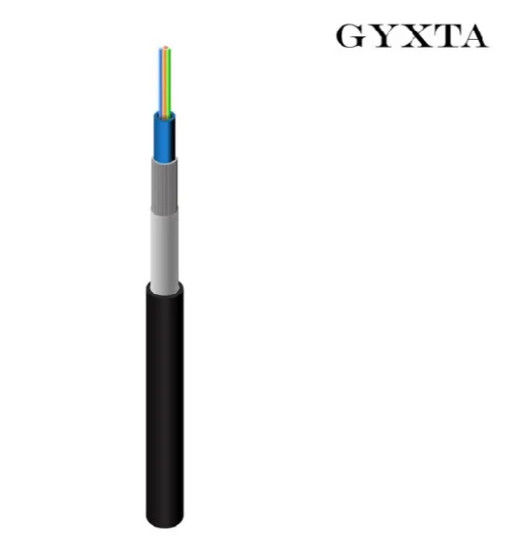

GYXTA optical fiber cable
Metal strength member, Central tube type, gelly filled, Polyethylene(PE) sheath, Outer door optical fiber cable for telecommunication
The unique fiber excess length control method provides the cable with excellent tension and environmental properties
The loose tube material itself have good water-resistant properties of solution and higher intensity, Special jelly filled in the loose tube provides the fibers with critical protection
Excellent crush resistance performance and flexible performance
The out PE sheath provides good anti-UV radiation performance
Adopt the following measures to ensure the waterproof properties of optical fiber cable
Steel wires strengthen
The unique waterproof compounds filled in the loose tube
Safety-filled cable core
Double-sided plastic strip (PSP) moisture-proof layer
|GYXTA||Metallic strength member,Central tube,Filling-type,Aluminium-PE outer jacket||Overhead laying&Pipeline laying|
|Tensile Strength (N)||Crush Resistance (N/100mm)||Bned Radius|
|Working Temperature(℃)||Max. attenuation (dB/km)||fibers||OD(mm)||weight kg/km|
|Long term||short term||Long term||short term||Static(D)||Dynamic (D)||Min.TA||Max.TB||1310μm||1550μm|
|600||1500||300||1000||10 D||20 D||-40℃||+60℃||≤0.36||≤0.22||2～24||16.0～18.0||230～270|
|Attenuation discontinuity||≤0.05 dB|
|Attenuation vs. Wavelength||@1285~1330nm||≤0.05 dB/km|
|Zero Dispersion Wavelength||1300~1324nm|
|Zero Dispersion Slope||≤0.092ps/(nm2.km)|
|Polarization Mode Dispersion(PMD)||≤0.2ps/km1/2|
|Cable Cutoff Wavelength(λcc)||≤1260nm|
|Effective Group Index of Refraction||@1310nm||1.4675|
|Macro bend loss (30mm radius,100turns) 1625nm||≤0.1 dB|
|Mode Field Diameter||@1310nm||9.2±0.6μm|
|Coating/Cladding Concentricity Error||≤8μm|
|Core/Cladding Concentricity Error||≤0.8μm|
|Proof Test level||≥1.0%|
|Fiber Curl Radius||≥4.0m|
|Peak Coating Strip Force||1.3~8.9N|
1. Are you the real manufacturer?
Yes. We are the real manufacturer with 18 years' history.
2. What is your fiber brand ?
Corning, SEI, YOFC, FiberHome, etc
3. Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.
4.What is your warranty period?
25 years for fiber optic cable
5. Which kind of certification you have ?
ISO9001, SGS, 3C Anatel.
6. What is your delivery time?
Usually within 2-3 working days
7. What about your annual production capacity?
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.
8. What is your payment way?
T/T, L/C, Western Union and Paypal.
9. Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.
10. Can you supply your cable test value form?
-Yes. After finishing production , we can supply if you ask.
11. Do your factory inspect every roll of cables?
-Yes. we factory do 100% inspection per order.
