GYTZA Outdoor Multimode Fiber Optic Cable , Dielectric Armored Fiber Optic Cable
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Product Name||24 Core Layer Filling Loose Tube Aluminium PE Sheath Flame-Retardant Outdoor Fiber Optic Cable GYTZA||Fiber Count||24 Core|
|Fiber Type||G652D||Cable Sheath||Aluminium PE Sheath|
|Cable Color||Black||Strength Member||Metallic Strength Member|
|Cable Use||Outdoor||Loose Tube||PBT|
dielectric multimode fiber optic cable,
GYTZA armored fiber optic cable

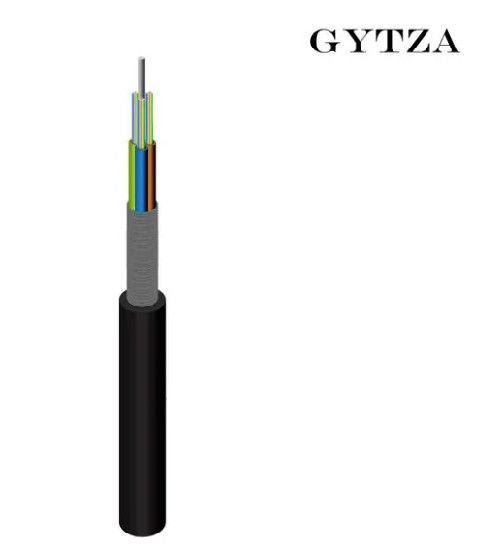

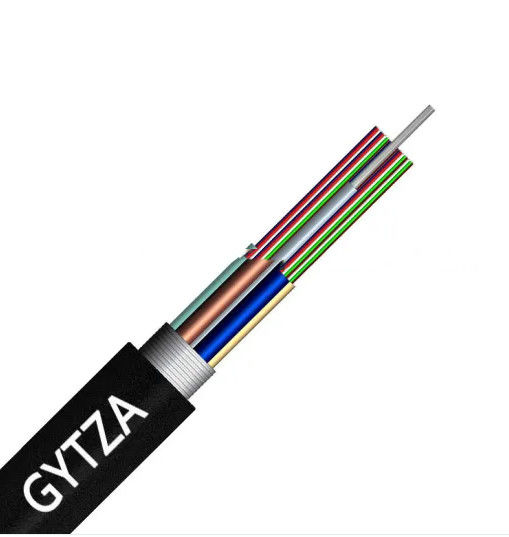

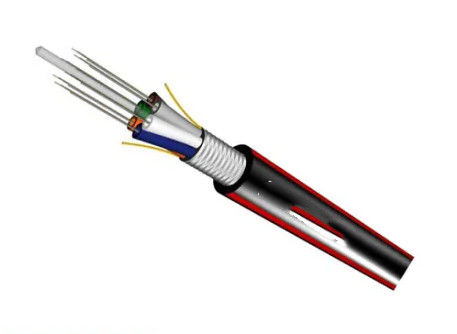

24 Core Layer Filling Loose Tube Aluminium PE Sheath Flame-Retardant Outdoor Fiber Optic Cable GYTZA
Characteristics of product:
1. Corrugated aluminum tape, loose tube stranding with single sheath
2. Loose tube material has good hydrolysis resistance performance and high strength
3. Compact structure, excellent water-blocking performance
4. Strict manufacturing processes. Good mechanical performance and environmental properties.
5. Good performance of Flame retardant.
2. Relay communication system.
3. Core network , metropolitan area network and access network etc.
|GYTZA||GYTZA outer fiber optic cable, Metallic strength member,layer filling loose tube, Aluminium PE sheath,Flame-retardant||Overhead&Pipeline laying|
|Tensile Strength (N)||Crush Resistance (N/100mm)||Bned Radius
|Working Temperature(℃)||Max. attenuation (dB/km)|
|Long term||short term||Long term||short term||Static(D)||Dynamic (D)||Min.TA||Max.TB||1310μm||1550μm|
|600||1500||300||1000||10 D||20 D||-40℃||+60℃||≤0.36||
|Attenuation discontinuity||≤0.05 dB|
|Attenuation vs. Wavelength||@1285~1330nm||≤0.05 dB/km|
|Zero Dispersion Wavelength||1300~1324nm|
|Zero Dispersion Slope||≤0.092ps/(nm2.km)|
|Polarization Mode Dispersion(PMD)||≤0.2ps/km1/2|
|Cable Cutoff Wavelength(λcc)||≤1260nm|
|Effective Group Index of Refraction||@1310nm||1.4675|
|Macro bend loss (30mm radius,100turns) 1625nm||≤0.1 dB|
|Mode Field Diameter||@1310nm||9.2±0.6μm|
|Coating/Cladding Concentricity Error||≤8μm|
|Core/Cladding Concentricity Error||≤0.8μm|
|Proof Test level||≥1.0%|
|Fiber Curl Radius||≥4.0m|
|Peak Coating Strip Force||1.3~8.9N|
1. Are you the real manufacturer?
Yes. We are the real manufacturer with 18 years' history.
2. What is your fiber brand ?
Corning, SEI, YOFC, FiberHome, etc
3. Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.
4.What is your warranty period?
25 years for fiber optic cable
5. Which kind of certification you have ?
ISO9001, SGS, 3C Anatel.
6. What is your delivery time?
Usually within 2-3 working days
7. What about your annual production capacity?
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.
8. What is your payment way?
T/T, L/C, Western Union and Paypal.
9. Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.
10. Can you supply your cable test value form?
-Yes. After finishing production , we can supply if you ask.
11. Do your factory inspect every roll of cables?
-Yes. we factory do 100% inspection per order.
