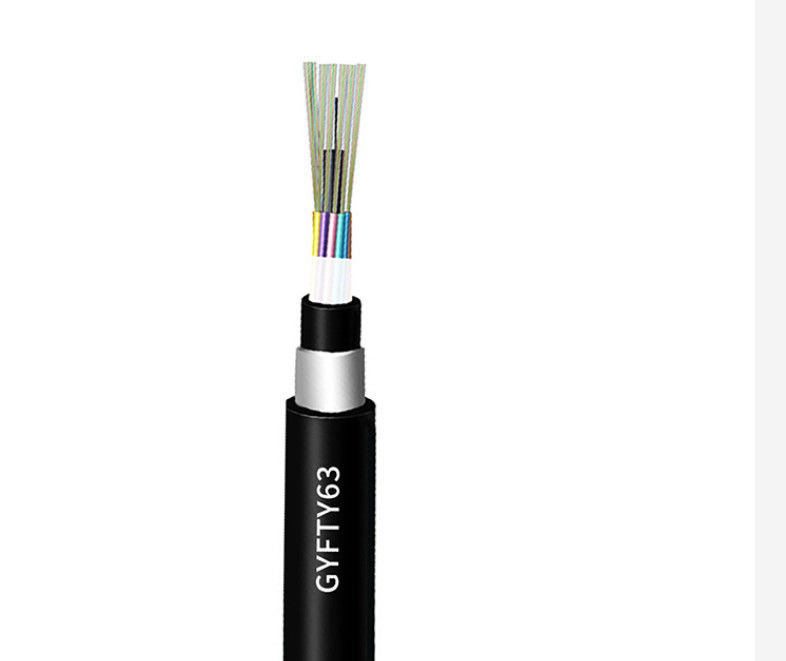

Aerial Outdoor Armored Fiber Optic Cable 24 Core GYFTY63

Aerial Outdoor Armored Fiber Optic Cable 24 Core GYFTY63

Aerial Armored Fiber Optic Cable

GYFTY63 Outdoor Armored Fiber Optic Cable

Place of Origin:


Brand Name:




Model Number:

GYFTY63 24 Core

Contact Us

Request A Quote
Product Details
Product Name:
24 Core Longitudinal Corrugated Steel Tape Armored Flame-retardant Outdoor Fiber Optic Cable GYFTY63
Fiber Count:
24 Core
Fiber Type:
Cable Sheath:
FE Sheath, PE Outer Sheath
Cable Color:
Strength Member:
Metallic Strength Member
Cable Use:
Loose Tube:
Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
Wooden Drum
Delivery Time
7 days
Payment Terms
L/C, D/P, T/T, Western Union
Supply Ability
500km per week
Product Description

24 core Longitudinal Corrugated Steel Tape Armored Flame-retardant Outdoor Fiber Optic Cable GYFTY63



GYFTY63 Single Jacket None Metallic optical fiber cable are designed to provide high fiber

counts with the flexibility and versatility required for today's most demanding installations, including duct and

underground conduit


1. The design of non-metallic strength member and loose tube stranded structure ensures that the cable has good mechanical and temperature characteristics 2. The tube is filled with buffer jelly, which not only protects the optical fiber but also plays a waterproof role 3. High strength non-metallic strength member and glass yarn provide tensile strength 4. The cable filled with water-blocking jelly can effectively waterproof 5. It can effectively prevent rats from breaking the cable

Excellent mechanical and temperature performance.
Loose tube gel-filled construction for superior fiber protection.
100% core filling water prevent cable jelly to ensure the cable watertight.
Crush resistance and flexibility.
Outer sheath UV protection and waterproof design.


Aerial / duct --Anti-rodent
Long-distance communication;
Interoffice communication
Model Description Applications
GYFTY63 GYFTY63 outdoor fiber optic cable,Metallic strength member,layer half-dry loose tube,FE sheath,Longitudinal corrugated steel tape armored,PE outer sheath,Flame-retardant Pipeline laying&Direct burial


Tensile Strength (N) Crush Resistance (N/100mm) Bned Radius
Working Temperature(℃) Max. attenuation (dB/km)
Long term short term Long term short term Static(D) Dynamic (D) Min.TA Max.TB 1310μm 1550μm
1000 3000 1000 3000 12.5 D 25 D -40℃ +60℃ ≤0.36 ≤0.22

1. Are you the real manufacturer?
Yes. We are the real manufacturer with 18 years' history.
2. What is your fiber brand ?
Corning, SEI, YOFC, FiberHome, etc
3. Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.
4.What is your warranty period?
25 years for fiber optic cable
5. Which kind of certification you have ?
ISO9001, SGS, 3C Anatel.
6. What is your delivery time?
Usually within 2-3 working days
7. What about your annual production capacity?
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.
8. What is your payment way?
T/T, L/C, Western Union and Paypal.
9. Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.
10. Can you supply your cable test value form?
-Yes. After finishing production , we can supply if you ask.
11. Do your factory inspect every roll of cables?
-Yes. we factory do 100% inspection per order.

Category Description Specifications
Optical Specifications Attenuation @1310nm ≤0.36dB/km
@1550nm ≤0.22dB/km
Attenuation discontinuity ≤0.05 dB
Attenuation vs. Wavelength @1285~1330nm ≤0.05 dB/km
@1525~1575nm ≤0.05 dB/km
Zero Dispersion Wavelength 1300~1324nm
Zero Dispersion Slope ≤0.092ps/(
Dispersion @1310nm ≤3.5 ps/
@1550nm ≤18 ps/
Polarization Mode Dispersion(PMD) ≤0.2ps/km1/2
Cable Cutoff Wavelength(λcc) ≤1260nm
Effective Group Index of Refraction @1310nm 1.4675
@1550nm 1.4681
Macro bend loss (30mm radius,100turns) 1625nm ≤0.1 dB
Mode Field Diameter @1310nm 9.2±0.6μm
@1550nm 10.4±0.8μm
Cladding Diameter 125±1μm
Cladding Non-Circularity ≤1.0%
Coating Diameter 245±7μm
Coating/Cladding Concentricity Error ≤8μm
Core/Cladding Concentricity Error ≤0.8μm
Proof Test level ≥1.0%
Fiber Curl Radius ≥4.0m
Peak Coating Strip Force 1.3~8.9N

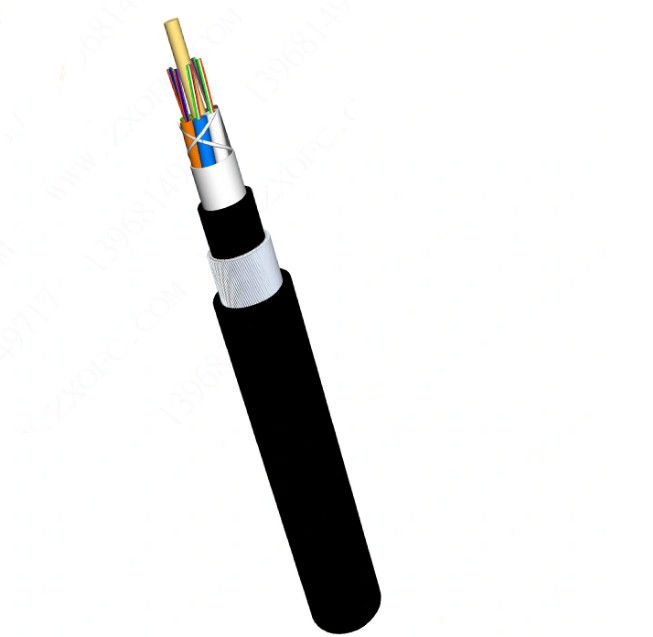

Aerial Outdoor Armored Fiber Optic Cable 24 Core GYFTY63 0

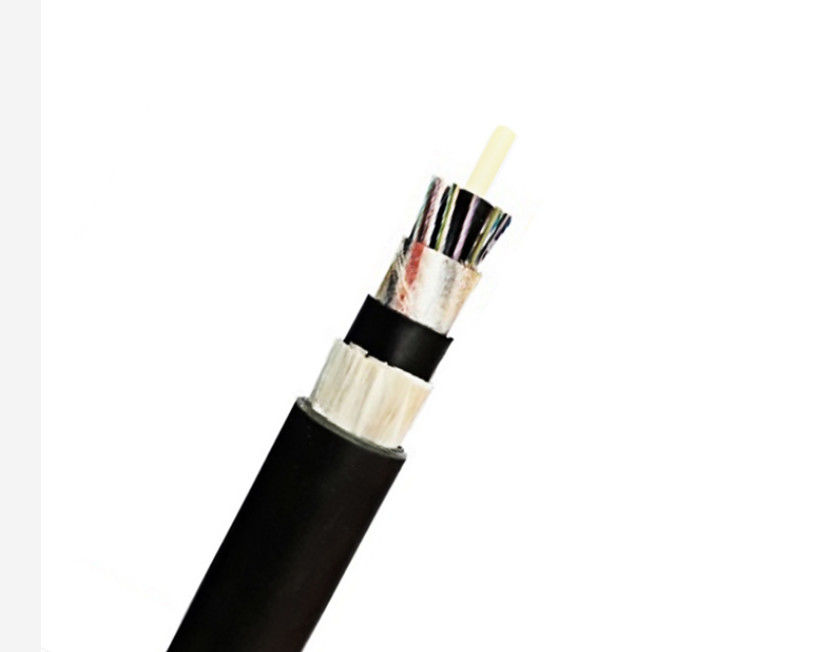

Aerial Outdoor Armored Fiber Optic Cable 24 Core GYFTY63 1
