1550nm Outdoor Armored Fiber Optic Cable 24 Strand GYTY53
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Product Name||24 Core Corrugated Steel Tape Armored Layer Filling Loose Tube Outdoor Fiber Optic Cable GYTY53||Fiber Count||24 Core|
|Fiber Type||G652D||Cable Sheath||PE Sheath, PE Outer Sheath|
|Cable Color||Black||Strength Member||Metallic Strength Member|
|Cable Use||Outdoor||Loose Tube||PBT|
1550nm Outdoor Fiber Optic Cable,
24 strand Outdoor Fiber Optic Cable

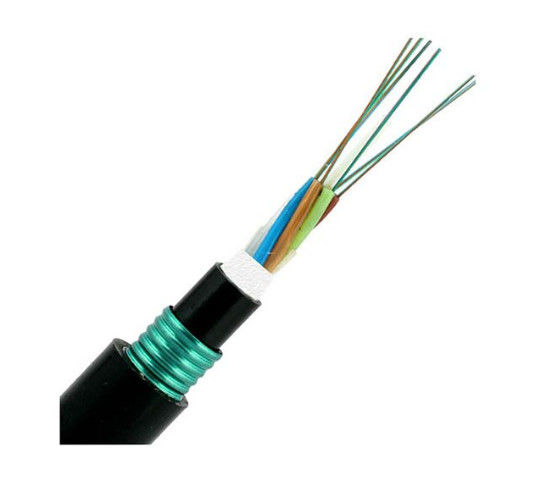

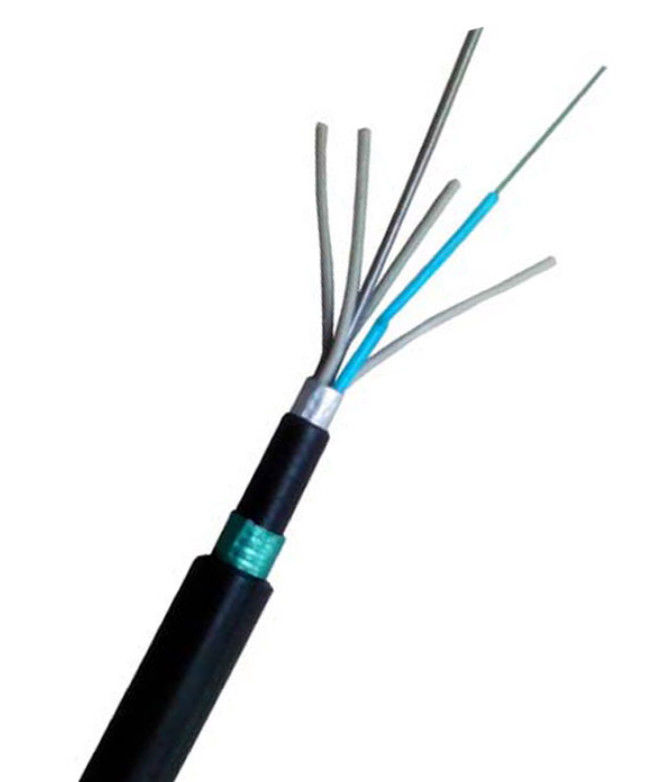

24 Core Corrugated Steel Tape Armored Layer Filling Loose Tube Outdoor Fiber Optic Cable GYTY53

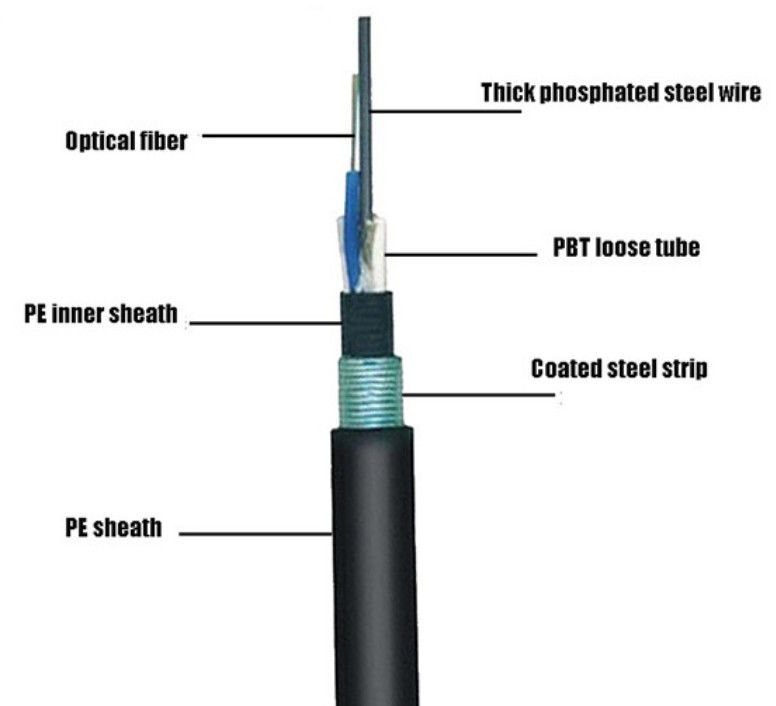

In the GYTY53 cable, singlemode/multimode fibers are positioned in the loose tubes,the tubes are filled with water blocking filling compound. Tubes and fillers are stranded around the strength member into a circular cable core.
An Aluminum Polyethylene Laminate(APL) is applied around the core. Which is filled with the filling compound to protect it. Then the cable is completed with a thin PE sheath. After PSP is applied over the inner sheath, the cable is completed with a PE outer sheath.
1. Excellent mechanical and temperature.
2. Critical protection to fibers.
3. The following measures are taken to ensure the water blocking performance of the cable:
- Single steel wire used as the central strength Member
- Special water-blocking filling compound in the loose tube
- 100% cable core filling
- APL and PSP moisture barrier
Low loss and dispersion of optical fiber transmission;
Double-sided coated steel belt(PSP) improves moisture resistance of cable
Double cover structure to meet the requirements of direct burial
|GYTY53||GYTY53 outdoor fiber optic cable,Metallic strength member,layer filling loose tube,PE sheath,Corrugated steel tape armored,PE outer sheath||Pipeline laying&Direct burial|
|Tensile Strength (N)||Crush Resistance (N/100mm)||Bned Radius
|Working Temperature(℃)||Max. attenuation (dB/km)|
|Long term||short term||Long term||short term||Static(D)||Dynamic (D)||Min.TA||Max.TB||1310μm||1550μm|
|1000||3000||1000||3000||12.5 D||25 D||-40℃||+60℃||≤0.36||≤0.22|
|Attenuation discontinuity||≤0.05 dB|
|Attenuation vs. Wavelength||@1285~1330nm||≤0.05 dB/km|
|Zero Dispersion Wavelength||1300~1324nm|
|Zero Dispersion Slope||≤0.092ps/(nm2.km)|
|Polarization Mode Dispersion(PMD)||≤0.2ps/km1/2|
|Cable Cutoff Wavelength(λcc)||≤1260nm|
|Effective Group Index of Refraction||@1310nm||1.4675|
|Macro bend loss (30mm radius,100turns) 1625nm||≤0.1 dB|
|Mode Field Diameter||@1310nm||9.2±0.6μm|
|Coating/Cladding Concentricity Error||≤8μm|
|Core/Cladding Concentricity Error||≤0.8μm|
|Proof Test level||≥1.0%|
|Fiber Curl Radius||≥4.0m|
|Peak Coating Strip Force||1.3~8.9N|
