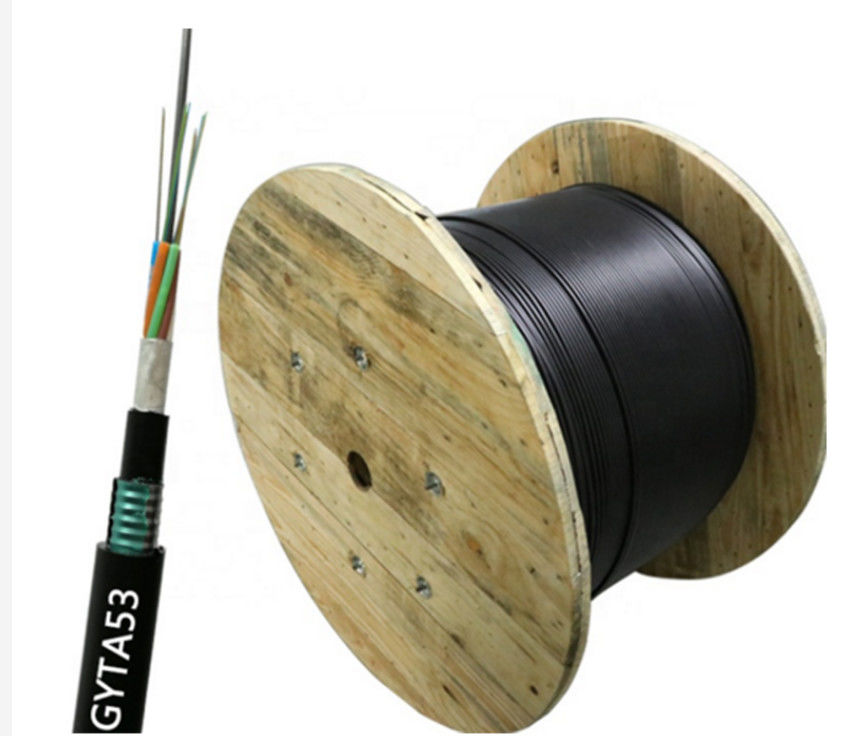

Multimode G652D Armored 48 Core Fiber Optic Cable GYTA53

Multimode G652D Armored 48 Core Fiber Optic Cable GYTA53

G652D 48 core fiber optic cable

GYTA53 48 core fiber optic cable

Place of Origin:

China

Brand Name:

YUANTONG

Certification:

ROSH ,TLC, CCC, ISO

Model Number:

GYTA53 48 Core

Contact Us

Request A Quote
Product Details
Product Name:
48 Core Corrugated Steel Tape Armored Steel PE Sheath Outdoor Fiber Optic Cable GYTA53
Fiber Count:
48 Core
Fiber Type:
G652D
Cable Sheath:
Steel PE Sheath, PE Outer Sheath
Cable Color:
Black
Strength Member:
Metallic Strength Member
Cable Use:
Outdoor
Loose Tube:
PBT
Payment & Shipping Terms
Minimum Order Quantity
20KM
Price
Negotiable
Packaging Details
Wooden Drum
Delivery Time
7 days
Payment Terms
L/C, D/P, T/T, Western Union
Supply Ability
500km per week
Product Description

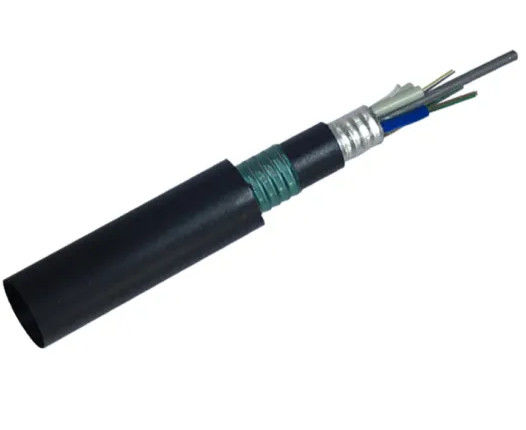

48 Core Corrugated Steel Tape Armored Steel PE sheath Outdoor Fiber Optic Cable GYTA53



Description:

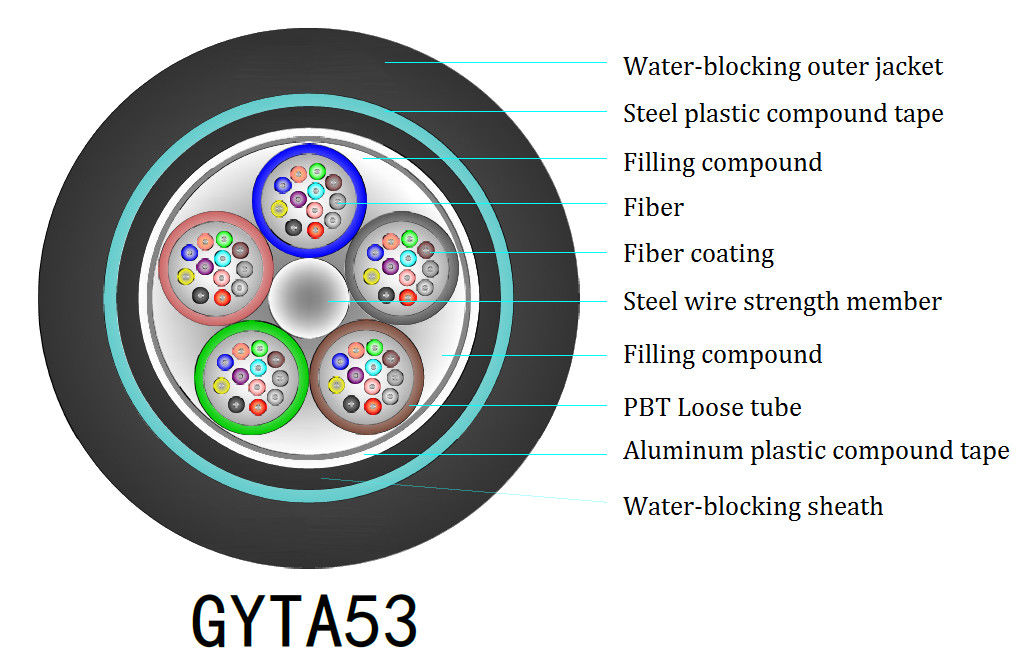

In the GYTA53 cable, single-mode/multimode fibers are positioned in the loose tubes, the tubes are filled with water blocking filling compound. Tubes and fillers are stranded around the strength member into a circular cable core. An Aluminum Polyethylene Laminate(APL) is applied around the core

Characteristic:

· Good mechanical and temperature performance
· High strength loose tube that is hydrolysis resistant
· Special tube filling compound ensure a critical protection of fiber
· Specially designed compact structure is good at preventing loose tubes from shrinking ·PE sheath protects cable from ultraviolet radiation ·Good crush tolerance,applies for duct and directly buried distribution ·To assure the water-proof function by:
· Single steel wire as central strength member
· Special tube filling compound ensure a critical protection of fiber
· PSP enhances the ability to avoid moisture
· Fully filled in the cable
· Good water-blocking tape prevent the sinking vertically


ModelDescriptionApplications
GYTA53GYTA53 outdoor fiber optic cable,Metallic strength member,layer filling loose tube, Steel PE sheath, Corrugated steel tape armored,PE outer sheathPipeline laying&Direct burial



Tensile Strength (N)Crush Resistance (N/100mm)Bned Radius
(mm)
Working Temperature(℃)Max. attenuation (dB/km)
Long termshort termLong termshort termStatic(D)Dynamic (D)Min.TAMax.TB1310μm1550μm
100030001000300012.5 D25 D-40℃+60℃≤0.36≤0.22



CategoryDescriptionSpecifications
G.652D
Optical SpecificationsAttenuation@1310nm≤0.36dB/km
@1550nm≤0.22dB/km
Attenuation discontinuity≤0.05 dB
Attenuation vs. Wavelength@1285~1330nm≤0.05 dB/km
@1525~1575nm≤0.05 dB/km
Zero Dispersion Wavelength1300~1324nm
Zero Dispersion Slope≤0.092ps/(nm2.km)
Dispersion@1310nm≤3.5 ps/nm.km
@1550nm≤18 ps/nm.km
Polarization Mode Dispersion(PMD)≤0.2ps/km1/2
Cable Cutoff Wavelength(λcc)≤1260nm
Effective Group Index of Refraction@1310nm1.4675
@1550nm1.4681
Macro bend loss (30mm radius,100turns) 1625nm≤0.1 dB
Geometric
Specifications
Mode Field Diameter@1310nm9.2±0.6μm
@1550nm10.4±0.8μm
Cladding Diameter125±1μm
Cladding Non-Circularity≤1.0%
Coating Diameter245±7μm
Coating/Cladding Concentricity Error≤8μm
Core/Cladding Concentricity Error≤0.8μm
Mechanical
Specifications
Proof Test level≥1.0%
Fiber Curl Radius≥4.0m
Peak Coating Strip Force1.3~8.9N


FAQ
1. Are you the real manufacturer?
Yes. We are the real manufacturer with 18 years' history.
2. What is your fiber brand ?
Corning, SEI, YOFC, FiberHome, etc
3. Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.
4.What is your warranty period?
25 years for fiber optic cable
5. Which kind of certification you have ?
ISO9001, SGS, 3C Anatel.
6. What is your delivery time?
Usually within 2-3 working days
7. What about your annual production capacity?
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.
8. What is your payment way?
T/T, L/C, Western Union and Paypal.
9. Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.
10. Can you supply your cable test value form?
-Yes. After finishing production , we can supply if you ask.
11. Do your factory inspect every roll of cables?
-Yes. we factory do 100% inspection per order.
