PE Outer Sheath Frls And Fr Cable , GYTZA33 Outdoor Cable Tube 48 Core

PE Outer Sheath Frls And Fr Cable , GYTZA33 Outdoor Cable Tube 48 Core

48Core frls and fr cable

GYTZA33 frls and fr cable

PE Sheath outdoor cable tube

Place of Origin:

China

Brand Name:

YUANTONG

Certification:

ROSH ,TLC, CCC, ISO

Model Number:

GYTZA33 48 Core

Contact Us

Request A Quote
Product Details
Product Name:
48 Core Single Steel Wire PE Outer Sheath Flame-Retardant Layer Filling Loose Tube Outdoor Fiber Optic Cable GYTZA33
Fiber Count:
48 Core
Fiber Type:
G652D
Cable Sheath:
PE Sheath, PE Outer Sheath
Cable Color:
Black
Cable Use:
Outdoor
Loose Tube:
PBT
Payment & Shipping Terms
Minimum Order Quantity
20KM
Price
Negotiable
Packaging Details
Wooden Drum
Delivery Time
7 days
Payment Terms
L/C, D/P, T/T, Western Union
Supply Ability
500km per week
Product Description

48 Core Single Steel Wire PE Outer Sheath Flame-Retardant Layer Filling Loose Tube Outdoor Fiber Optic Cable GYTZA33



DESCRIPTION:

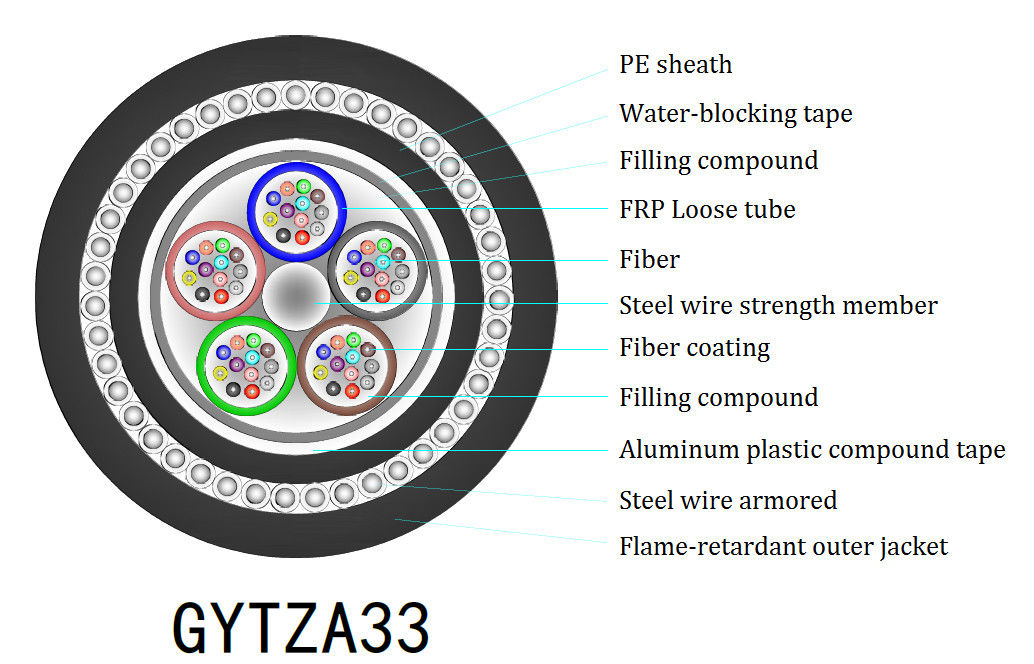

The product is to insert optical fiber into a loose tube made of high modulus material, filled with water-blocking compounds. A layer of polyethylene should be extruded outside the metal reinforced core. The loose tube and filling rope around the center strengthen the core winch to form a compact and round cable core. The gap in the cable core is filled with water blocking fillings. Extrusion of flame-retardant protective cover into cable after coated aluminum strip.


FEATURES:
Low loss and dispersion of optical fiber transmission;
The loose tube is filled with special oil ointment, which provides the key protection to the optical fiber;
Specially designed compact fiber optic cable structure effectively prevents casing retraction;

APPLICATIONS:
Into the Bureau, Tunnel, Aerial





Model Description Applications
GYTZA33 GYTZA33 outdoor fiber optic cable,Metallic strength member,layer filling loose tube,PE sheath,Single steel wire PE outer sheath, Flame-retardant Direct burial&Underwater laying



Tensile Strength (N) Crush Resistance (N/100mm) Bned Radius
(mm)
Working Temperature(℃) Max. attenuation (dB/km)
Long term short term Long term short term Static(D) Dynamic (D) Min.TA Max.TB 1310μm 1550μm
4000 10000 3000 5000 12.5 D 25 D -40℃ +60℃ ≤0.36 ≤0.22



Category Description Specifications
G.652D
Optical Specifications Attenuation @1310nm ≤0.36dB/km
@1550nm ≤0.22dB/km
Attenuation discontinuity ≤0.05 dB
Attenuation vs. Wavelength @1285~1330nm ≤0.05 dB/km
@1525~1575nm ≤0.05 dB/km
Zero Dispersion Wavelength 1300~1324nm
Zero Dispersion Slope ≤0.092ps/(nm2.km)
Dispersion @1310nm ≤3.5 ps/nm.km
@1550nm ≤18 ps/nm.km
Polarization Mode Dispersion(PMD) ≤0.2ps/km1/2
Cable Cutoff Wavelength(λcc) ≤1260nm
Effective Group Index of Refraction @1310nm 1.4675
@1550nm 1.4681
Macro bend loss (30mm radius,100turns) 1625nm ≤0.1 dB
Geometric
Specifications
Mode Field Diameter @1310nm 9.2±0.6μm
@1550nm 10.4±0.8μm
Cladding Diameter 125±1μm
Cladding Non-Circularity ≤1.0%
Coating Diameter 245±7μm
Coating/Cladding Concentricity Error ≤8μm
Core/Cladding Concentricity Error ≤0.8μm
Mechanical
Specifications
Proof Test level ≥1.0%
Fiber Curl Radius ≥4.0m
Peak Coating Strip Force 1.3~8.9N



FAQ
1. Are you the real manufacturer?
Yes. We are the real manufacturer with 18 years' history.

2. What is your fiber brand ?
Corning, SEI, YOFC, FiberHome, etc

3. Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.
4.What is your warranty period?
25 years for fiber optic cable

5. Which kind of certification you have ?
ISO9001, SGS, 3C Anatel.

6. What is your delivery time?
Usually within 2-3 working days

7. What about your annual production capacity?
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.

8. What is your payment way?
T/T, L/C, Western Union and Paypal.

9. Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.

10. Can you supply your cable test value form?
-Yes. After finishing production , we can supply if you ask.

11. Do your factory inspect every roll of cables?
-Yes. we factory do 100% inspection per order.

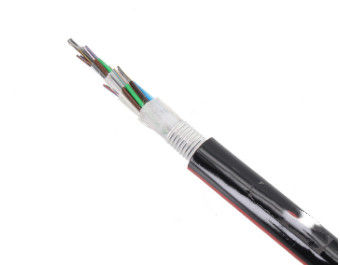

PE Outer Sheath Frls And Fr Cable , GYTZA33 Outdoor Cable Tube 48 Core 0

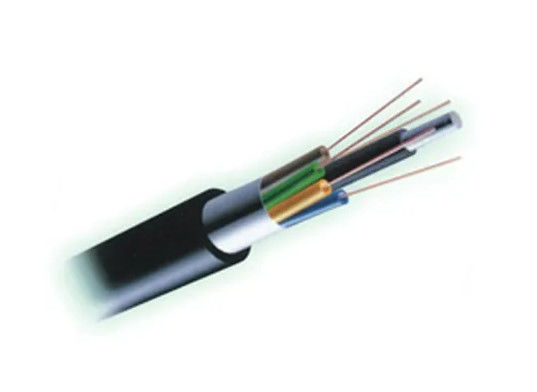

PE Outer Sheath Frls And Fr Cable , GYTZA33 Outdoor Cable Tube 48 Core 1
