Name: 48 Core Outdoor Armored Fiber Optic Cable GYTZA with Aluminium PE Sheath Corrosion Resistant and Water-Blocking
Brand: Sichuan Yuantong Communication Co., Ltd.
SKU: GYTZA 48 Core
Price: 0.38 USD
Availability: InStock

Home > Products > Outdoor Armored Fiber Optic Cable >

48 Core Outdoor Armored Fiber Optic Cable GYTZA with Aluminium PE Sheath Corrosion Resistant and Water-Blocking

GYTZA Outdoor Armored Fiber Optic Cable

48Core Armored Fiber Optic Cable

Armored flame resistant cable

Place of Origin:

China

Brand Name:

YUANTONG

Certification:

ROSH ,TLC, CCC, ISO

Model Number:

GYTZA 48 Core

Request A Quote

Product Details

Product Name:

48 Core Layer Filling Loose Tube Aluminium PE Sheath Flame-Retardant Outdoor Fiber Optic Cable GYTZA

Fiber Count:

48 Core

Fiber Type:

G652D

Cable Sheath:

Aluminium PE Sheath

Cable Color:

Black

Strength Member:

Metallic Strength Member

Cable Use:

Outdoor

Loose Tube:

PBT

Payment & Shipping Terms

Minimum Order Quantity

20KM

Price

Negotiable

Packaging Details

Wooden Drum

Delivery Time

7 days

Payment Terms

L/C,D/P,T/T,Western Union

Supply Ability

500km per week

GYY Fully Dry Outdoor Armored Fiber Optic Cable 1000m Steel Tape

Get Best Price

Video

GYFTY Non-Metallic Outdoor Fiber Optic Cable 2-288 Cores

Get Best Price

GYTS04 Stranded steel tape armoring and nylon outer protective optical cable

Get Best Price

Video

6-144 Cores Network Data Signal Transmission Outdoor Optical Fiber Cable With Customization Services

Get Best Price

+86 159 2815 7093

Sales03@chinafibercable.com

86-28-85050348

Contact Now

Product Description

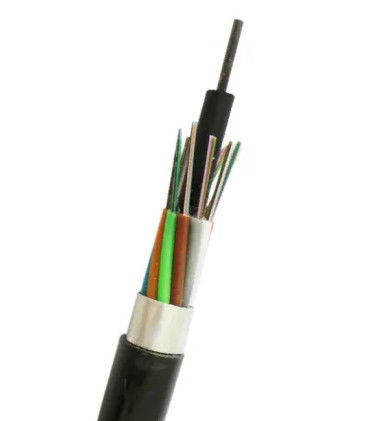

48 Core Outdoor Armored Fiber Optic Cable GYTZA Flame Resistant

48 Core Layer Filling Loose Tube Aluminium PE Sheath Flame-Retardant Outdoor Fiber Optic Cable GYTZA

Characteristics of product:

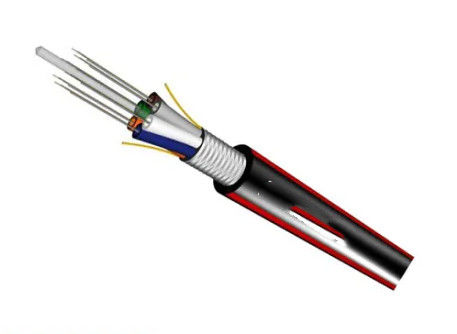

Corrugated aluminum tape, loose tube stranding with single sheath
Loose tube material has good hydrolysis resistance performance and high strength
Compact structure, excellent water-blocking performance
Strict manufacturing processes. Good mechanical performance and environmental properties.
Good performance of Flame retardant.

Product Applications:

Duct, aerial
Relay communication system
Core network, metropolitan area network and access network etc.

Product Specifications:

Model	Description	Applications

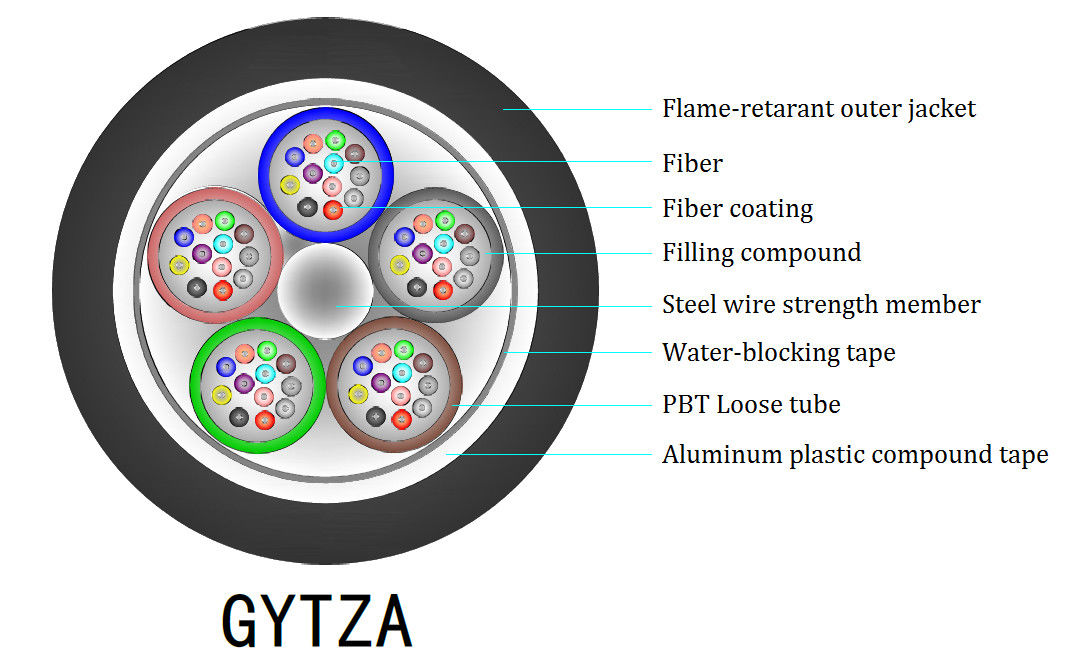

GYTZA	GYTZA outer fiber optic cable, Metallic strength member, layer filling loose tube, Aluminium PE sheath, Flame-retardant	Overhead & Pipeline laying

Tensile Strength (N)	Crush Resistance (N/100mm)	Bend Radius (mm)	Working Temperature(℃)	Max. attenuation (dB/km)
Long term: 600 Short term: 1500	Long term: 300 Short term: 1000	Static: 10 D Dynamic: 20 D	Min: -40℃ Max: +60℃	1310μm: ≤0.36 1550μm: ≤0.22

Optical Specifications:

Category	Description	Specifications
G.652D	Attenuation @1310nm	≤0.36dB/km
	Attenuation @1550nm	≤0.22dB/km
	Attenuation discontinuity	≤0.05 dB
	Attenuation vs. Wavelength @1285~1330nm	≤0.05 dB/km
	Attenuation vs. Wavelength @1525~1575nm	≤0.05 dB/km
	Zero Dispersion Wavelength	1300~1324nm
	Zero Dispersion Slope	≤0.092ps/(nm2.km)
	Dispersion @1310nm	≤3.5 ps/nm.km
	Dispersion @1550nm	≤18 ps/nm.km
	Polarization Mode Dispersion(PMD)	≤0.2ps/km1/2
	Cable Cutoff Wavelength(λcc)	≤1260nm
	Effective Group Index of Refraction @1310nm	1.4675
Effective Group Index of Refraction @1550nm	1.4681
Macro bend loss (30mm radius,100turns) 1625nm	≤0.1 dB

Geometric Specifications:

Mode Field Diameter @1310nm	9.2±0.6μm
Mode Field Diameter @1550nm	10.4±0.8μm
Cladding Diameter	125±1μm
Cladding Non-Circularity	≤1.0%
Coating Diameter	245±7μm
Coating/Cladding Concentricity Error	≤8μm
Core/Cladding Concentricity Error	≤0.8μm

Mechanical Specifications:

Proof Test level	≥1.0%
Fiber Curl Radius	≥4.0m
Peak Coating Strip Force	1.3~8.9N

Frequently Asked Questions

Are you the real manufacturer?

Yes. We are the real manufacturer with 18 years' history.

What is your fiber brand?

Corning, SEI, YOFC, FiberHome, etc

Can you accept small order?

Yes, small order is available. We support new project of our customers as we know business is always from small order.

What is your warranty period?

25 years for fiber optic cable

Which kind of certification you have?

ISO9001, SGS, 3C Anatel.

What is your delivery time?

Usually within 2-3 working days

What about your annual production capacity?

Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.

What is your payment way?

T/T, L/C, Western Union and Paypal.

Can you supply customized products and logo?

Yes. We supply OEM&ODM service. You can send us your drawing.

Can you supply your cable test value form?

Yes. After finishing production, we can supply if you ask.

Do your factory inspect every roll of cables?

Yes. we factory do 100% inspection per order.
