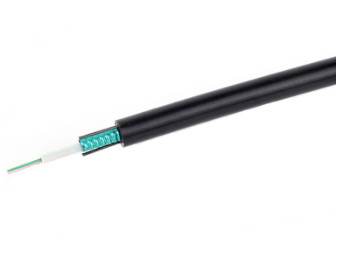

GYXS 48 Strand Fiber Optic Cable

GYXS 48 Strand Fiber Optic Cable

GYXS 48 strand fiber optic cable

G652D 48 strand fiber optic cable

Place of Origin:

China

Brand Name:

YUANTONG

Certification:

ROSH ,TLC, CCC, ISO

Model Number:

GYXS 48 Core

Contact Us

Request A Quote
Product Details
Product Name:
48 Core Metallic Strength Member Central Tube Dry-Type Steel-PE Outer Jacket Outdoor Fiber Optic Cable GYXS
Fiber Count:
48 Core
Fiber Type:
G652D
Cable Sheath:
Steel-PE Outer Jacket
Cable Color:
Black
Strength Member:
Metallic Strength Member
Cable Use:
Outdoor
Loose Tube:
PBT
Payment & Shipping Terms
Minimum Order Quantity
20KM
Price
Negotiable
Packaging Details
Wooden Drum
Delivery Time
7 days
Payment Terms
L/C, D/P, T/T, Western Union
Supply Ability
500km per week
Product Description

48 Core Metallic Strength Member Central Tube Dry-Type Steel-PE Outer Jacket Outdoor Fiber Optic Cable GYXS

Product Description:

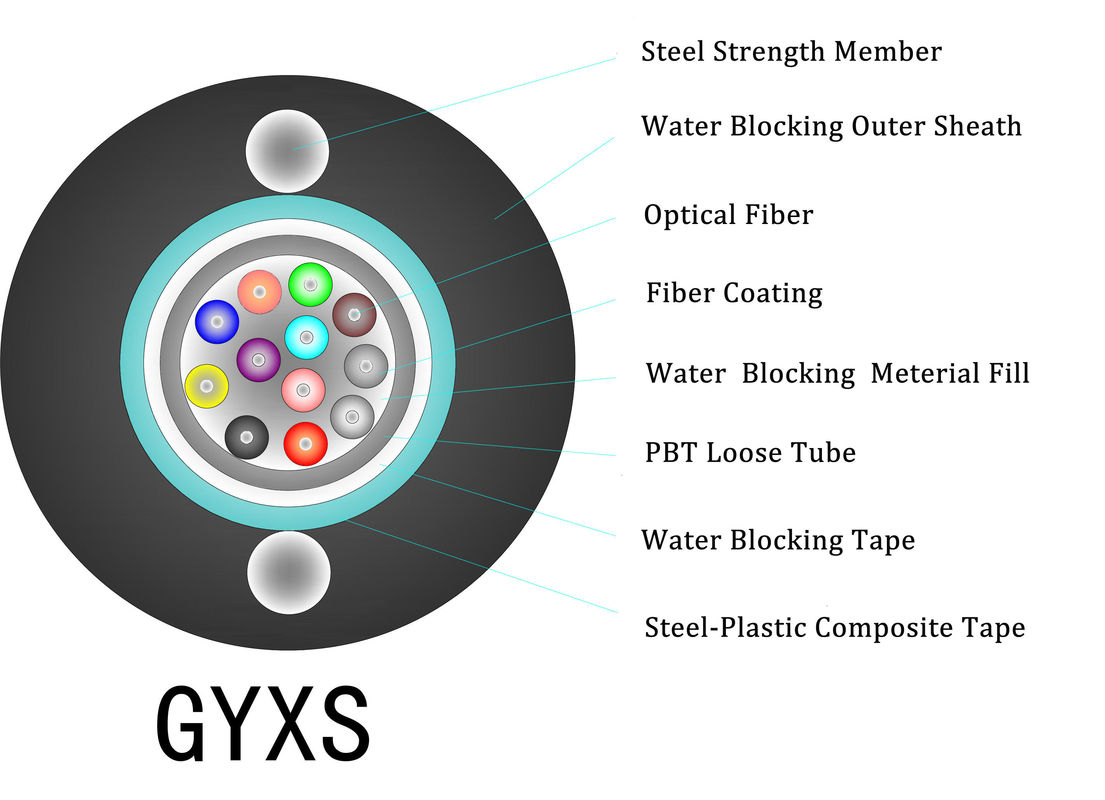

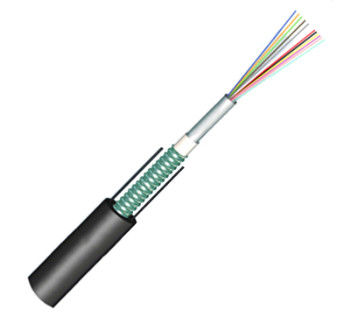

For the GYXS optical cable, the single mode or multimode optical fibers are put into the central tube made of high modulus polyester. The tube is full of the waterproof filling compound. It is armoured by a circle of steel wire which provide an excellent pressure resistant performance. Outside is wrapped longitudinally by a layer of waterproof tape and steel tape.


Characteristics of product:
Good mechanical and temperature performance
High strength loose tube that is hydrolysis resistant.
Special tube filling compound ensure a critical protection of fiber.
Crush resistance and flexibility.
PSP enhancing moisture-proof

Tow parallel steel wires ensure tensile strength
Small diameter, light weight and easily installation

Product Applications:
Long-distance communication.
It's suitable for duct, especially for the places with high requirement for moisture-proof.
Installation: Duct, direct-buried Or self-supporting aerial



ModelDescriptionApplications
GYXSMetallic strength member,Central tube,Dry-type,Steel-PE outer jackettunnel



Tensile Strength (N)Crush Resistance (N/100mm)Bned Radius
(mm)
Working Temperature(℃)Max. attenuation (dB/km)fibersOD(mm)weight kg/km
Long termshort termLong termshort termStatic(D)Dynamic (D)Min.TAMax.TB1310μm1550μm
6001500300100010 D20 D-40℃+60℃≤0.36≤0.222~2416.0~18.0250~290



CategoryDescriptionSpecifications
G.652D
Optical SpecificationsAttenuation@1310nm≤0.36dB/km
@1550nm≤0.22dB/km
Attenuation discontinuity≤0.05 dB
Attenuation vs. Wavelength@1285~1330nm≤0.05 dB/km
@1525~1575nm≤0.05 dB/km
Zero Dispersion Wavelength1300~1324nm
Zero Dispersion Slope≤0.092ps/(nm2.km)
Dispersion@1310nm≤3.5 ps/nm.km
@1550nm≤18 ps/nm.km
Polarization Mode Dispersion(PMD)≤0.2ps/km1/2
Cable Cutoff Wavelength(λcc)≤1260nm
Effective Group Index of Refraction@1310nm1.4675
@1550nm1.4681
Macro bend loss (30mm radius,100turns) 1625nm≤0.1 dB
Geometric
Specifications
Mode Field Diameter@1310nm9.2±0.6μm
@1550nm10.4±0.8μm
Cladding Diameter125±1μm
Cladding Non-Circularity≤1.0%
Coating Diameter245±7μm
Coating/Cladding Concentricity Error≤8μm
Core/Cladding Concentricity Error≤0.8μm
Mechanical
Specifications
Proof Test level≥1.0%
Fiber Curl Radius≥4.0m
Peak Coating Strip Force1.3~8.9N


FAQ
1. Are you the real manufacturer?
Yes. We are the real manufacturer with 18 years' history.

2. What is your fiber brand ?
Corning, SEI, YOFC, FiberHome, etc

3. Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.

4.What is your warranty period?
25 years for fiber optic cable

5. Which kind of certification you have ?
ISO9001, SGS, 3C Anatel.

6. What is your delivery time?
Usually within 2-3 working days

7. What about your annual production capacity?
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.

8. What is your payment way?
T/T, L/C, Western Union and Paypal.

9. Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.

10. Can you supply your cable test value form?
-Yes. After finishing production , we can supply if you ask.

11. Do your factory inspect every roll of cables?
-Yes. we factory do 100% inspection per order.
