24 Core PE Sheath Direct Buried Fiber Optic Cable GYFTZY53

24 Core PE Sheath Direct Buried Fiber Optic Cable GYFTZY53

24Core Direct Buried Fiber Optic Cable

GYFTZY53 Fiber Optic Cable

Place of Origin:

China

Brand Name:

YUANTONG

Certification:

ROSH ,TLC, CCC, ISO

Model Number:

GYFTZY53 24 Core

Contact Us

Request A Quote
Product Details
Product Name:
24 Core PE Sheath Steel Tape Armored Flame-Retardant Layer Filling Loose Tube Outdoor Fiber Optic Cable GYFTZY53
Fiber Count:
24 Core
Fiber Type:
G652D
Cable Sheath:
PE Sheath
Cable Color:
Black
Strength Member:
Non-metallic Strength Member
Cable Use:
Direct Burial
Loose Tube:
PBT
Payment & Shipping Terms
Minimum Order Quantity
20KM
Price
Negotiable
Packaging Details
Wooden Drum
Delivery Time
7 days
Payment Terms
L/C, D/P, T/T, Western Union
Supply Ability
500km per week
Product Description

24 Core PE Sheath Steel Tape Armored Flame-Retardant Layer Filling Loose Tube Outdoor Fiber Optic Cable GYFTZY53



Description:

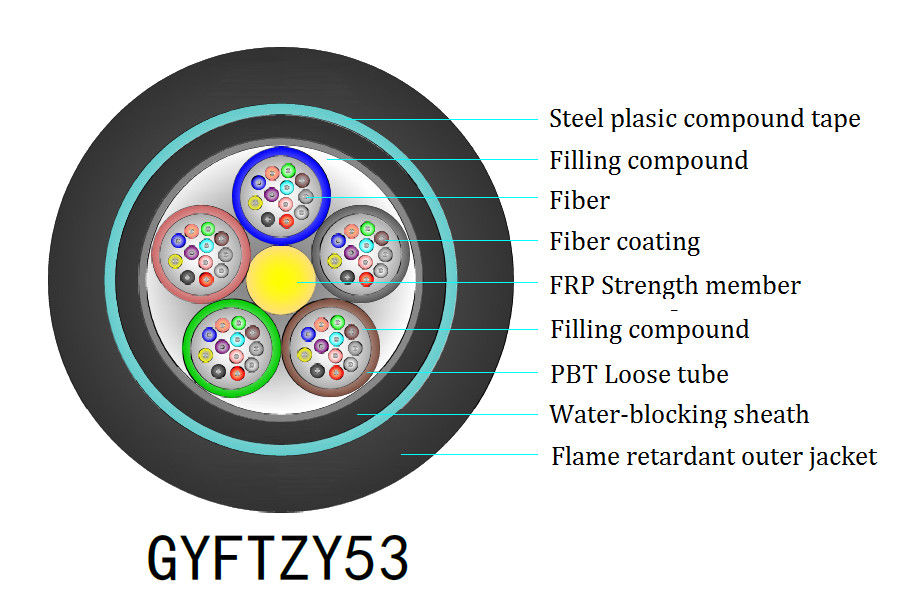

The fibers, 125μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube waterblocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The cable is completed with a polyethylene (PE) sheath.

Features:
1. Low dispersion and attenuation.
2. Proper design, precise control for fiber excess length and distinct stranding process render the cable excellent mechanical and environmental characteristics.
3. Double sheath structure makes cable have nice moisture resistance and crush resistance performance.
4. Small cable diameter, light cable weight, easily to install.


Application:
1. Adopted to Outdoor distribution.
2. Suitable for aerial duct and buried method.
3. Long distance and local area network communication.



ModelDescriptionApplications
GYFTZY53GYFTZY53 24 Core outdoor fiber optic cable,Non-metallic strength member,layer filling loose tube,PE sheath,Steel tape armored,Flame-retardantOverhead&Direct burial&Strong electromagnetic area,LZSH



Tensile Strength (N)Crush Resistance (N/100mm)Bned Radius
(mm)
Working Temperature(℃)Max. attenuation (dB/km)
Long termshort termLong termshort termStatic(D)Dynamic (D)Min.TAMax.TB1310μm1550μm
100030001000300012.5 D25 D-40℃+60℃≤0.36≤0.22



CategoryDescriptionSpecifications
G.652D
Optical SpecificationsAttenuation@1310nm≤0.36dB/km
@1550nm≤0.22dB/km
Attenuation discontinuity≤0.05 dB
Attenuation vs. Wavelength@1285~1330nm≤0.05 dB/km
@1525~1575nm≤0.05 dB/km
Zero Dispersion Wavelength1300~1324nm
Zero Dispersion Slope≤0.092ps/(nm2.km)
Dispersion@1310nm≤3.5 ps/nm.km
@1550nm≤18 ps/nm.km
Polarization Mode Dispersion(PMD)≤0.2ps/km1/2
Cable Cutoff Wavelength(λcc)≤1260nm
Effective Group Index of Refraction@1310nm1.4675
@1550nm1.4681
Macro bend loss (30mm radius,100turns) 1625nm≤0.1 dB
Geometric
Specifications
Mode Field Diameter@1310nm9.2±0.6μm
@1550nm10.4±0.8μm
Cladding Diameter125±1μm
Cladding Non-Circularity≤1.0%
Coating Diameter245±7μm
Coating/Cladding Concentricity Error≤8μm
Core/Cladding Concentricity Error≤0.8μm
Mechanical
Specifications
Proof Test level≥1.0%
Fiber Curl Radius≥4.0m
Peak Coating Strip Force1.3~8.9N


FAQ
1. Are you the real manufacturer?
Yes. We are the real manufacturer with 18 years' history.

2. What is your fiber brand ?
Corning, SEI, YOFC, FiberHome, etc

3. Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.

4.What is your warranty period?
25 years for fiber optic cable

5. Which kind of certification you have ?
ISO9001, SGS, 3C Anatel.

6. What is your delivery time?
Usually within 2-3 working days

7. What about your annual production capacity?
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.

8. What is your payment way?
T/T, L/C, Western Union and Paypal.

9. Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.

10. Can you supply your cable test value form?
-Yes. After finishing production , we can supply if you ask.

11. Do your factory inspect every roll of cables?
-Yes. we factory do 100% inspection per order.

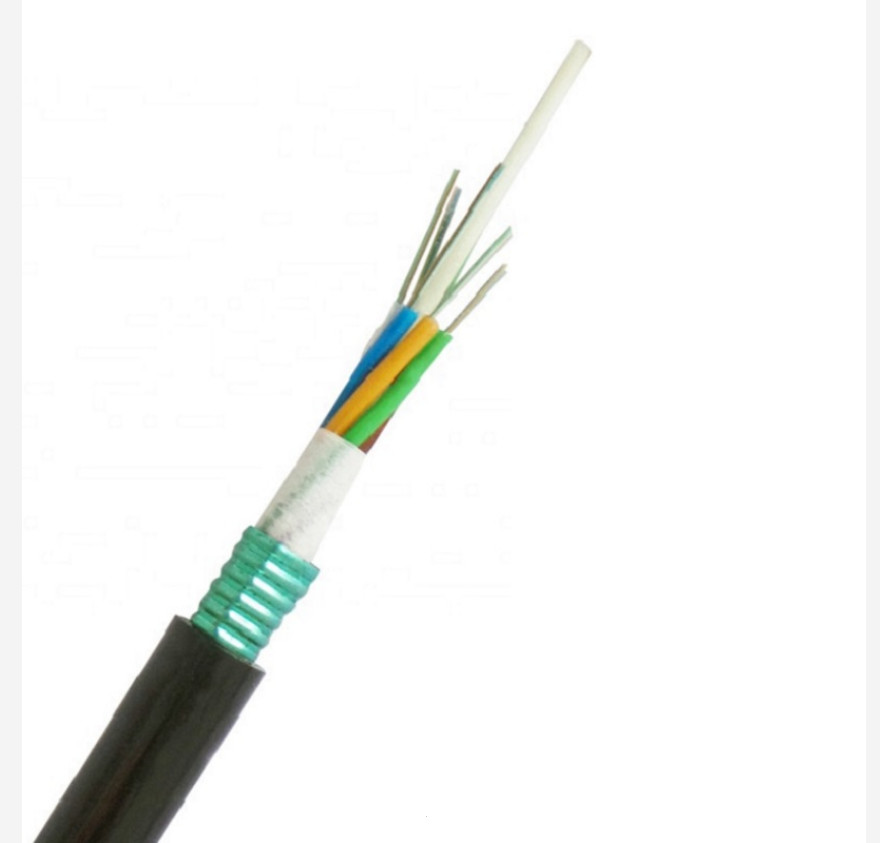

24 Core PE Sheath Direct Buried Fiber Optic Cable GYFTZY53 0

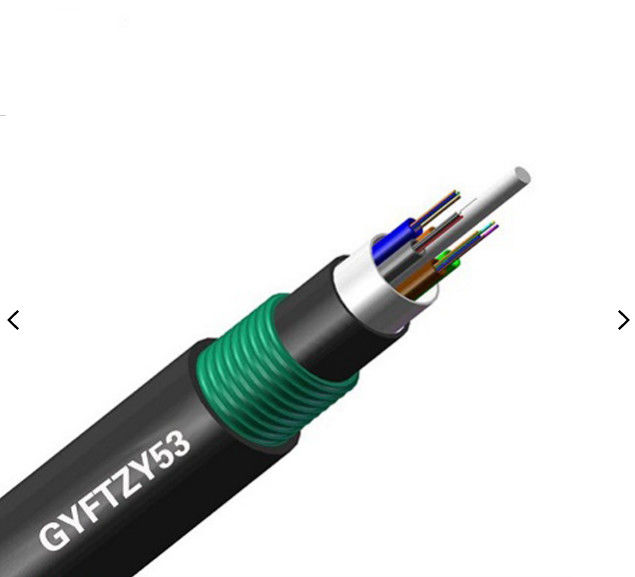

24 Core PE Sheath Direct Buried Fiber Optic Cable GYFTZY53 1
