GYXTW53 24 Core
Contact Us

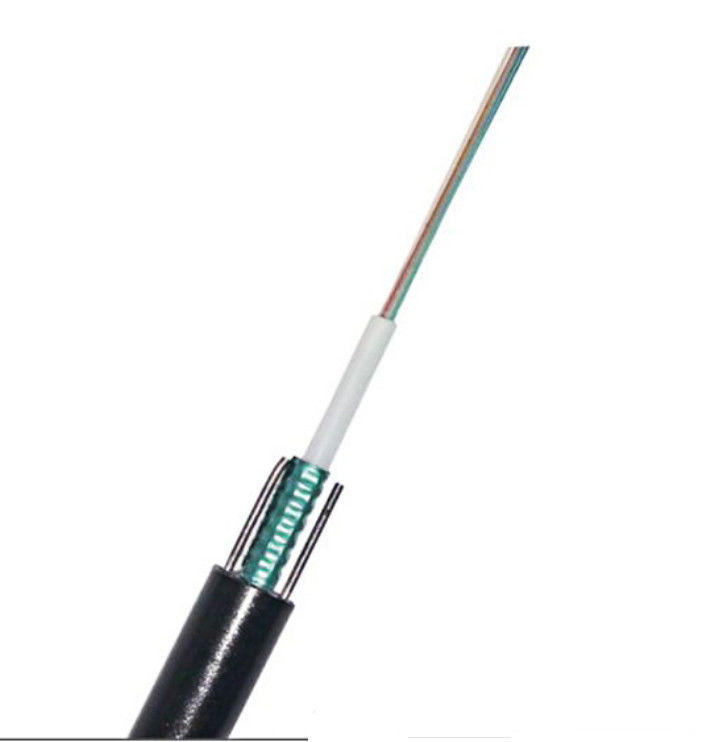

24 Core Entrained Parallel Steel Wire Longitudinal Corrugated Steel Tape Armored Fiber Optic Cable GYXTW53
Description:

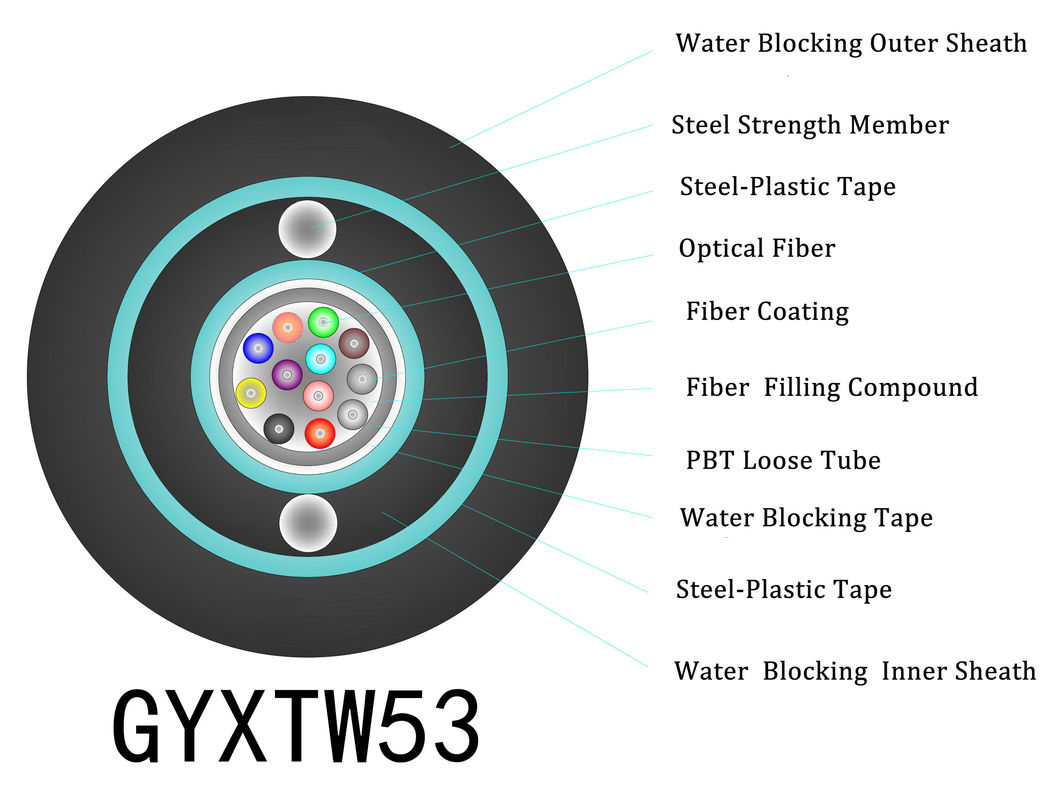

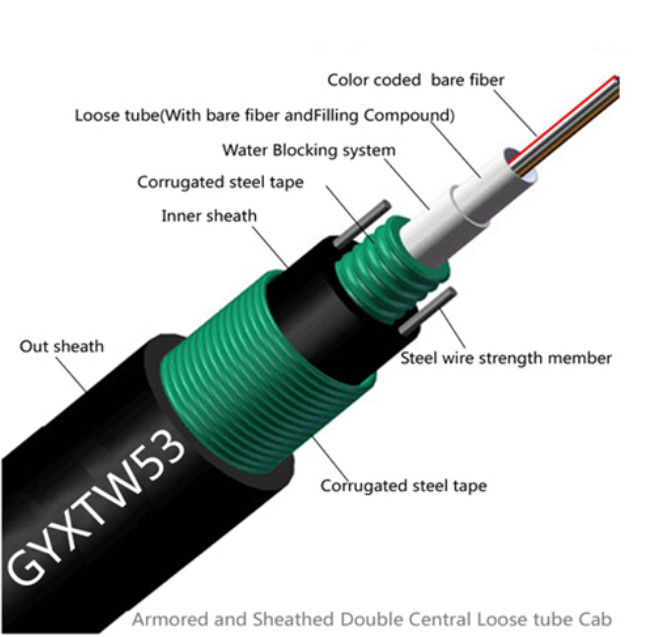

In the GYXTW53 cable, single-mode/multimode fibers are positioned in the loose tubes, the tubes are filled with water blocking filling compound.Tubes and fillers are stranded around the strength member into a circular cable core. Then the cable is completed with a PE sheath. Which is filled with the filling compound to protect it. After PSP is applied over the inner sheath, the cable is completed with a PE outer sheath.
Characterisics:
1. Excellent mechanical and temperature performance guaranteed by the accurate excess fiber length.
2. Critical protection to fibers.
3. Excellent crush resistance and flexibility.
4. The following measures are taken to ensure the water blocking performance of the cable:
- Single steel wire used as the central strength member
- Special water-blocking filling compound in the loose tube.
PSP moisture barrier
- 100% cable core filling and water-blocking material
Model | Description | Applications |
GYXTW53 | 24 Core Metallic strength member,Central tube filling type,Entrained parallel steel wire,Steel-PE sheath,Longitudinal corrugated steel tape armored,PE outer jacket | Overhead laying&Pipeline laying,Direct burial |
Tensile Strength (N) | Crush Resistance (N/100mm) | Bned Radius (mm) |
Working Temperature(℃) | Max. attenuation (dB/km) | fibers | OD(mm) | weight kg/km | |||||
Long term | short term | Long term | short term | Static(D) | Dynamic (D) | Min.TA | Max.TB | 1310μm | 1550μm | |||
600 | 1500 | 300 | 1000 | 12.5 D | 25 D | -40℃ | +60℃ | ≤0.36 | ≤0.22 | 2~24 | 11.0~15.0 | 125~155 |
Category | Description | Specifications | |
G.652D | |||
Optical Specifications | Attenuation | @1310nm | ≤0.36dB/km |
@1550nm | ≤0.22dB/km | ||
Attenuation discontinuity | ≤0.05 dB | ||
Attenuation vs. Wavelength | @1285~1330nm | ≤0.05 dB/km | |
@1525~1575nm | ≤0.05 dB/km | ||
Zero Dispersion Wavelength | 1300~1324nm | ||
Zero Dispersion Slope | ≤0.092ps/(nm2.km) | ||
Dispersion | @1310nm | ≤3.5 ps/nm.km | |
@1550nm | ≤18 ps/nm.km | ||
Polarization Mode Dispersion(PMD) | ≤0.2ps/km1/2 | ||
Cable Cutoff Wavelength(λcc) | ≤1260nm | ||
Effective Group Index of Refraction | @1310nm | 1.4675 | |
@1550nm | 1.4681 | ||
Macro bend loss (30mm radius,100turns) 1625nm | ≤0.1 dB | ||
Geometric Specifications |
Mode Field Diameter | @1310nm | 9.2±0.6μm |
@1550nm | 10.4±0.8μm | ||
Cladding Diameter | 125±1μm | ||
Cladding Non-Circularity | ≤1.0% | ||
Coating Diameter | 245±7μm | ||
Coating/Cladding Concentricity Error | ≤8μm | ||
Core/Cladding Concentricity Error | ≤0.8μm | ||
Mechanical Specifications |
Proof Test level | ≥1.0% | |
Fiber Curl Radius | ≥4.0m | ||
Peak Coating Strip Force | 1.3~8.9N |
