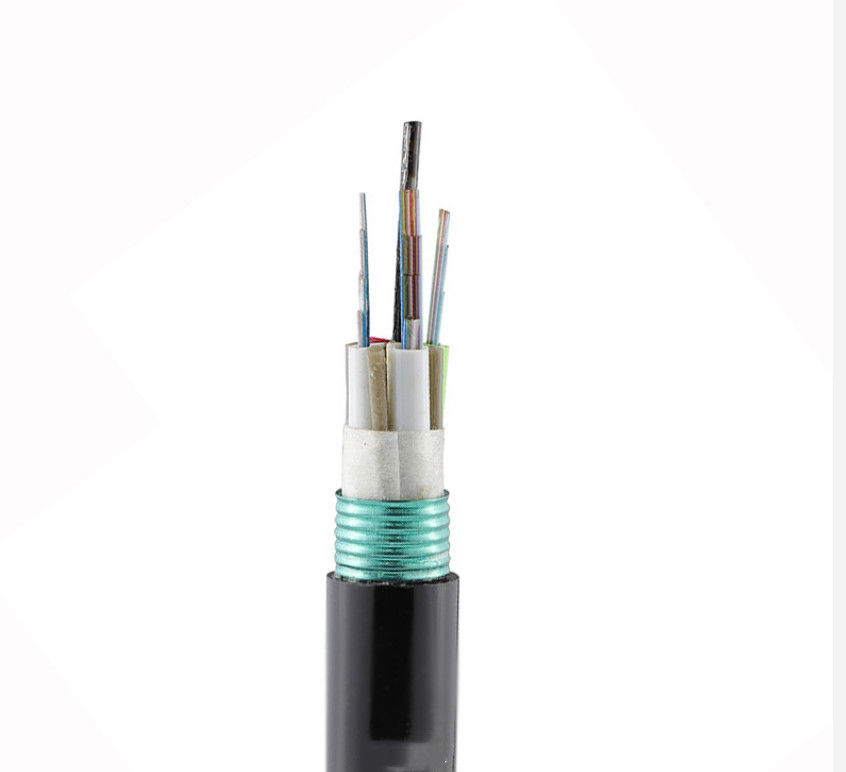

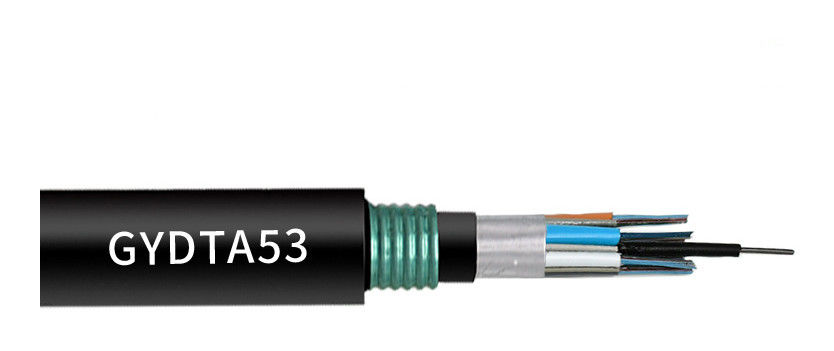

Ribbon Loose Tube PBT Direct Buried Fiber Optic Cable 24 Core GYDTA53

Ribbon Loose Tube PBT Direct Buried Fiber Optic Cable 24 Core GYDTA53

GYDTA53 Buried Fiber Optic Cable

PBT Direct Buried Fiber Optic Cable

Place of Origin:

China

Brand Name:

YUANTONG

Certification:

ROSH ,TLC, CCC, ISO

Model Number:

GYDTA53 24 Core

Contact Us

Request A Quote
Product Details
Product Name:
24 Core Fiber Ribbon Loose Tube Aluminium-PE Sheath Longitudinal Corrugated Steel Tape Armored Fiber Optic Cable GYDTA53
Fiber Count:
24 Core
Fiber Type:
G652D
Cable Sheath:
Aluminium-PE Sheath
Cable Color:
Black
Strength Member:
Metallic Strength Member
Cable Use:
Direct Burial
Loose Tube:
PBT
Payment & Shipping Terms
Minimum Order Quantity
20KM
Price
Negotiable
Packaging Details
Wooden Drum
Delivery Time
7 days
Payment Terms
L/C, D/P, T/T, Western Union
Supply Ability
500km per week
Product Description

24 Core Fiber Ribbon Loose Tube Aluminium-PE Sheath Longitudinal Corrugated Steel Tape Armored Fiber Optic Cable GYDTA53



Description:

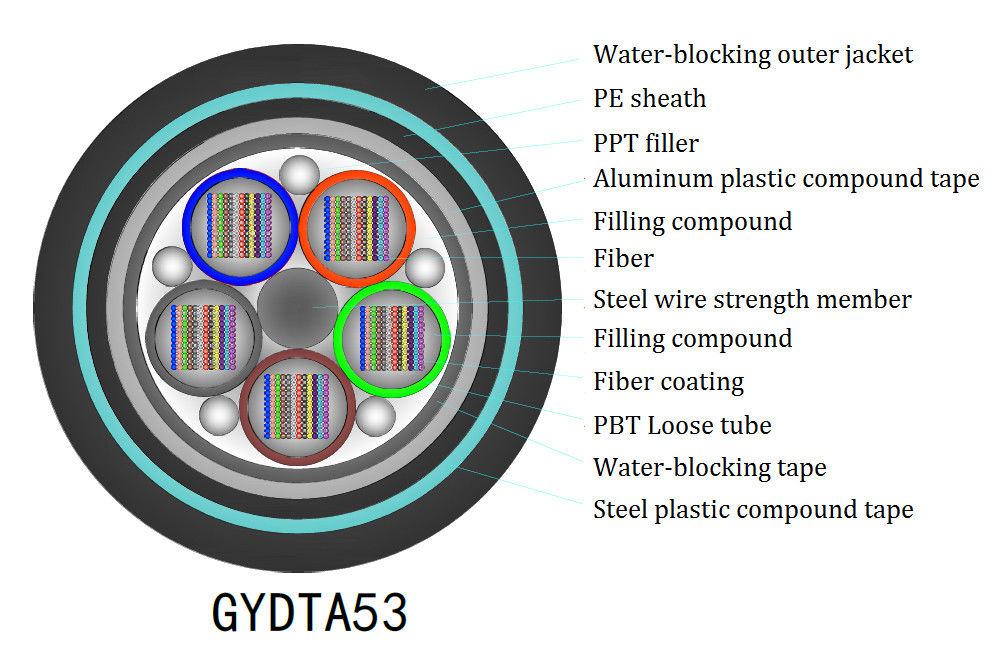

The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. Two parallel steel wires are placed at the two sides of the steel tape. The cable is completed with a polyethylene (PE) sheath.

CHARACTERISTICS:

Good mechanical and temperature performance;
High strength loose tube that is hydrolysis resistant;
Special tube filling compound ensure a critical protection of fiber;
Special designed compact structure is good at preventing loose tubes from shrinking;
Crush resistance and flexibility;
PE sheath protects cable from ultraviolet radiation;
The following measures are taken to ensure the cable water tight: Steel wire used as central strength member; Loose tube filling compound; 100% cable core filling; PSP enhancing moisture-proof.

Model Description Applications
GYDTA53  24 Core Metallic strength membre,Fiber ribbon loose tube,Filling type,Aluminium-PE sheath,Longitudinal corrugated steel tape armored,PE outer jacket Direct burial



Tensile Strength (N) Crush Resistance (N/100mm) Bned Radius
(mm)
Working Temperature(℃) Max. attenuation (dB/km)
Long term short term Long term short term Static(D) Dynamic (D) Min.TA Max.TB 1310μm 1550μm
1000 3000 1000 3000 12.5 D 25 D -40℃ +60℃ ≤0.36 ≤0.22



Category Description Specifications
G.652D
Optical Specifications Attenuation @1310nm ≤0.36dB/km
@1550nm ≤0.22dB/km
Attenuation discontinuity ≤0.05 dB
Attenuation vs. Wavelength @1285~1330nm ≤0.05 dB/km
@1525~1575nm ≤0.05 dB/km
Zero Dispersion Wavelength 1300~1324nm
Zero Dispersion Slope ≤0.092ps/(nm2.km)
Dispersion @1310nm ≤3.5 ps/nm.km
@1550nm ≤18 ps/nm.km
Polarization Mode Dispersion(PMD) ≤0.2ps/km1/2
Cable Cutoff Wavelength(λcc) ≤1260nm
Effective Group Index of Refraction @1310nm 1.4675
@1550nm 1.4681
Macro bend loss (30mm radius,100turns) 1625nm ≤0.1 dB
Geometric
Specifications
Mode Field Diameter @1310nm 9.2±0.6μm
@1550nm 10.4±0.8μm
Cladding Diameter 125±1μm
Cladding Non-Circularity ≤1.0%
Coating Diameter 245±7μm
Coating/Cladding Concentricity Error ≤8μm
Core/Cladding Concentricity Error ≤0.8μm
Mechanical
Specifications
Proof Test level ≥1.0%
Fiber Curl Radius ≥4.0m
Peak Coating Strip Force 1.3~8.9N


FAQ
1. Are you the real manufacturer?
Yes. We are the real manufacturer with 18 years' history.

2. What is your fiber brand ?
Corning, SEI, YOFC, FiberHome, etc

3. Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.

4.What is your warranty period?
25 years for fiber optic cable

5. Which kind of certification you have ?
ISO9001, SGS, 3C Anatel.

6. What is your delivery time?
Usually within 2-3 working days

7. What about your annual production capacity?
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.

8. What is your payment way?
T/T, L/C, Western Union and Paypal.

9. Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.

10. Can you supply your cable test value form?
-Yes. After finishing production , we can supply if you ask.

11. Do your factory inspect every roll of cables?
-Yes. we factory do 100% inspection per order.
