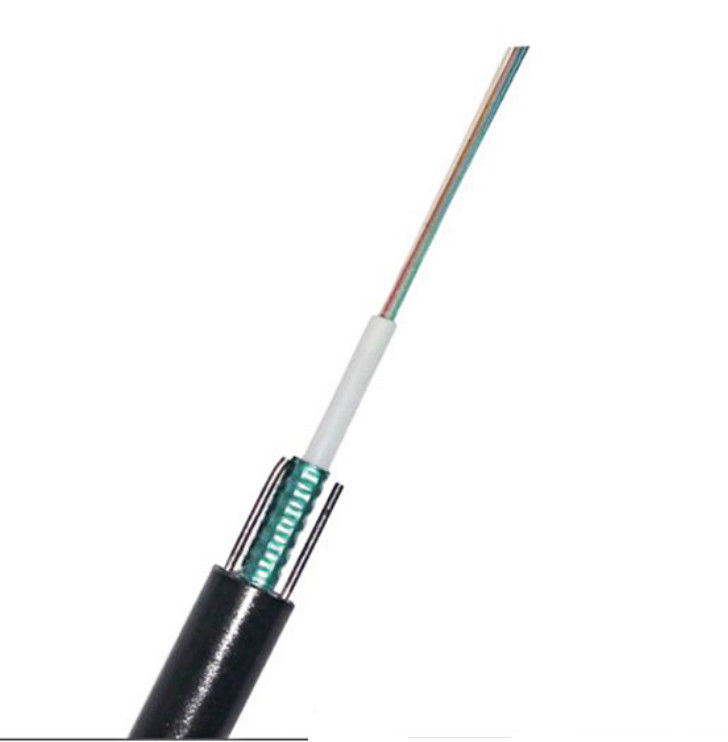

ROSH Direct Buried Fiber Optic Cable 48 Core Single Mode
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Product Name||48 Core Entrained Parallel Steel Wire Longitudinal Corrugated Steel Tape Armored Fiber Optic Cable GYXTW53||Fiber Count||48 Core|
|Fiber Type||G652D||Cable Sheath||Steel-PE Sheath|
|Cable Color||Black||Strength Member||Metallic Strength Member|
|Cable Use||Direct Burial||Loose Tube||PBT|
ROSH Direct Buried Fiber Optic Cable,
48Core Buried Fiber Optic Cable
48 Core Entrained Parallel Steel Wire Longitudinal Corrugated Steel Tape Armored Fiber Optic Cable GYXTW53

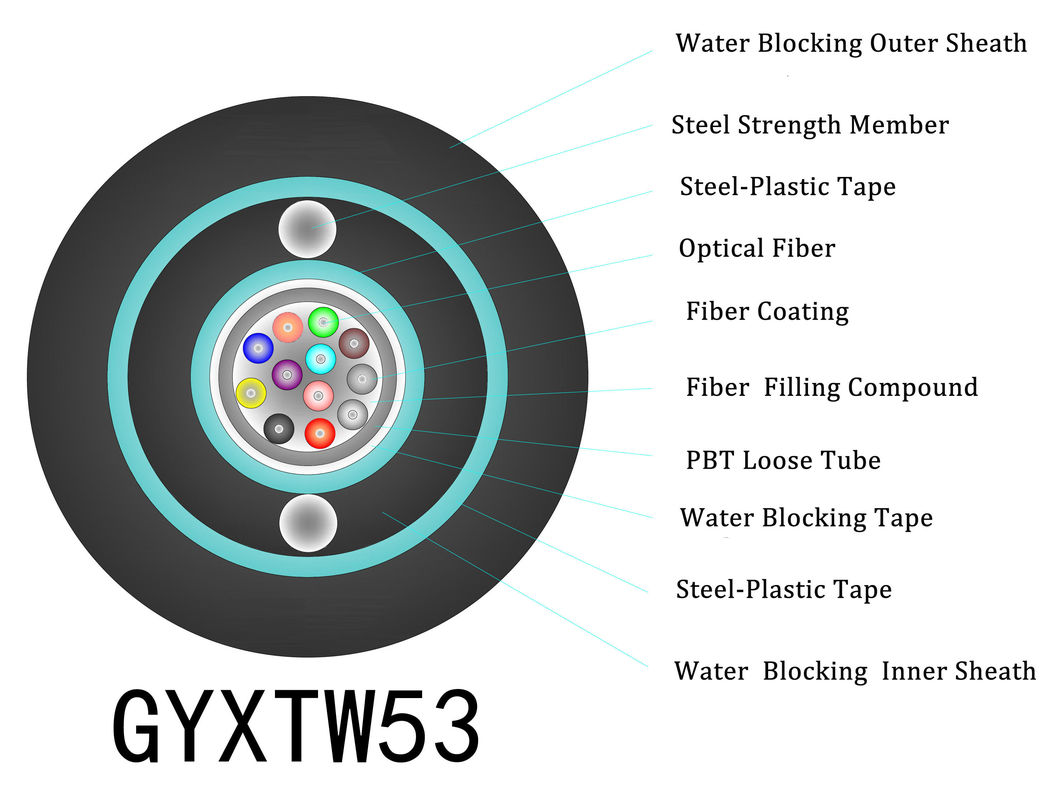

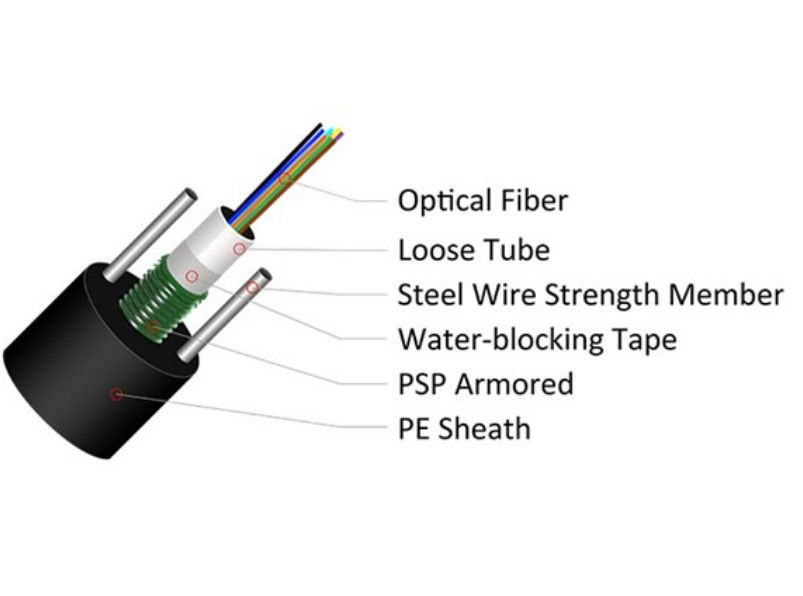

In the GYXTW53 cable, single-mode/multimode fibers are positioned in the loose tubes, the tubes are filled with water blocking filling compound.Tubes and fillers are stranded around the strength member into a circular cable core. Then the cable is completed with a PE sheath. Which is filled with the filling compound to protect it. After PSP is applied over the inner sheath, the cable is completed with a PE outer sheath.
1. Excellent mechanical and temperature performance guaranteed by the accurate excess fiber length.
2. Critical protection to fibers.
3. Excellent crush resistance and flexibility.
4. The following measures are taken to ensure the water blocking performance of the cable:
- Single steel wire used as the central strength member
- Special water-blocking filling compound in the loose tube.
PSP moisture barrier
- 100% cable core filling and water-blocking material
|GYXTW53||48 Core Metallic strength member,Central tube filling type,Entrained parallel steel wire,Steel-PE sheath,Longitudinal corrugated steel tape armored,PE outer jacket||Overhead laying&Pipeline laying,Direct burial|
|Tensile Strength (N)||Crush Resistance (N/100mm)||Bned Radius
|Working Temperature(℃)||Max. attenuation (dB/km)||fibers||OD(mm)||weight kg/km|
|Long term||short term||Long term||short term||Static(D)||Dynamic (D)||Min.TA||Max.TB||1310μm||1550μm|
|600||1500||300||1000||12.5 D||25 D||-40℃||+60℃||≤0.36||≤0.22||2～24||11.0～15.0||125～155|
|Attenuation discontinuity||≤0.05 dB|
|Attenuation vs. Wavelength||@1285~1330nm||≤0.05 dB/km|
|Zero Dispersion Wavelength||1300~1324nm|
|Zero Dispersion Slope||≤0.092ps/(nm2.km)|
|Polarization Mode Dispersion(PMD)||≤0.2ps/km1/2|
|Cable Cutoff Wavelength(λcc)||≤1260nm|
|Effective Group Index of Refraction||@1310nm||1.4675|
|Macro bend loss (30mm radius,100turns) 1625nm||≤0.1 dB|
|Mode Field Diameter||@1310nm||9.2±0.6μm|
|Coating/Cladding Concentricity Error||≤8μm|
|Core/Cladding Concentricity Error||≤0.8μm|
|Proof Test level||≥1.0%|
|Fiber Curl Radius||≥4.0m|
|Peak Coating Strip Force||1.3~8.9N|
1. Are you the real manufacturer?
Yes. We are the real manufacturer with 18 years' history.
2. What is your fiber brand ?
Corning, SEI, YOFC, FiberHome, etc
3. Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.
4.What is your warranty period?
25 years for fiber optic cable
5. Which kind of certification you have ?
ISO9001, SGS, 3C Anatel.
6. What is your delivery time?
Usually within 2-3 working days
7. What about your annual production capacity?
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.
8. What is your payment way?
T/T, L/C, Western Union and Paypal.
9. Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.
10. Can you supply your cable test value form?
-Yes. After finishing production , we can supply if you ask.
11. Do your factory inspect every roll of cables?
-Yes. we factory do 100% inspection per order.
