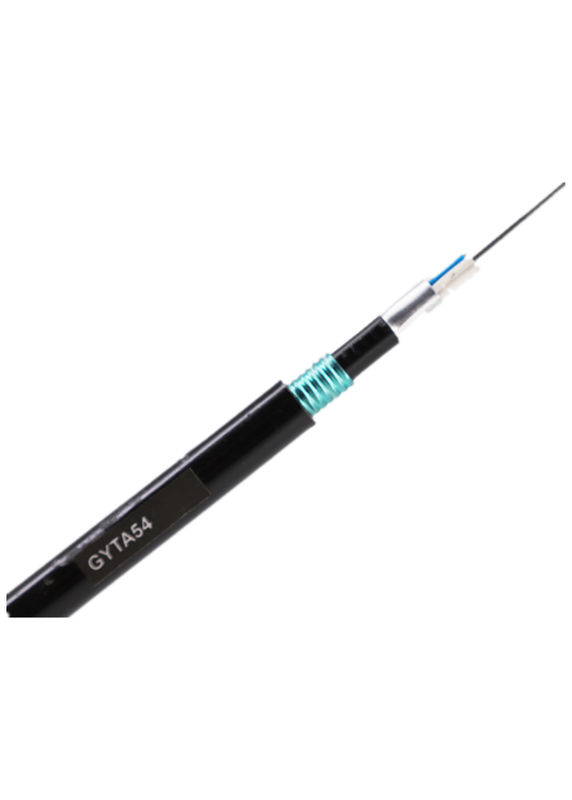

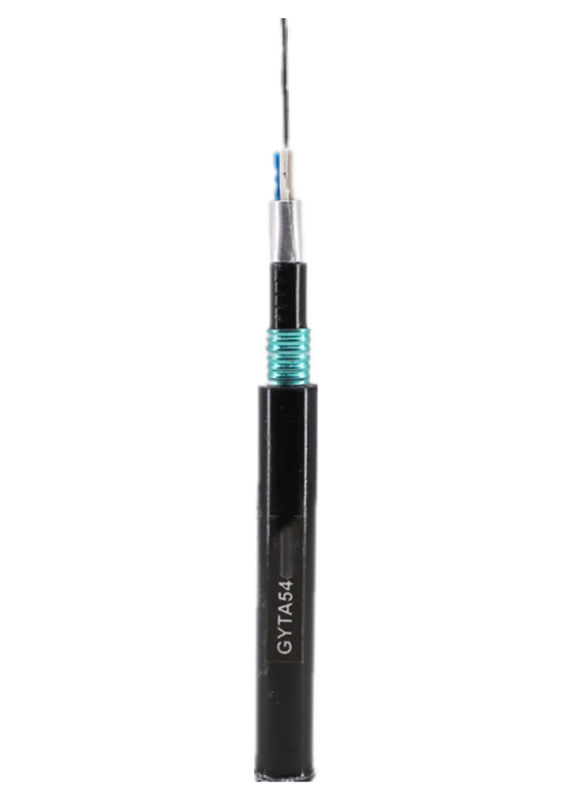

48 Core Direct Burial Single Mode Fiber Cable , GYTA54 Outside Plant Fiber Optic Cable
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Product Name||48 Core Aluminium PE Sheath Corrugated Steel Tape Armored Anti-Termite Fiber Optic Cable GYTA54||Fiber Count||48 Core|
|Fiber Type||G652D||Cable Sheath||Aluminium PE Sheath|
|Cable Color||Black||Strength Member||Metallic Strength Member|
|Cable Use||Direct Burial||Loose Tube||PBT|
direct burial single mode fiber cable,
GYTA54 outside plant fiber optic cable,
48Core outside plant fiber optic cable
48 Core Aluminium PE Sheath Corrugated Steel Tape Armored Anti-Termite Fiber Optic Cable GYTA54

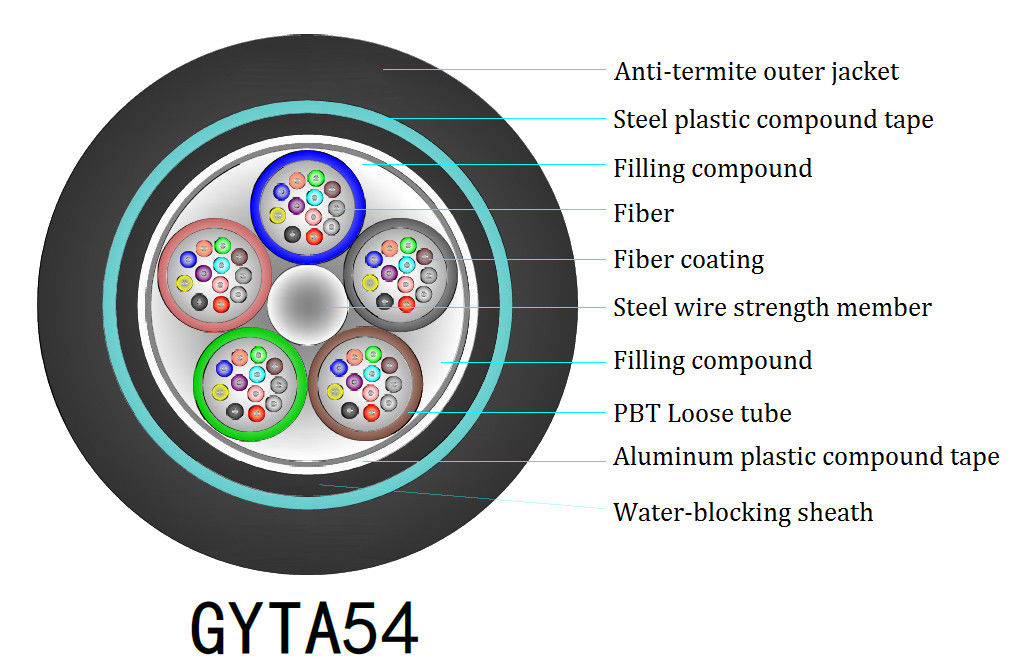

|GYTA54||GYTA54 48 Core outdoor fiber optic cable,Metallic strength member,layer filling loose tube, Aluminium PE sheath, Corrugated steel tape armored,PE outer sheath, Anti-termite||Pipeline laying&Direct burial,Anti-termite|
|Tensile Strength (N)||Crush Resistance (N/100mm)||Bned Radius
|Working Temperature(℃)||Max. attenuation (dB/km)|
|Long term||short term||Long term||short term||Static(D)||Dynamic (D)||Min.TA||Max.TB||1310μm||1550μm|
|1000||3000||1000||3000||12.5 D||25 D||-40℃||+60℃||≤0.36||≤0.22|
|Attenuation discontinuity||≤0.05 dB|
|Attenuation vs. Wavelength||@1285~1330nm||≤0.05 dB/km|
|Zero Dispersion Wavelength||1300~1324nm|
|Zero Dispersion Slope||≤0.092ps/(nm2.km)|
|Polarization Mode Dispersion(PMD)||≤0.2ps/km1/2|
|Cable Cutoff Wavelength(λcc)||≤1260nm|
|Effective Group Index of Refraction||@1310nm||1.4675|
|Macro bend loss (30mm radius,100turns) 1625nm||≤0.1 dB|
|Mode Field Diameter||@1310nm||9.2±0.6μm|
|Coating/Cladding Concentricity Error||≤8μm|
|Core/Cladding Concentricity Error||≤0.8μm|
|Proof Test level||≥1.0%|
|Fiber Curl Radius||≥4.0m|
|Peak Coating Strip Force||1.3~8.9N|
1. Are you the real manufacturer?
Yes. We are the real manufacturer with 18 years' history.
2. What is your fiber brand ?
Corning, SEI, YOFC, FiberHome, etc
3. Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.
4.What is your warranty period?
25 years for fiber optic cable
5. Which kind of certification you have ?
ISO9001, SGS, 3C Anatel.
6. What is your delivery time?
Usually within 2-3 working days
7. What about your annual production capacity?
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.
8. What is your payment way?
T/T, L/C, Western Union and Paypal.
9. Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.
10. Can you supply your cable test value form?
-Yes. After finishing production , we can supply if you ask.
11. Do your factory inspect every roll of cables?
-Yes. we factory do 100% inspection per order.
