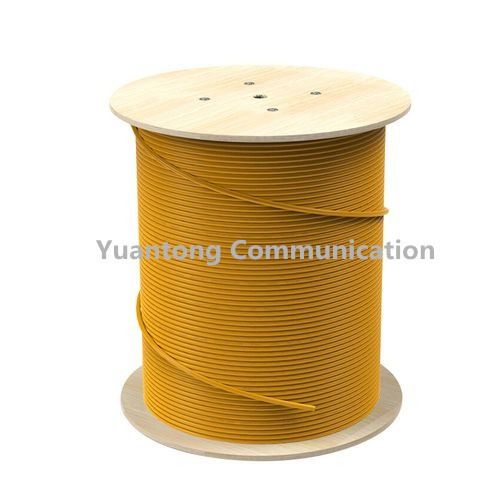

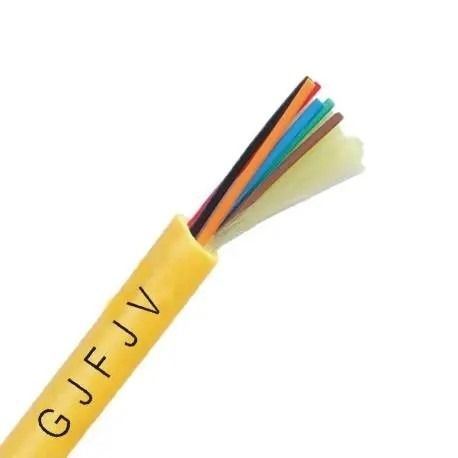

Round Yellow Color PVC Lszh GJFJV High Dense Fiber Packed 4 Core Indoor Fiber Optic Cable
Description:

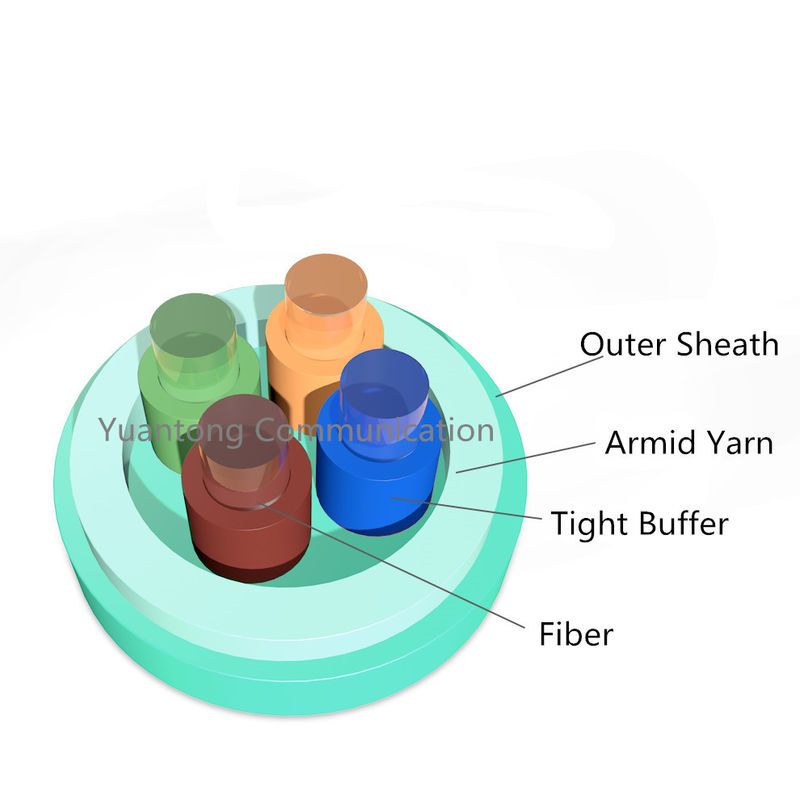

Indoor Distribution Tight Buffer Optical Cable is made by evenly applying strands of Aramid yarns or High strength glass yarns as the strength member over 900μm or600μm tight buffer fibers and then is completed with PVC(LSZH)jacket.
Application:
1.Adopted to indoor distribution..
2.As pigtail of communication equipment.
3.Suitable for communication equipment served.
4.Can be installed conveniently and perated simply.
Characteristics:
1.Hight strength kevlar yarn member.
2.High quality tight buffered or loose tube.
3.Soft and easy to strip.
4.Round construction.
Technical Parameters:
|
Fiber Count |
Cable |
Cable Weight |
Tensile Strength (N) |
Crush Strength (N/100mm) |
||
|
Long Term |
Short Term |
Long Term |
Short Term |
|||
| 4 | 5.0 | 19 | 130 | 440 | 200 | 1000 |
| 6 | 5.2 | 23 | 130 | 440 | 200 | 1000 |
| 8 | 5.5 | 26 | 130 | 440 | 200 | 1000 |
| 12 | 6.5 | 36.5 | 200 | 660 | 200 | 1000 |
| 16 | 7.5 | 44.5 | 200 | 660 | 200 | 1000 |
| 24 | 8.2 | 54.5 | 200 | 660 | 200 | 1000 |
| 36 | 9.0 | 72 | 200 | 660 | 200 | 1000 |
| 48 | 10.5 | 90 | 200 | 660 | 200 | 1000 |
| Note | All values above are for reference only, are subject to change without notice. The minimum bend radius (static) is 5D when G657 fiber is used. | |||||
Optical Characteristics:
| Fiber Sort | Multimode | G.651 | A1a:50/125 | Graded-index fiber |
| A1b:62.5/125 | ||||
| Singlemode | G.652(A,B,C) | B1.1:Conventional fiber | ||
| G.652D | B2: Zero dispersion shifted | |||
| G.655 | B1.2 :Cut-off wavelength shifted | |||
| G.657(A1,A2 ,B3) | B4: Main technical data for positive | |||
| dispersion shifted single-mode fiber | ||||
Company Indroduce:
Sichuan Yuantong Communication Co., Ltd, a national key high-tech Enterprise,which is located in the beautiful "land of abundance" - Chengdu, Southwest Airport Economic Development Zone, is next to Shuangliu International airport and airway expressway.
Our company is committed to R&D, manufacture all kinds of fiber optic cable including indoor&outdoor fiber optic cable, power optical fiber cable, submarine optical cable and special optical cable etc.
Yuantong has more than 200 staffs, of which 20% are senior engineers ,70% are mid-level empolyees.
Company has got many national approval certificates, such as ISO9001 quality management, ISO14001 environmental management, health management and TLC.
A complete set of Advanced test equipments ensure each of the links from raw materials to perfect products is effectively controlled.
Also we have built a long-term strategic cooperative relationship with a number of domestic and oversea telecom operators. Products sold widely to America, Europe, Middle East, Africa, Southeast Asia, and other continents, annual sales reach$300 million, the production scale is in the forefront of the field.
Our company persist the quality policy "fast, efficient, high-quality" and the quality target
"be first in China, do best in the world", trying to make outstanding contribution for the whole world's communication development .
Certificate:
Exhibition home and abroad
FAQ
1. Are you the real manufacturer?
Yes. We are the real manufacturer with 18 years' history.
2. What is your fiber brand ?
Corning, SEI, YOFC, FiberHome, etc
3. Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.
4.What is your warranty period?
25 years for fiber optic cable
5. Which kind of certification you have ?
ISO9001, SGS, 3C Anatel.
6. What is your delivery time?
Usually within 2-3 working days
7. What about your annual production capacity?
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.
8. What is your payment way?
T/T, L/C, Western Union and Paypal.
9. Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.
10. Can you supply your cable test value form?
-Yes. After finishing production , we can supply if you ask.
11. Do your factory inspect every roll of cables?
-Yes. we factory do 100% inspection per order.
