Aramid Yarn Stranded Loose Tube 100m ADSS 24 Core Fiber Optic Cable

Aramid Yarn Stranded Loose Tube 100m ADSS 24 Core Fiber Optic Cable

Aramid Yarn stranded loose tube

24core stranded loose tube

ADSS 24 core fiber optic cable

Place of Origin:

China

Brand Name:

YUANTONG

Certification:

ROSH ,TLC, CCC, ISO

Model Number:

ADSS-24

Contact Us

Request A Quote
Product Details
Product Name:
24 Core Aramid Yarn Single Mode Self Supported ADSS Fiber Optical Cable
Fiber Count:
24 Core
Fiber Type:
G652D
Cable Sheath:
PE
Cable Color:
Black
Strength Member:
Armid Yarn
Cable Use:
Aerial
Sheath:
Single Sheath
Payment & Shipping Terms
Minimum Order Quantity
20KM
Price
Negotiable
Packaging Details
Wooden Drum
Delivery Time
7 days
Payment Terms
L/C, D/P, T/T, Western Union
Supply Ability
500km per week
Product Description
24 Core Aramid Yarn Single Mode Self Supported ADSS Fiber Optical Cable


24 core fiber optic cable details:

The cable core is protected with jelly to prevent water intrusion and migration, and cover with a black polyethylene out jacket. Two embedded FRP or metallic wire provide desire tension.

Embedded strength member provide desirable tensile strength.
Compact, easy to install.
UV and moisture-resistant design


PRODUCT DESCRIPTION
ADSS cable has loose tube stranded. 250μm Fibers are positioned into a loose tube made of high modulus plastics.These loose tubes are filled in the water-resistant oil jelly. The tubes (and fillers) are stranded around the Fiber Reinforced Plastic as the non-metallic central strength member . After the cable core is filled with filling compound. After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.

Characteristics
1. Small cable diameter, light weight, 100m span, low attached load on tower
2. Tensile strength is over 90KN
3. The following measures are taken to ensure the cable watertight:
4. Single Fiber Reinforced Plastic as the central strength member
5. Loose tube filling compound
6. 100% cable core filling

Application
1. Long distance communication and local area network, especially suitable for long span environment,complex area.
2. Erect on the same pole with power line in new and old power line.

Fiber Parameters

Category Description Specifications
G.652D
Optical Specifications Attenuation @1310nm ≤0.36dB/km
@1550nm ≤0.22dB/km
Attenuation discontinuity ≤0.05 dB
Attenuation vs. Wavelength @1285~1330nm ≤0.05 dB/km
@1525~1575nm ≤0.05 dB/km
Zero Dispersion Wavelength 1300~1324nm
Zero Dispersion Slope ≤0.092ps/(nm2.km)
Dispersion @1310nm ≤3.5 ps/nm.km
@1550nm ≤18 ps/nm.km
Polarization Mode Dispersion(PMD) ≤0.2ps/km1/2
Cable Cutoff Wavelength(λcc) ≤1260nm
Effective Group Index of Refraction @1310nm 1.4675
@1550nm 1.4681
Macro bend loss (30mm radius,100turns) 1625nm ≤0.1 dB
Geometric
Specifications
Mode Field Diameter @1310nm 9.2±0.6μm
@1550nm 10.4±0.8μm
Cladding Diameter 125±1μm
Cladding Non-Circularity ≤1.0%
Coating Diameter 245±7μm
Coating/Cladding Concentricity Error ≤8μm
Core/Cladding Concentricity Error ≤0.8μm
Mechanical
Specifications
Proof Test level ≥1.0%
Fiber Curl Radius ≥4.0m
Peak Coating Strip Force 1.3~8.9N



FAQ
1. Are you the real manufacturer?
Yes. We are the real manufacturer with 18 years' history.

2. What is your fiber brand ?
Corning, SEI, YOFC, FiberHome, etc

3. Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.

4.What is your warranty period?
25 years for fiber optic cable

5. Which kind of certification you have ?
ISO9001, SGS, 3C Anatel.

6. What is your delivery time?
Usually within 2-3 working days

7. What about your annual production capacity?
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.

8. What is your payment way?
T/T, L/C, Western Union and Paypal.

9. Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.

10. Can you supply your cable test value form?
-Yes. After finishing production , we can supply if you ask.

11. Do your factory inspect every roll of cables?
-Yes. we factory do 100% inspection per order.

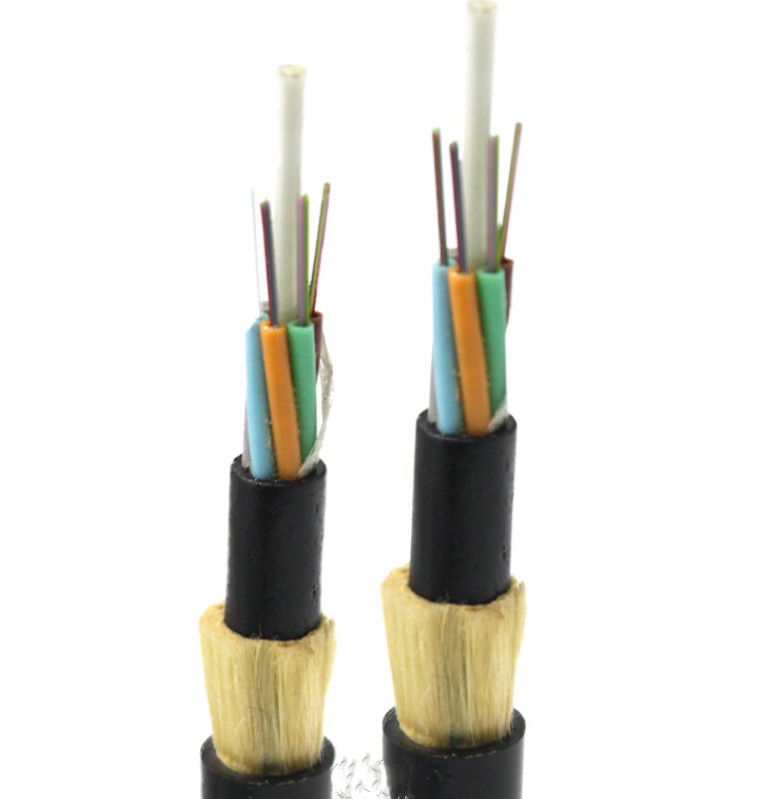

Aramid Yarn Stranded Loose Tube 100m ADSS 24 Core Fiber Optic Cable 0

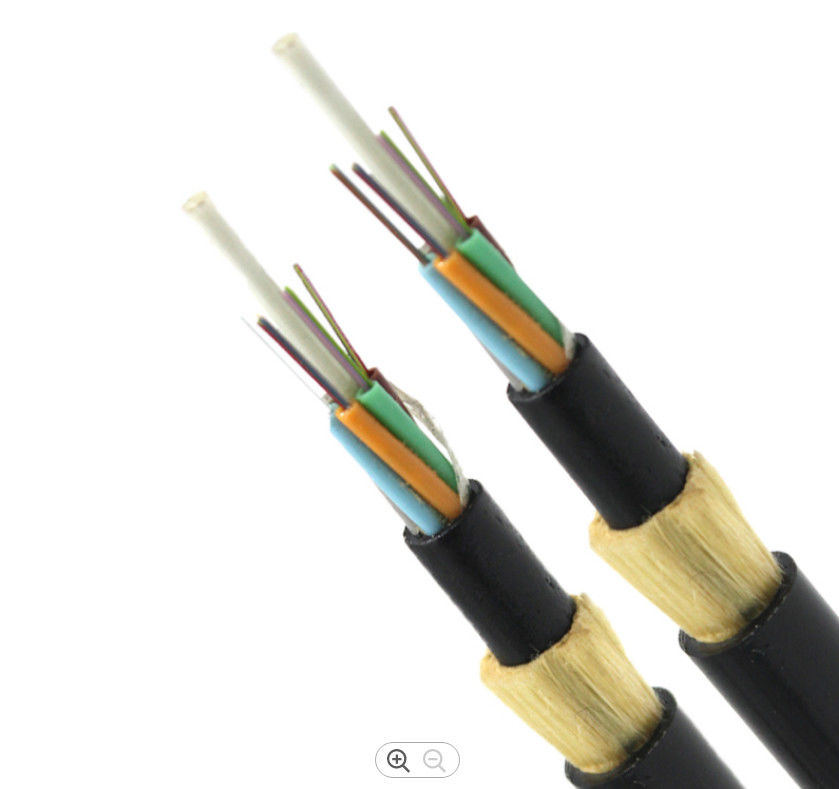

Aramid Yarn Stranded Loose Tube 100m ADSS 24 Core Fiber Optic Cable 1

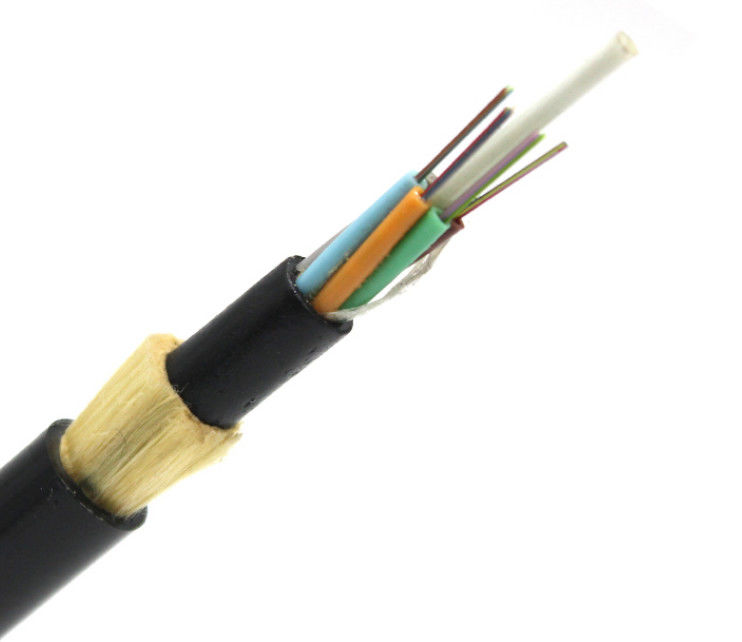

Aramid Yarn Stranded Loose Tube 100m ADSS 24 Core Fiber Optic Cable 2
